A Study on Relationship between Orientation Evolution and Coarsening Behavior of Cu₆Sn₅ Grains Formed on Polycrystalline Cu Substrate

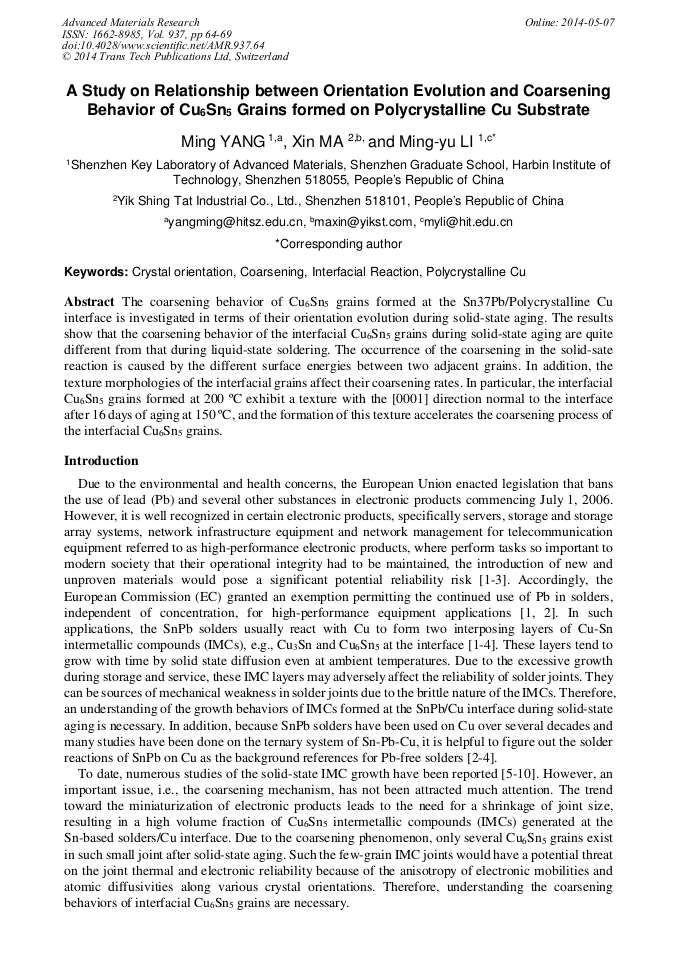

Article Preview

Abstract:

The coarsening behavior of Cu₆Sn₅ grains formed at the Sn37Pb/Polycrystalline Cu interface is investigated in terms of their orientation evolution during solid-state aging. The results show that the coarsening behavior of the interfacial Cu₆Sn₅ grains during solid-state aging are quite different from that during liquid-state soldering. The occurrence of the coarsening in the solid-sate reaction is caused by the different surface energies between two adjacent grains. In addition, the texture morphologies of the interfacial grains affect their coarsening rates. In particular, the interfacial Cu₆Sn₅ grains formed at 200 oC exhibit a texture with the [0001] direction normal to the interface after 16 days of aging at 150 oC, and the formation of this texture accelerates the coarsening process of the interfacial Cu₆Sn₅ grains.

You might also be interested in these eBooks

Material Science and Environmental Engineering

Info:

Periodical:

Advanced Materials Research (Volume 937)

Pages:

64-69

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.937.64

Citation:

Cite this paper

Online since:

May 2014

Authors:

Ming Yang, Xin Ma, Ming Yu Li*

Keywords:

Coarsening, Crystal Orientation, Interfacial Reaction, Polycrystalline Cu

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] K.J. Puttlitz, G.T. Galyon, Impact of the ROHS Directive on High-Performance Electronic Systems , J. Electron. Mater. 18 (2007) 331-346.

DOI: 10.1007/s10854-006-9023-5

[2] K.N. Tu, Solder Joint Technology Materials, Properties and Reliability, seconded., Springer, New York, (2007).

[3] K.N. Tu, K. Zheng, Six Cases of Reliability Study of Pb-free Solder Joints in Electronic Packaging Technology, Mater. Sci. Eng. R. 34 (2001) 1-58.

[4] T. Tian, K. Chen, A.A. Macdowell, D. Parkinson, Y.S. Lai, K.N. Tu. Quantitative X-ray microtomography study of 3-D void growth induced by electromigration in eutectic SnPb flip-chip solder joints, Scripta Mater. 65 (2011) 646-649.

DOI: 10.1016/j.scriptamat.2011.07.002

[5] K.N. Tu, T.Y. Lee, J.W. Jang, L. Li, D.R. Frear, K. Zeng, Wetting reaction versus solid state aging of eutectic SnPb on Cu, J. Appl. Phy. 89 (2001) 4843-4849.

DOI: 10.1063/1.1357469

[6] T.Y. Lee, W.J. Choi, K.N. Tu, J.W. Jang, S.M. Kuo, Morphology, Kinetics, and Thermodynamics of Solid-State Aging of Eutectic SnPb and Pb-Free Solders (Sn-3. 5Ag, Sn-3. 8Ag-0. 7Cu and Sn-0. 7Cu) on Cu, J. Mater. Res. 17 (2002) 291-301.

DOI: 10.1557/jmr.2002.0042

[7] D. Yao, J.K. Shang, Effect of aging on fatigue crack growth at Sn-Pb/Cu interfaces, Metal. Mater. Metal. Trans. A 26 (1995) 2677-2685.

DOI: 10.1007/bf02669424

[8] J.W. Yoon, J.H. Lim, H.J. Lee, J. Joo, S.B. Jung, Interfacial Reactions and Joint Strength of Sn-37Pb and Sn-3. 5Ag Solders with Immersion Ag-plated Cu Substrate during Aging at 150ºC, J. Mater. Res. 21 (2006) 3196-3204.

DOI: 10.1557/jmr.2006.0390

[9] M. Yang, M. Li, L. Wang, Growth behavior of Cu6Sn5 grains formed at an Sn3. 5Ag/Cu interface, Mater. Lett. 65 (2011) 1506-1509.

DOI: 10.1016/j.matlet.2011.02.056

[10] H.F. Zou, H.J. Yang, Z.F. Zhang, A Study on the Orientation Relationship Between the Scallop-Type Cu6Sn5 Grains and (011) Cu Substrate Using Electron Backscattered Diffraction. Journal of Applied Physics, 106 (2009) 113512.

DOI: 10.1063/1.3266144

[11] M. Yang, M. Li, C.Q. Wang, Interfacial reactions of eutectic Sn3. 5Ag and pure tin solders with Cu substrates during liquid-state soldering, Intermetallics 25 (2012) 86-94.

DOI: 10.1016/j.intermet.2012.02.023

[12] J.O. Suh, K.N. Tu, G.V. Lutsenko, A.M. Gusak, Size distribution and morphology of Cu6Sn5 scallops in wetting reaction between molten solder and copper, Acta Mater. 56 (2008) 1075-1083.

DOI: 10.1016/j.actamat.2007.11.009

[13] A.M. Gusak, K.N. Tu, Kinetic Theory of Flux-Driven Ripening, Phys. Rev. B 66 (2002) 115403.

[14] D. Feng, (1990) Metal physics (Volume 2) The phase transition, firsted. Science Press, Beijing, (1990).

[15] M. Hillert, On the Theory of Normal and Abnormal Grain Growth, Acta Metall. 13 (1965) 227-238.

DOI: 10.1016/0001-6160(65)90200-2

[16] J.E. Bruke, D. Turnbull, Recrystallization and grain growth, Progr. Met. Phys. 3 (1952) 220-292.
