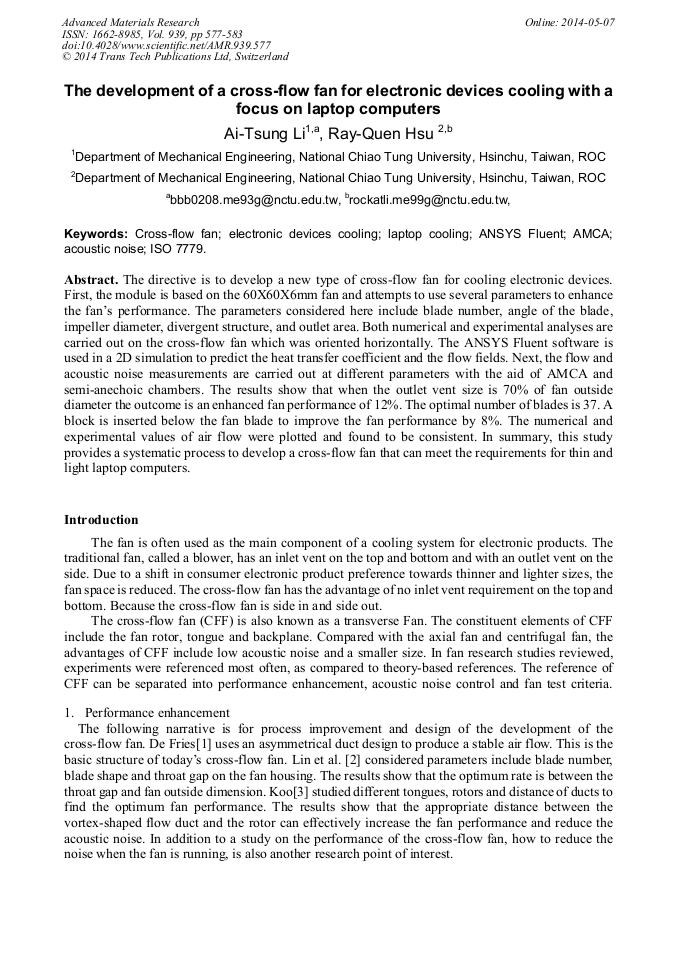

The Development of a Cross-Flow Fan for Electronic Devices Cooling with a Focus on Laptop Computers

Abstract:

The directive is to develop a new type of cross-flow fan for cooling electronic devices. First, the module is based on the 60X60X6mm fan and attempts to use several parameters to enhance the fan’s performance. The parameters considered here include blade number, angle of the blade, impeller diameter, divergent structure, and outlet area. Both numerical and experimental analyses are carried out on the cross-flow fan which was oriented horizontally. The ANSYS Fluent software is used in a 2D simulation to predict the heat transfer coefficient and the flow fields. Next, the flow and acoustic noise measurements are carried out at different parameters with the aid of AMCA and semi-anechoic chambers. The results show that when the outlet vent size is 70% of fan outside diameter the outcome is an enhanced fan performance of 12%. The optimal number of blades is 37. A block is inserted below the fan blade to improve the fan performance by 8%. The numerical and experimental values of air flow were plotted and found to be consistent. In summary, this study provides a systematic process to develop a cross-flow fan that can meet the requirements for thin and light laptop computers.

• Periodical: Advanced Materials Research (Volume 939)
• Pages: 577-583
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.939.577
• Online since: May 2014
• Authors: Ai Tsung Li*, Ray Quen Hsu
• Keywords: Acoustic Noise, AMCA, ANSYS FLUENT, Cross-Flow Fan, Electronic Devices Cooling, ISO 7779, Laptop Cooling

References

[1] De Fries, J.R., 66 years of cross-flow fans, VDI-Berichte, (1959).

[2] Sheam-Chyun Lin, Fu-Sheng Chuang, Ji-Da shieh, Min-Lun Tsai, Wen-Lian Chen and Chien-An Chou, Cross-flow cooling fan applied on notebook computers, ISTP-16, (2005).

[3] Koo, H. M., An Experimental Study of The Performance of Cross-Flow Fans in Room Air-Conditioning Systems, Institute of Noise Control Engineering, Vol. 48, No. 2, pp.41-47, (2000).

DOI: 10.3397/1.2827973

[4] Neise, W., Application of Similarity Laws to the Blade Passage Sound of Centrifugal Fans, Journal of Sound and Vibration, Vol. 43, No. 1, pp.61-75, (1975).

DOI: 10.1016/0022-460x(75)90205-9

[5] Leidel, W., Einfluss Von Zungenabstand and Zungenradius auf Kennlinie und Gerausch eines Radial Ventilators, Vol. 24, pp.61-69, (1969).

[6] ANSI/AMCA standard 201-99 Laboratory method of testing Fans for Aerodynamic performance Rating. Air Movement and Control Association, Inc, (1999).
