Runner Balance Design of Soap Box Compounding Cavity Based on Moldflow

Abstract:

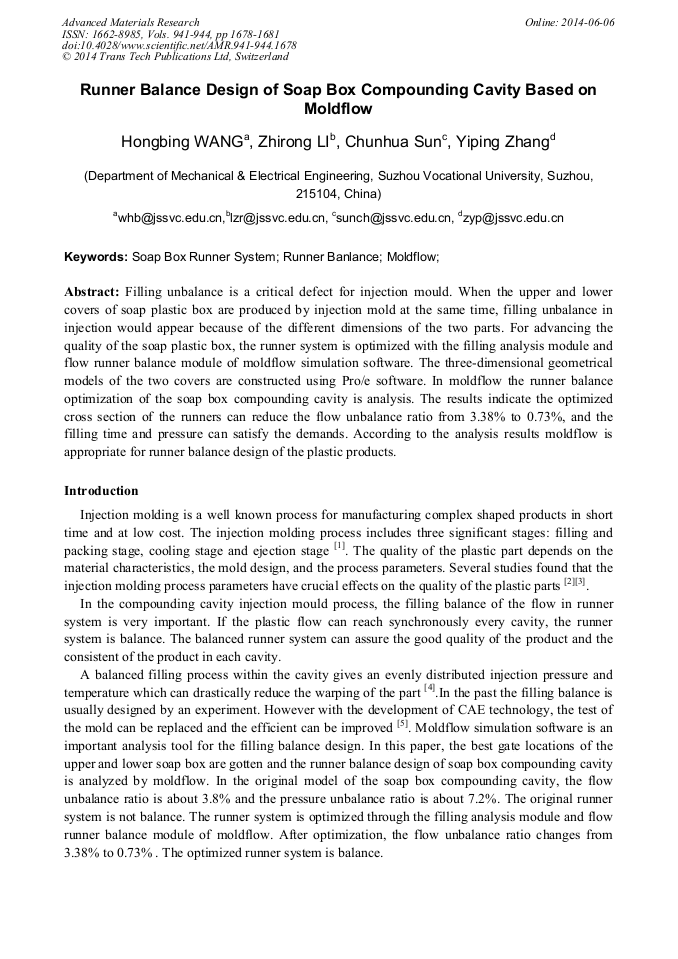

Filling unbalance is a critical defect for injection mould. When the upper and lower covers of soap plastic box are produced by injection mold at the same time, filling unbalance in injection would appear because of the different dimensions of the two parts. For advancing the quality of the soap plastic box, the runner system is optimized with the filling analysis module and flow runner balance module of moldflow simulation software. The three-dimensional geometrical models of the two covers are constructed using Pro/e software. In moldflow the runner balance optimization of the soap box compounding cavity is analysis. The results indicate the optimized cross section of the runners can reduce the flow unbalance ratio from 3.38% to 0.73%, and the filling time and pressure can satisfy the demands. According to the analysis results moldflow is appropriate for runner balance design of the plastic products.
