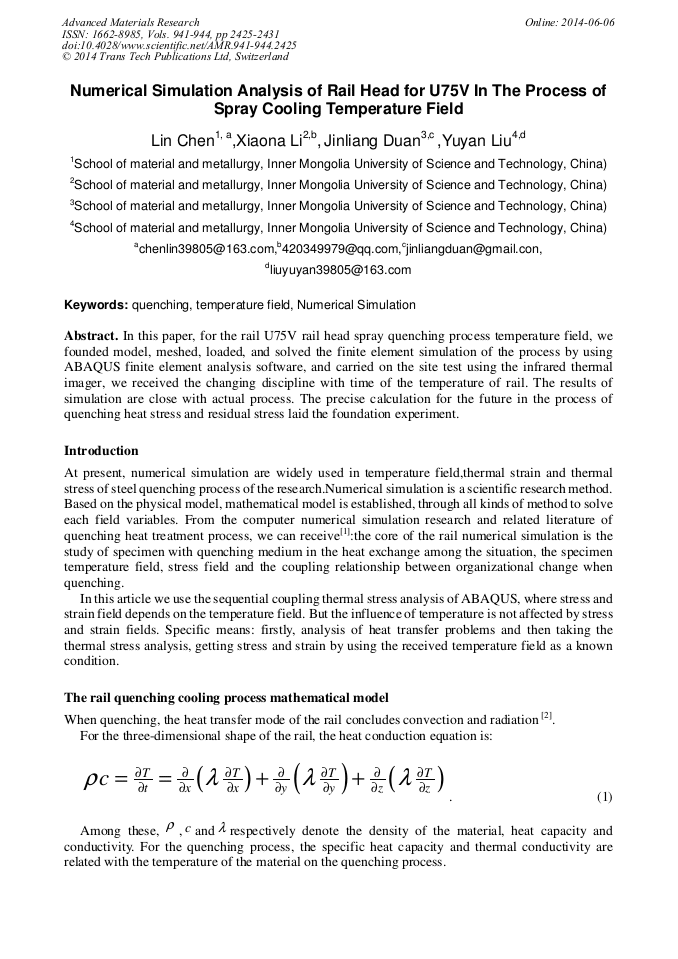

Numerical Simulation Analysis of Rail Head for U75V in the Process of Spray Cooling Temperature Field

Abstract:

In this paper, for the rail U75V rail head spray quenching process temperature field, we founded model, meshed, loaded, and solved the finite element simulation of the process by using ABAQUS finite element analysis software, and carried on the site test using the infrared thermal imager, we received the changing discipline with time of the temperature of rail. The results of simulation are close with actual process. The precise calculation for the future in the process of quenching heat stress and residual stress laid the foundation experiment.

• Periodical: Advanced Materials Research (Volumes 941-944)
• Pages: 2425-2431
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.941-944.2425
• Online since: June 2014
• Authors: Lin Chen, Xiao Na Li, Jin Liang Duan, Yu Yan Liu
• Keywords: Numerical Simulation, Quenching, Temperature Field

References

[1] Xian Ma. Advances in Numerical Simulation of Quenching Process, Ordnance Material Science and Engineering, 1999, (3)59-63[in Cinese].

[2] Zhennan Zhao. Heat transfer. Beijing: Higher Education Press, 2002[in Cinese].

[3] Yiping Shi, Yurong Zhou. Detailed examples of ABAQUS finite element analysis, Machinery Industry Press, 2006[in Cinese].

[4] Tenglun Zhao. ABAQUS application in mechanical engineering, China Water Power Press, 2007[in Cinese].

[5] Zhen Tan, Wenguang Guo. Thermal properties of engineering alloys, Beijing: Metallurgical Industry Press, 1994[in Cinese].
