The Research of the Effect of Velocity on Coupled Temperature Filed in Pin-on-Ring Friction Pair under Electromagnetic Field

Abstract:

Based on the pin-on-ring friction pair jig, the temperature field model was established by FE software ANSYS under the coupled effect of electromagnetic induction heat and friction heat. The coupled temperature field distribution and variation rule of the analysis model were simulated and analyzed under different electromagnetic induction frequency and velocity. The results show that when the rotation angle, stress and electromagnetic induction frequency are constant, the maximum coupled temperature increases linearly with the increment of velocity, and the area of pin temperature gradients narrowed with the increasing velocity; the maximum coupled temperature rises with the increasing electromagnetic induction frequency under the constant rotation angle, stress and velocity. The research will provide FE simulation basis for the controlling of friction and wear by electromagnetic field.

You might also be interested in these eBooks

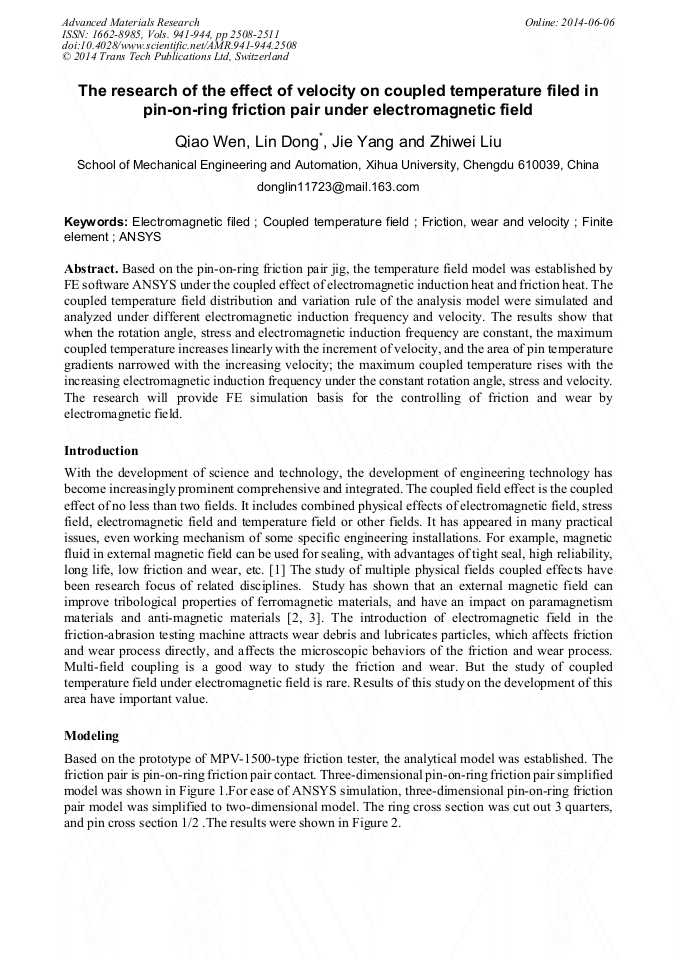

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 941-944)

Pages:

2508-2511

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.941-944.2508

Citation:

Cite this paper

Online since:

June 2014

Authors:

Qiao Wen, Lin Dong*, Jie Yang, Zhei Wei Liu

Keywords:

ANSYS, Coupled Temperature Field, Electromagnetic Filed, Finite Element, Friction, Wear and Velocity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Linsheng Yuan, Ling Gao: Magnetic fluid seal technology. Electro-Mechanical Engineering, 27(3) (2011), p.53 (In Chinese).

Google Scholar

[2] M. K. Muju, A . Radhakrishna: Wear of non-magnetic materials in the presence of a magnetic field. Wear, 58(1) (1980), p.49.

DOI: 10.1016/0043-1648(80)90212-4

Google Scholar

[3] Hiratsuka and Sasada: Wear of metals in magnetic field. Wear, 160(1) (1993), p.119.

DOI: 10.1016/0043-1648(93)90412-f

Google Scholar

[4] Huiping Jiang, Lin Dong: FE simulation research of temperature field couple under contact resistor-friction thermal between third rail and collector shoe. Lubrication Engineering, 35(1) (2010), p.45) (In Chinese).

Google Scholar

[5] Hoff. H.G. Schneider: Electrical contact (China Machine Press, Beijing 1988) (In Chinese).

Google Scholar
