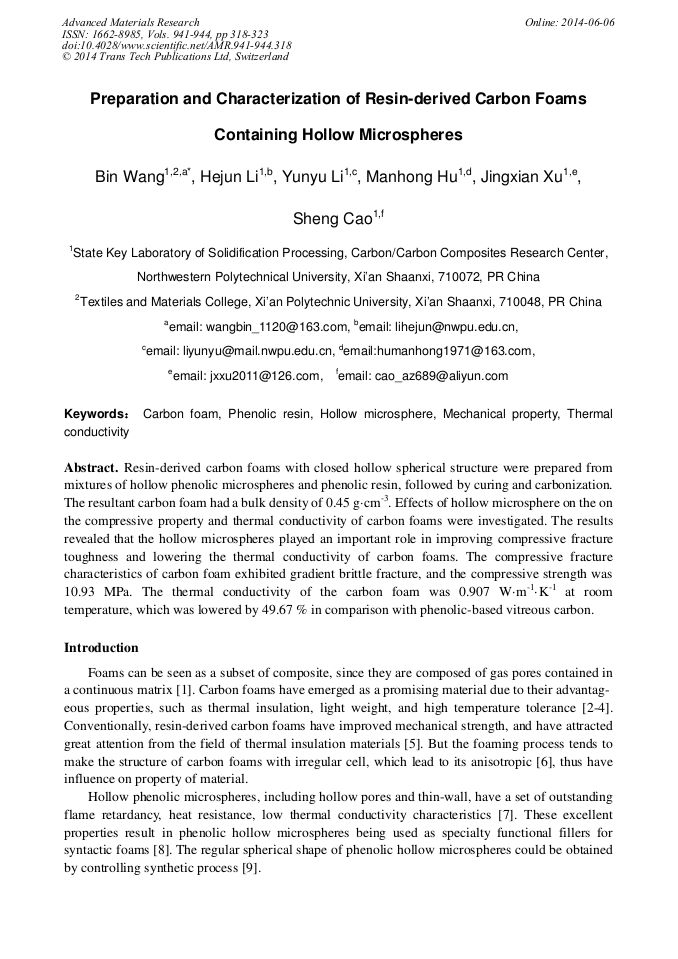

Preparation and Characterization of Resin-Derived Carbon Foams Containing Hollow Microspheres

Abstract:

Resin-derived carbon foams with closed hollow spherical structure were prepared from mixtures of hollow phenolic microspheres and phenolic resin, followed by curing and carbonization. The resultant carbon foam had a bulk density of 0.45 g·cm^-3. Effects of hollow microsphere on the on the compressive property and thermal conductivity of carbon foams were investigated. The results revealed that the hollow microspheres played an important role in improving compressive fracture toughness and lowering the thermal conductivity of carbon foams. The compressive fracture characteristics of carbon foam exhibited gradient brittle fracture, and the compressive strength was 10.93 MPa. The thermal conductivity of the carbon foam was 0.907 W·m^-1·K^-1 at room temperature, which was lowered by 49.67 % in comparison with phenolic-based vitreous carbon.

• Periodical: Advanced Materials Research (Volumes 941-944)
• Pages: 318-323
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.941-944.318
• Online since: June 2014
• Authors: Bin Wang*, He Jun Li, Yun Yu Li, Man Hong Hu, Jing Xian Xu, Sheng Cao
• Keywords: Carbon Foam, Hollow Microsphere, Mechanical Property, Phenolic Resin

References

[1] A.M. Druma, M.K. Alam and C. Druma, Analysis of thermal conduction in carbon foams, Int. J. Therm. Sci. 43 (2004) 689-695.

DOI: 10.1016/j.ijthermalsci.2003.12.004

[2] X. Wang, J. Zhong, Y. Wang and M. Yu, A study of the properties of carbon foam reinforced by clay, Carbon. 44 (2006) 1560-1564.

DOI: 10.1016/j.carbon.2005.12.025

[3] N.C. Gallego, J.W. Klett, Carbon foams for thermal management, Carbon. 41 (2003) 1461-1466.

DOI: 10.1016/s0008-6223(03)00091-5

[4] H. Shen, S. Nutt, Mechanical characterization of short fiber reinforced phenolic foam, Composites A. 34 (2003) 899-906.

DOI: 10.1016/s1359-835x(03)00136-2

[5] M. Liu, L. Gan and F. Zhao, Carbon foams with high compressive strength derived from polyarylacetylene resin, Carbon. 45 (2007) 3055-3057.

DOI: 10.1016/j.carbon.2007.10.003

[6] S. Lei, Q. Guo and J. Shi, Study on the heat treatment process of phenolic foam precursor, Journal of Materials Engineering. (2007) 216-220. (In Chinese).

[7] E. M. Wouterson, F. Y. C Boey and X. Hu, Effect of fiber reinforcement on the tensile, fracture and thermal properties of syntactic foam, Polymer. 48 (2007) 3183-3191.

DOI: 10.1016/j.polymer.2007.03.069

[8] E. Bruneton, C. Tallaron, N. Gras-Naulin and A. Cosculluela, Evolution of the structure and mechanical behaviour of a carbon foam at very high temperatures, Carbon. 40 (2002) 1919-(1927).

DOI: 10.1016/s0008-6223(02)00003-9

[9] Y.W. Zhang, M. Jiang, J. X. Zhao and J. Y. Wang, Preparation of thermo-sensitive core-shell polymeric nanospheres via in situ, polymerization method, Acta Polym Sinica. (2007) 136 -143. (In Chinese).

[10] C. D. Liang and S. Dai, Synthesis of mesoporous carbon materials via enhanced hydrogen-bonding interaction, J. Am. Chem. Soc. 128 (2006) 5316-5317.

DOI: 10.1021/ja060242k

[11] Z. H. Min, M. Cao and S. Zhang, Effect of precursor on the pore structure of carbon foams, New Carbon Materials. 22 (2007) 75-79.

DOI: 10.1016/s1872-5805(07)60009-2

[12] R. Y. Luo,Y. F. Ni and J. S. Li, The mechanical and thermal insulating properties of resin-derived carbon foams reinforced by K2Ti6O13 whiskers, Mater. Sci. Eng. A. 528 (2011) 2023-(2027).

DOI: 10.1016/j.msea.2010.10.106

[13] L. Y. Zhang, J. Ma, Effect of coupling agent on mechanical properties of hollow carbonmicrosphere/phenolic resin syntactic foam, Compos. Sci. Technol. 70 (2010) 1265-1271.

DOI: 10.1016/j.compscitech.2010.03.016

[14] E. M. Wouterson, F. Boey and X. Hu, Specific properties and fracture toughness of syntactic foam: Effect of foam microstructures, Compos. Sci. Technol. 65 (2005) 1840-1850.

DOI: 10.1016/j.compscitech.2005.03.012

[15] N. Gupta, R. Maharsia, Enhancement of Energy Absorption in Syntactic Foams by Nanoclay Incorporation for Sandwich Core Applications, Appl. Compos. Mater. 12 (2005) 247-261.

DOI: 10.1007/s10443-005-1130-6

[16] B. Wang, H.J. Li and L.J. Guo, Preparation and properties of precursor of phenolic-based carbon foams, Journal of Solid Rocket Technology. 37 (2014) 113-117. (In Chinese).

[17] A. Celzard, W. Zhao and A. Pizzi, Mechanical properties of tannin-based rigid foams under-going compression, Mater. Sci. Eng. A. 527 (2010) 4438-4446.

DOI: 10.1016/j.msea.2010.03.091

[18] X. W. Wu, M. H. Fang and L. F. Mei, Effect of final pyrolysis temperature on the mechanical and thermal properties of carbon foams reinforced by aluminosilicate, Mater. Sci. Eng. A. 558 (2012) 446-450.

DOI: 10.1016/j.msea.2012.08.025
