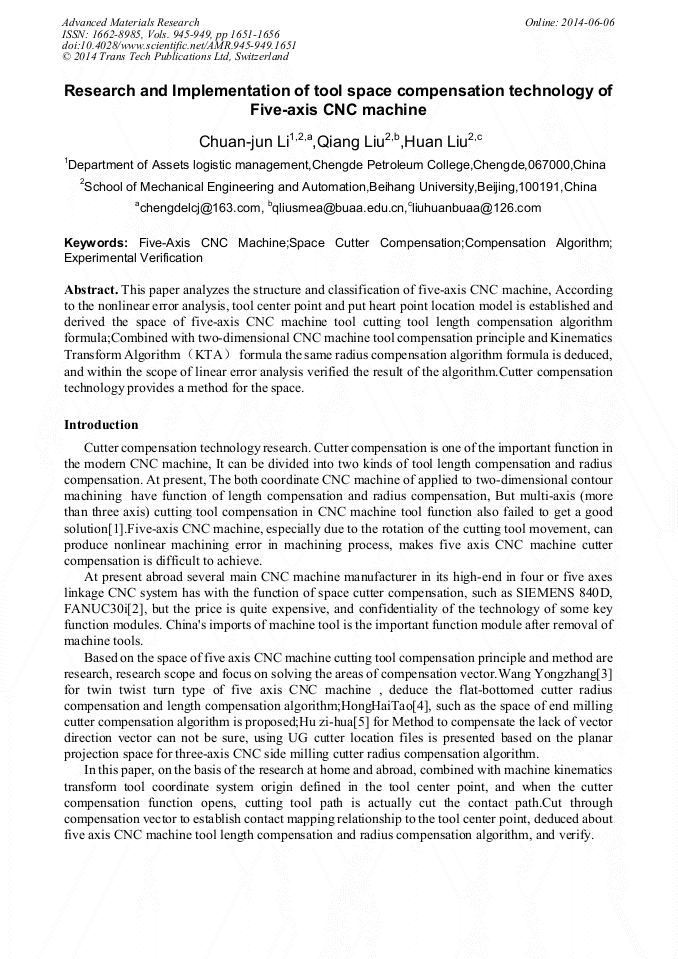

Research and Implementation of Tool Space Compensation Technology of Five Axis CNC Machine

Abstract:

This paper analyzes the structure and classification of five-axis CNC machine, According to the nonlinear error analysis, tool center point and put heart point location model is established and derived the space of five-axis CNC machine tool cutting tool length compensation algorithm formula;Combined with two-dimensional CNC machine tool compensation principle and Kinematics Transform Algorithm (KTA) formula the same radius compensation algorithm formula is deduced, and within the scope of linear error analysis verified the result of the algorithm.Cutter compensation technology provides a method for the space.
