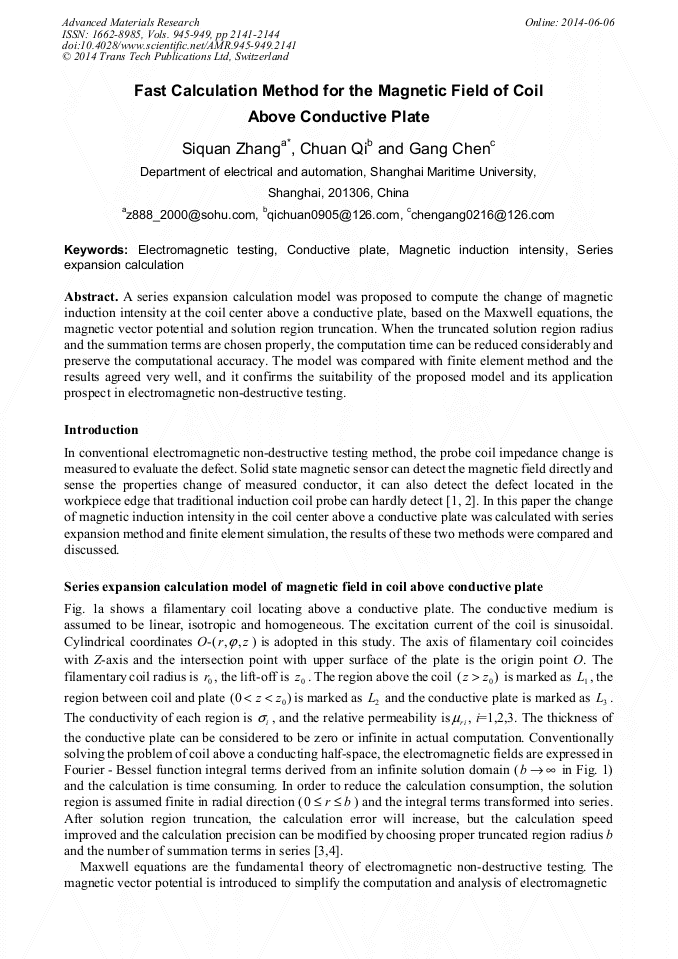

Fast Calculation Method for the Magnetic Field of Coil above Conductive Plate

Abstract:

A series expansion calculation model was proposed to compute the change of magnetic induction intensity at the coil center above a conductive plate, based on the Maxwell equations, the magnetic vector potential and solution region truncation. When the truncated solution region radius and the summation terms are chosen properly, the computation time can be reduced considerably and preserve the computational accuracy. The model was compared with finite element method and the results agreed very well, and it confirms the suitability of the proposed model and its application prospect in electromagnetic non-destructive testing.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 2141-2144
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.2141
• Online since: June 2014
• Authors: Si Quan Zhang*, Chuan Qi, Gang Chen
• Keywords: Conductive Plate, Electromagnetic Testing, Magnetic Induction Intensity, Series Expansion Calculation

References

[1] Guohou Li, Pingjie Huang, Peihua Chen, et al, International Journal of Applied Electromagnetics and Mechanics. 33 (2010) 1273-1278. (In Chinese).

[2] Capova K, Cap I, Janousek L, et al, Advances in Electrical and Electronic Engineering. 7 (2011) 322-325.

[3] Theodoulidis T, Kriezis E, Journal of Materials Processing Technology. 161 (2005) 343-347.

[4] Theodoulidis T, Poulakis N, Dragogias A, NDT&E International, 43 (2010) 13-19.

[5] Dodd C V, Deeds W E, Journal of applied physics. 39 (1968) 2829-2838.

[6] Luquire J W, Deeds W E, Dodd C V, Journal of Applied Physics. (1970) 3983-3991.
