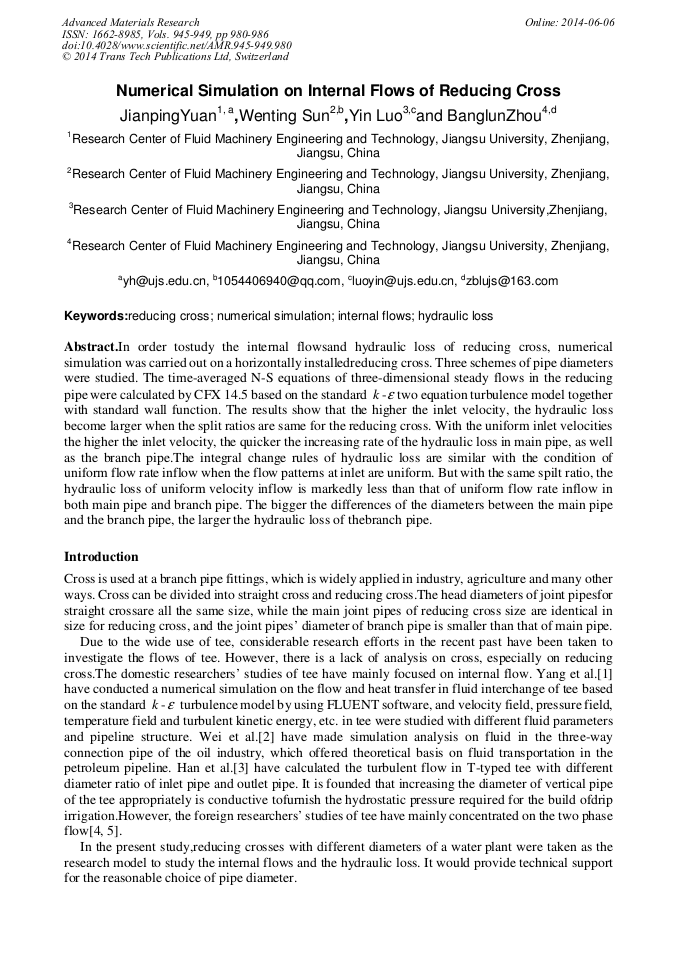

Numerical Simulation on Internal Flows of Reducing Cross

Abstract:

In order to study the internal flows and hydraulic loss of reducing cross, numerical simulation was carried out on a horizontally installed reducing cross. Three schemes of pipe diameters were studied. The time-averaged N-S equations of three-dimensional steady flows in the reducing pipe were calculated by CFX 14.5 based on the standard - two equation turbulence model together with standard wall function. The results show that the higher the inlet velocity, the hydraulic loss become larger when the split ratios are same for the reducing cross. With the uniform inlet velocities the higher the inlet velocity, the quicker the increasing rate of the hydraulic loss in main pipe, as well as the branch pipe. The integral change rules of hydraulic loss are similar with the condition of uniform flow rate inflow when the flow patterns at inlet are uniform. But with the same spilt ratio, the hydraulic loss of uniform velocity inflow is markedly less than that of uniform flow rate inflow in both main pipe and branch pipe. The bigger the differences of the diameters between the main pipe and the branch pipe, the larger the hydraulic loss of the branch pipe.

You might also be interested in these eBooks

Advances in Manufacturing Science and Engineering V

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 945-949)

Pages:

980-986

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.945-949.980

Citation:

Cite this paper

Online since:

June 2014

Authors:

Jian Ping Yuan*, Wen Ting Sun, Yin Luo, Bang Lun Zhou

Keywords:

Hydraulic Loss, Internal Flows, Numerical Simulation, Reducing Cross

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] K Yang, J P Liu, W B Ma. Numerical simulation of turbulence T-typed tee based on FLUENT software[J]. Chemical Equipment Technology2008, 29(4): 33-36. In Chinese.

Google Scholar

[2] X D Wei, W M Wang, J P Xu. Numerical simulation and analysis of fluid in three-way connection pipe based on Fluent Software [J]. Contemporary Chemical Industry2011, 40(2): 165-167. In Chinese.

Google Scholar

[3] F J Han, X Sun, Y Zhang. Numerical simulation and structure optimization on internal flow field in T-typed Tee[J]. XinjiangWater Resources2010, 4: 1-3. In Chinese.

Google Scholar

[4] C.A. Van Gorp, H.M. Soliman, G.E. Sims. The effect of pressure on two-phase flow dividing at areduced tee junction[J]. International Journal of Multiphase Flow2001, 27: 571-576.

DOI: 10.1016/s0301-9322(00)00032-x

Google Scholar

[5] L.C. Walters, H.M. Soliman, G.E. Sims. Two-phase pressure drop and phase distribution atreduced tee junctions[J]. International Journal of Multiphase Flow1998, 24: 775-792.

DOI: 10.1016/s0301-9322(98)00002-0

Google Scholar
