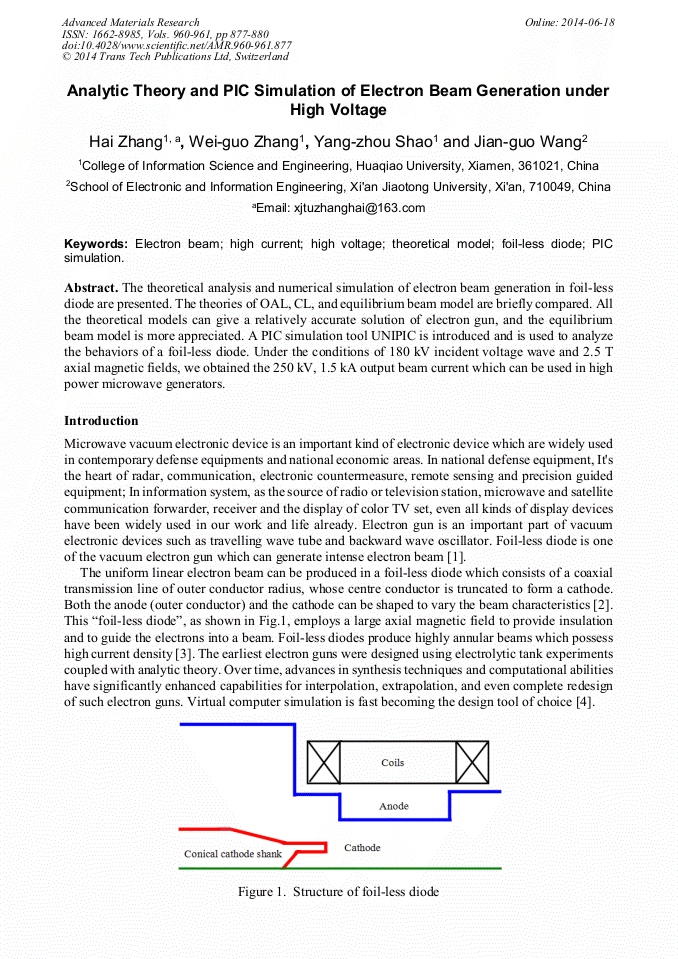

Analytic Theory and PIC Simulation of Electron Beam Generation under High Voltage

Abstract:

The theoretical analysis and numerical simulation of electron beam generation in foil-less diode are presented. The theories of OAL, CL, and equilibrium beam model are briefly compared. All the theoretical models can give a relatively accurate solution of electron gun, and the equilibrium beam model is more appreciated. A PIC simulation tool UNIPIC is introduced and is used to analyze the behaviors of a foil-less diode. Under the conditions of 180 kV incident voltage wave and 2.5 T axial magnetic fields, we obtained the 250 kV, 1.5 kA output beam current which can be used in high power microwave generators.

• Periodical: Advanced Materials Research (Volumes 960-961)
• Pages: 877-880
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.960-961.877
• Online since: June 2014
• Authors: Hai Zhang*, Wei Guo Zhang, Yang Zhou Shao, Jian Guo Wang
• Keywords: Electron Beam, Foil-Less Diode, High Current, High Voltage, PIC Simulation, Theoretical Model
