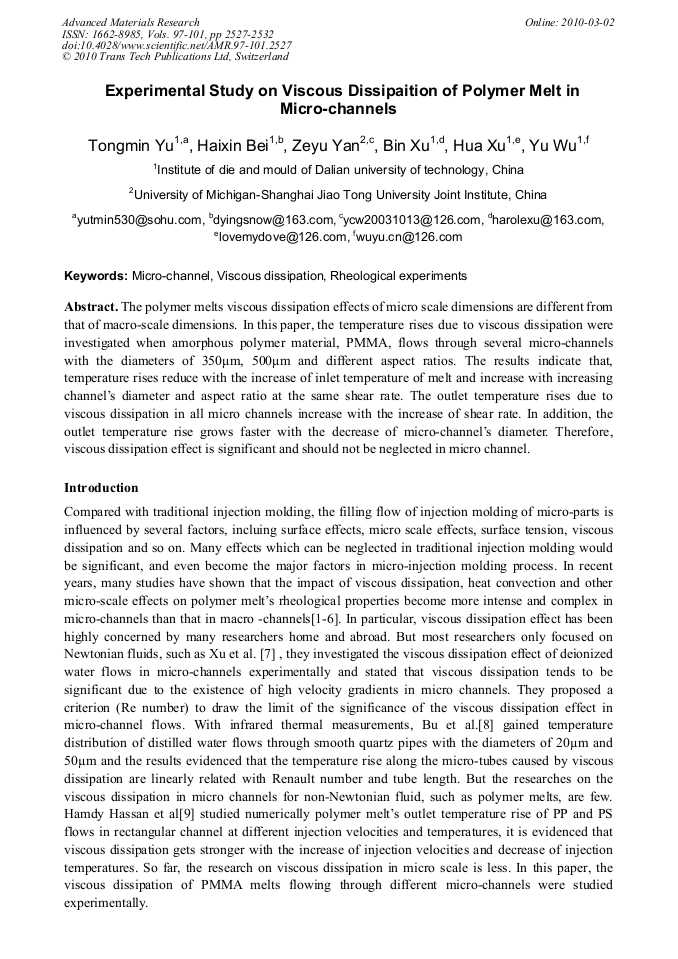

Experimental Study on Viscous Dissipaition of Polymer Melt in Micro-Channels

Abstract:

The polymer melts viscous dissipation effects of micro scale dimensions are different from that of macro-scale dimensions. In this paper, the temperature rises due to viscous dissipation were investigated when amorphous polymer material, PMMA, flows through several micro-channels with the diameters of 350μm, 500μm and different aspect ratios. The results indicate that, temperature rises reduce with the increase of inlet temperature of melt and increase with increasing channel’s diameter and aspect ratio at the same shear rate. The outlet temperature rises due to viscous dissipation in all micro channels increase with the increase of shear rate. In addition, the outlet temperature rise grows faster with the decrease of micro-channel’s diameter. Therefore, viscous dissipation effect is significant and should not be neglected in micro channel.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 97-101)

Pages:

2527-2532

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.97-101.2527

Citation:

Cite this paper

Online since:

March 2010

Authors:

Tong Min Yu, Hai Xin Bei, Ze Yu Yan, Bin Xu, Hua Xu, Yu Wu

Keywords:

Micro-Channel, Rheological Experiment, Viscous Dissipation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Tunc, G., Bayazitoglu, Y.: Heat Mass Transfer, 44, pp.2395-2403.

Google Scholar

[2] Piotter V, Mueller K, Plewa K et al.: Microsystem Technologies, 8(6), 387-390, (2002).

Google Scholar

[3] Yu L Y, Lee L J and Koelling K W: Polym. Eng. Sci, 2004, 44(10): 1866-1876.

Google Scholar

[4] G.L. Morini: Heat Mass Transfer 48 (2005) 3637-3647.

Google Scholar

[5] C. Nonino, S, Del. Giudice and S. Savino: Journal of Heat Transfer, 2007, VOL. 129.

Google Scholar

[6] Dengming: International Journal of Heat and Mass Transfer 52 (2009) 2792-2801.

Google Scholar

[7] B. Xu, K.T. Ooi, C. Mavriplis and M.E. Zaghloul: Model. Simulat. Microsyst. (2002) 100-103.

Google Scholar

[8] Wenfeng Bu, Zhigang Liu and Yaohua Zhao: Journal of Harbin Institute of Technology Vol. 40(2008), p.161.

Google Scholar

[9] Hamdy Hassan, Nicolas Regnier, Cyril Pujos and Guy Defaye: Laboratoire TREFLE, UMR 8508, CNRS, Universite' Bordeaux I, 33607 Pessac, France.

Google Scholar

[10] Chen C. -S. et al.: Eur Poly J (2008), doi: 10. 1016/j. eurpolymj. 2008. 03. 007.

Google Scholar

[11] S.C. Chen *, R.I. Tsai and R.D. Chien: Heat and Mass Transfer 32 (2005) 501-510.

Google Scholar
