Spinnability of Semi-Continuous Casting 7A09 Aluminum Alloy

R.Y. Zhang; S.W. Yu; K.H. Zhang; F.C. Wang

doi:10.4028/www.scientific.net/AMR.97-101.361

Paper Titles

Study on Bending and Upsetting Forging 305 Marine Crankshaft
p.337

Improvement of Hole Flanging Product Forming Process Using Finite Element Simulation
p.344

An Analytical Solution to Metal Plane Problem in Terms of Orthotropic Anisotropy and Strain Hardening
p.348

Numerical Simulation and Experimental Study on the Weld-Line Movement of Tailor-Welded Blank
p.357

Spinnability of Semi-Continuous Casting 7A09 Aluminum Alloy
p.361

Electromagnetic Field Simulation and Experiment of Electromagnetic Forming of Magnesium Alloy Tube
p.365

Key Technology and Development on Side Pattern CAD/CAM on Mould for Auto Lamp
p.370

Hot Deformation and Processing Maps of a High Strength Alloy Steel
p.374

Effect of Process Parameters on Microstructures of 30Mn20Al3 Steel
p.378

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 97-101Spinnability of Semi-Continuous Casting 7A09...

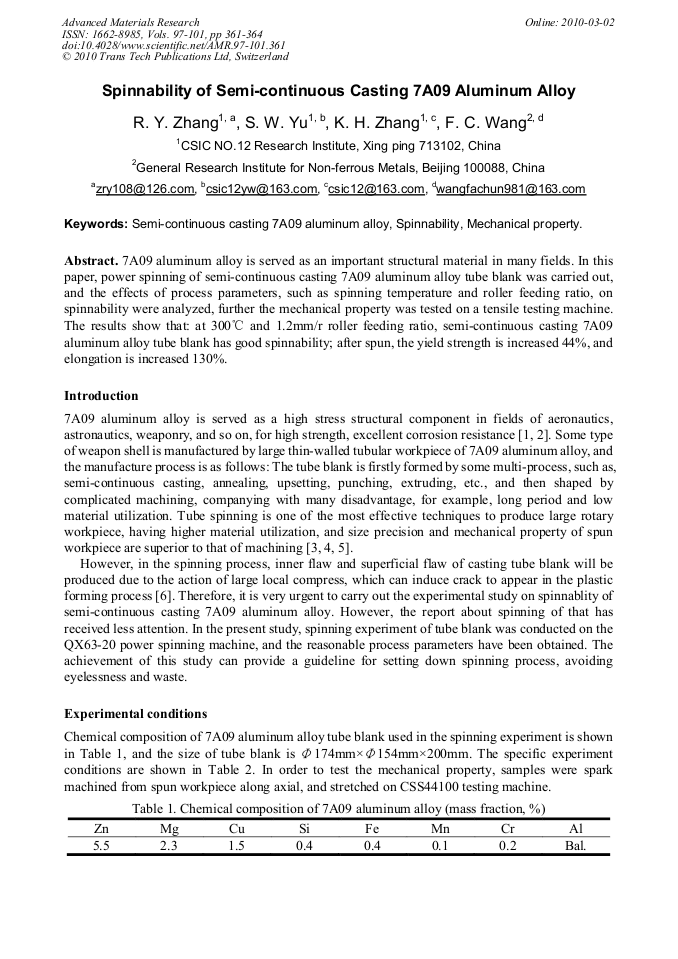

Spinnability of Semi-Continuous Casting 7A09 Aluminum Alloy

Abstract:

7A09 aluminum alloy is served as an important structural material in many fields. In this paper, power spinning of semi-continuous casting 7A09 aluminum alloy tube blank was carried out, and the effects of process parameters, such as spinning temperature and roller feeding ratio, on spinnability were analyzed, further the mechanical property was tested on a tensile testing machine. The results show that: at 300°C and 1.2mm/r roller feeding ratio, semi-continuous casting 7A09 aluminum alloy tube blank has good spinnability; after spun, the yield strength is increased 44%, and elongation is increased 130%.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 97-101)

Pages:

361-364

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.97-101.361

Citation:

Cite this paper

Online since:

March 2010

Authors:

R.Y. Zhang, S.W. Yu, K.H. Zhang, F.C. Wang

Keywords:

Mechanical Property, Semi-Continuous Casting 7A09 Aluminum Alloy, Spinnability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Chinese Aeronautical Materials Handbook committee: China Aeronautical Materials Handbook (�o. 3) (Standards Press of China, Beijing 2001) (in Chinese).

Google Scholar

[2] F. S. Pan, D. F. Zhang: Aluminum Alloy and Application (Chemical Industry Press, Beijing 2006).

Google Scholar

[3] Y. Xu, S. H. Zhang, Y. Lu: J. Mater. Process. Technol. Vol. 113 (2001), p.710.

Google Scholar

[4] C. C. Wong, T. A. Dean, J. Lin: Inter. J. Mach. Tool Manu. Vol. 43 (2003), p.1419.

Google Scholar

[5] S. Kalpakjian, S. Rajagopal: J. Applied Metal Working, Vol. 2(3) (1982), p.211.

Google Scholar

[6] K. I. Mori, M. Ishiguro, Y. Isomura: J. Mater. Process. Technol. Vol. 209 (2009), p.3621.

Google Scholar

[7] H. L. Xu: Power Spinning Technology (National Defense Industry Press of China, Beijing 1984) (in Chinese).

Google Scholar

[8] E. H. Wang: Sci. Technol. Ship (1988), p.47 (in Chinese). Samples UTS(MPa) YS(MPa) YM(GPa) E(%) Casting 7A09 alloy 220 125 72. 7 3. 3 Spun workpiece 255 180 83. 0 7. 6 Spun + heat treatment 610 520 89. 5 7. 9 GB/T3191-1998 ≥530 ≥400 - ≥6.

Google Scholar
