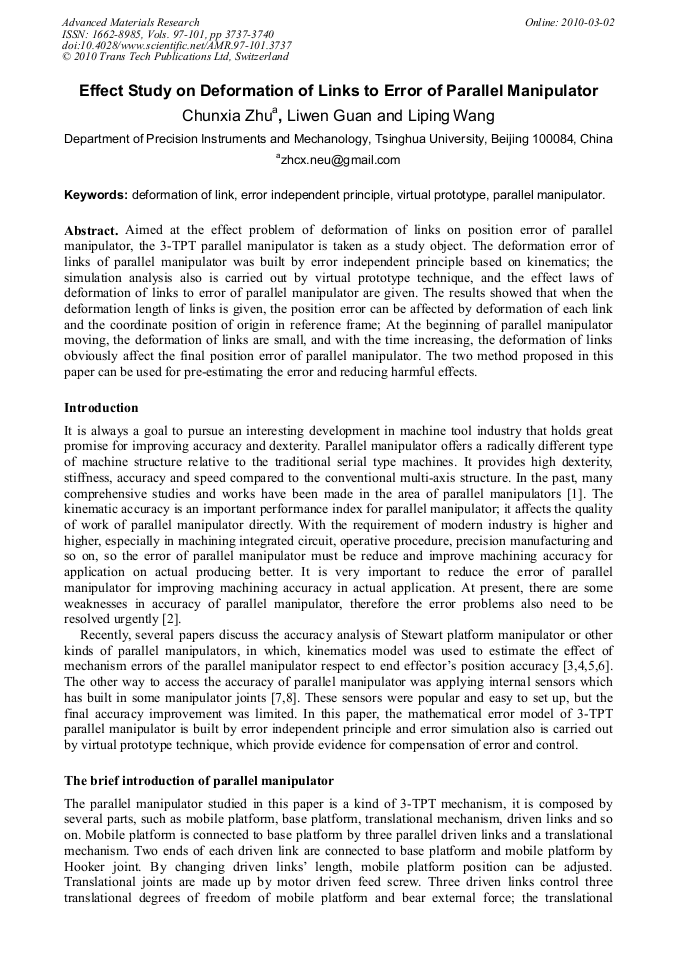

Effect Study on Deformation of Links to Error of Parallel Manipulator

Abstract:

Aimed at the effect problem of deformation of links on position error of parallel manipulator, the 3-TPT parallel manipulator is taken as a study object. The deformation error of links of parallel manipulator was built by error independent principle based on kinematics; the simulation analysis also is carried out by virtual prototype technique, and the effect laws of deformation of links to error of parallel manipulator are given. The results showed that when the deformation length of links is given, the position error can be affected by deformation of each link and the coordinate position of origin in reference frame; At the beginning of parallel manipulator moving, the deformation of links are small, and with the time increasing, the deformation of links obviously affect the final position error of parallel manipulator. The two method proposed in this paper can be used for pre-estimating the error and reducing harmful effects.

• Periodical: Advanced Materials Research (Volumes 97-101)
• Pages: 3737-3740
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.97-101.3737
• Online since: March 2010
• Authors: Chun Xia Zhu, Li Wen Guan, Li Ping Wang
• Keywords: Deformation of Link, Error Independent Principle, Parallel Manipulator, Virtual Prototyping

References

[1] Han S. Kim, Yong J. Choi. Journal of Robotic Systems, Vol. 17(2000), pp.63-73.

[2] Hai Wanga, Kuang-Chao Fan. International Journal of Machine Tools & Manufacture, Vol. 44 (2004), pp.1171-1178.

[3] Y. Koseki, Design and accuracy evaluation of high-speed and high precision parallel mechanism, Proceedings of the IEEE International Conference on Robotics and Automation, Leuven, Belgium, May 16-21, 1998, pp.1340-1345.

DOI: 10.1109/robot.1998.677291

[4] S. Besnard, W. Khalil, Calibration of parallel robots using two inclinometers, Proceedings of the IEEE International Conference on Robotics and Automation, Michigan, USA, 10-15 May, 1999, pp.1758-1763.

DOI: 10.1109/robot.1999.770363

[5] C.W. Wampler, An implicit loop method for kinematics calibration and its application to closed-chain mechanisms, Proceedings of the IEEE International Conference on Robotics and Automation, Nagoya, Japan, 21-27 May, 1995, pp.358-364.

DOI: 10.1109/70.466613

[6] H. Zhuang, Autonomous calibration of hexapod machine tools, Transactions of the ASME Manufacturing Science and Technology 1 (2000), pp.140-148.

[7] K.C. Fan, H. Wang, F.J. Shiou, C.W. Ke, Development of a 3D laser ball bar for the volumetric error measurement of multi-axis machine, Transactions of the NAMRC of SME, Vol. 31(2003), pp.249-256.

[8] K.C. Fan, H. Wang, J.W. Zhao, T.H. Chang. International Journal of Machine Tools and Manufacture, Vol. 43 (15) (2003), pp.1561-1569.

[9] C.X. Zhu, Y.X. Liu, Guang Qi Cai, L.D. Zhu. Applied Mechanics and Materials. Vol. 10-12(1)(2008), p.647－657.
