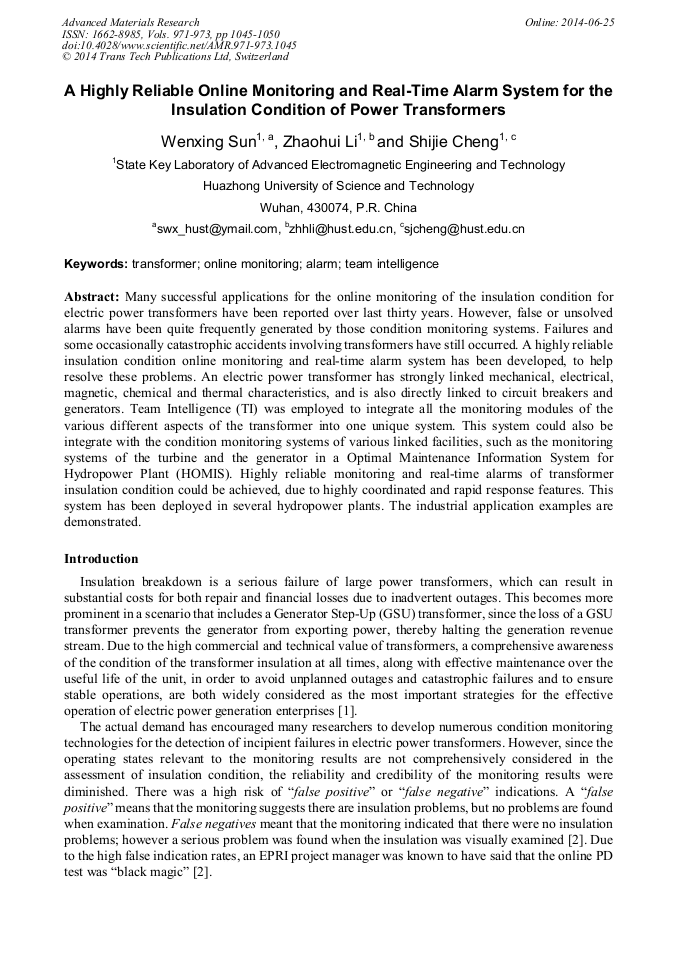

A Highly Reliable Online Monitoring and Real-Time Alarm System for the Insulation Condition of Power Transformers

Abstract:

Many successful applications for the online monitoring of the insulation condition for electric power transformers have been reported over last thirty years. However, false or unsolved alarms have been quite frequently generated by those condition monitoring systems. Failures and some occasionally catastrophic accidents involving transformers have still occurred. A highly reliable insulation condition online monitoring and real-time alarm system has been developed, to help resolve these problems. An electric power transformer has strongly linked mechanical, electrical, magnetic, chemical and thermal characteristics, and is also directly linked to circuit breakers and generators. Team Intelligence (TI) was employed to integrate all the monitoring modules of the various different aspects of the transformer into one unique system. This system could also be integrate with the condition monitoring systems of various linked facilities, such as the monitoring systems of the turbine and the generator in a Optimal Maintenance Information System for Hydropower Plant (HOMIS). Highly reliable monitoring and real-time alarms of transformer insulation condition could be achieved, due to highly coordinated and rapid response features. This system has been deployed in several hydropower plants. The industrial application examples are demonstrated.

• Periodical: Advanced Materials Research (Volumes 971-973)
• Pages: 1045-1050
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.971-973.1045
• Online since: June 2014
• Authors: Wen Xing Sun*, Zhao Hui Li, Shi Jie Cheng
• Keywords: Alarm, Online Monitoring, Team Intelligence, Transformer

References

[1] B.H. Ward, A survey of the new techniques in insulation monitoring of power transfoemers, IEEE Electrical Insulation Magazine, Vol. 17, No. 3, pp.16-23, (2001).

DOI: 10.1109/57.925299

[2] G.C. Stone, A Perspective on Online Partial Discharge Monitoring for Assessment of the Condition of Rotating Machine Stator Winding Insulation, IEEE Electrical Insulation Magazine, Vol. 28, No. 5, pp.8-13, (2012).

DOI: 10.1109/mei.2012.6268437

[3] Martin D. Judd, Li Yang and Ian B.B. Hunter, Partial discharge monitoring for power transformers using UHF sensors Part 2: field experience, IEEE Electrical Insulation Magazine, Vol. 21, No. 3, pp.5-13, (2005).

DOI: 10.1109/mei.2005.1437603

[4] Martin J. Heathcote, the J&P Transformer Book, 13th edition. Elsevier Ltd, (2007).

[5] IEC Publication 60599, March (1999).

[6] Peyraque L, Boisdon C., Static electrification and partial discharges induced by oil flow in power transformers, IEEE Trans . Die. Elect. Insul, Vol. 2, No. 1, pp.40-45, (1995).

DOI: 10.1109/94.368678

[7] Berg G, Lundgaard L E., Discharges in combined transformer oil-paper insulation, IEEE International Conference on Conduction and Breakdown in Dielectric Lqiquds. Nara, Japan: IEEE, 1999: 144-147.

DOI: 10.1109/icdl.1999.798890

[8] Khawaja R H, Blackburn T R., Partial discharge patterns in oil-impregnated paper and pressboard insulation at high temperature, 2008 Austra; asian Universities Power Engineering Conference. Sydney, NSW, Australia: IEEE, 2008: 1-5.

[9] Liu Mingjun, Han Di and Li Zhaohui, Online UHF PD Monitoring for Transformers Under the Integrated Framework of HOMS. High Voltage Engineering, Vol. 8, No. 36, pp.1985-1980, (2010).

[10] Xie Guocai, Study and Applications on the Method for Integrated Monitoring of Hydro Turbine Generator Sets Based on Team Intelligence, Ph.D. dissertation, Huazhong University of Science & Technology, Wuhan, P.R. China, (2012).
