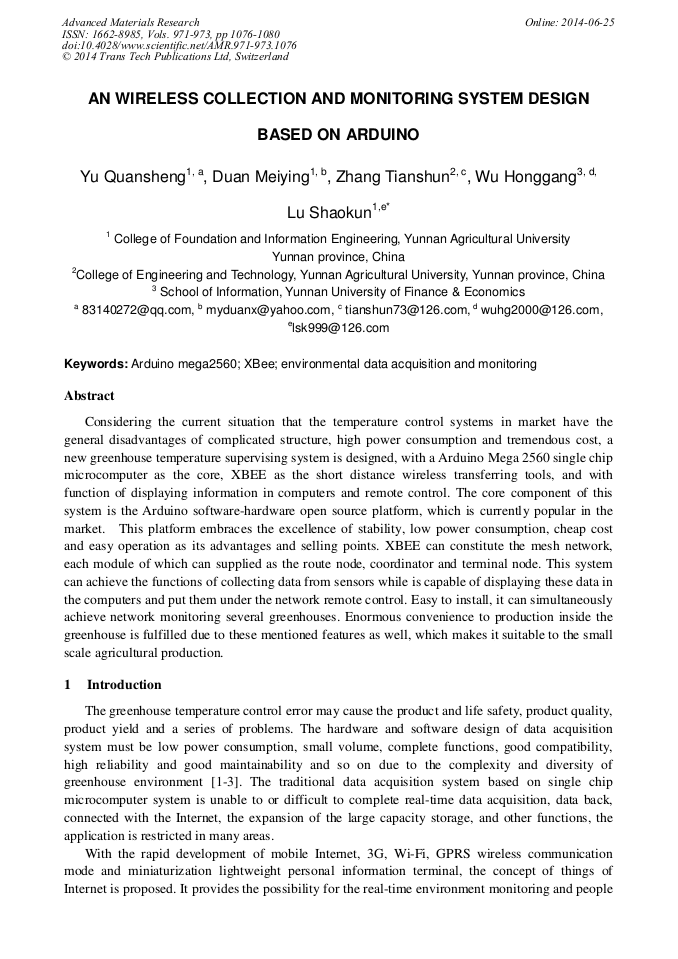

An Wireless Collection and Monitoring System Design Based on Arduino

Abstract:

Considering the current situation that the temperature control systems in market have the general disadvantages of complicated structure, high power consumption and tremendous cost, a new greenhouse temperature supervising system is designed, with a Arduino Mega 2560 single chip microcomputer as the core, XBEE as the short distance wireless transferring tools, and with function of displaying information in computers and remote control. The core component of this system is the Arduino software-hardware open source platform, which is currently popular in the market. This platform embraces the excellence of stability, low power consumption, cheap cost and easy operation as its advantages and selling points. XBEE can constitute the mesh network, each module of which can supplied as the route node, coordinator and terminal node. This system can achieve the functions of collecting data from sensors while is capable of displaying these data in the computers and put them under the network remote control. Easy to install, it can simultaneously achieve network monitoring several greenhouses. Enormous convenience to production inside the greenhouse is fulfilled due to these mentioned features as well, which makes it suitable to the small scale agricultural production.

• Periodical: Advanced Materials Research (Volumes 971-973)
• Pages: 1076-1080
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.971-973.1076
• Online since: June 2014
• Authors: Quan Sheng Yu*, Mei Ying Duan, Tian Shun Zhang, Hong Gang Wu, Shao Kun Lu
• Keywords: Arduino Mega2560, Environmental Data Acquisition, Environmental Data Monitoring, Xbee

References

[1] Titus, J.A. Experiment, 18 - How to Discover basis XBee Modules. 2012: pp.157-181.

DOI: 10.1016/b978-0-12-391404-0.00018-1

[2] Lian, k. s. Hsiao and w. Sung, Intelligent multi - sensor control system -based on innovative technology integration via ZigBee and wi-fi networks. Journal of Network and Computer Applications, 2013, 36 (2) : pp.756-767.

DOI: 10.1016/j.jnca.2012.12.012

[3] Shen, Z., et al., Porting LooCI Components into Zigduino. Procedia Computer Science, 2013. 17 (0) : pp.579-582.

DOI: 10.1016/j.procs.2013.05.074

[4] Barroca, N., et al., Wireless sensor networks for temperature and humidity monitoring within concrete structures. The Construction and Building Materials, 2013, 40 (0) : pp.1156-1166.

DOI: 10.1016/j.conbuildmat.2012.11.087

[5] Teikari, P., et al., An inexpensive Arduino - -based LED stimulator system for vision research. The Journal of Neuroscience Methods, 2012. 211 (2) : P. 227-236.

DOI: 10.1016/j.jneumeth.2012.09.012

[6] Faugel, h. and v. Bobkov, Open source hard - and software: Using Arduino boards to keep old the hardware running. The Fusion Engineering and Design, (0).

DOI: 10.1016/j.fusengdes.2012.12.005

[7] Microchip Digilent to launch its first united to the Arduino ~ (TM) compatible with 32-bit MCU development platform. Electronic design engineering, 2011 (14) : 106.

[8] Kevin Bristol, Arduino open source hardware. Science and technology entrepreneurship, 2011 (5) : 115-114.

[9] Chen Yingying, ZigBee + Arduino + Android intelligent family. Electronic technology applications, 2011 (8) : page 2.

[10] Zheng Hao etc, based on the Arduino/Android bluetooth communication system design. The Internet of things technology, 2012 (05) : 50 - page 51.

[11] Yuan Benhua and Dong Zheng, the greenhouse temperature measurement system based on the Arduino panel design. Anhui agricultural science, 2012 (8) : 5050-5049.
