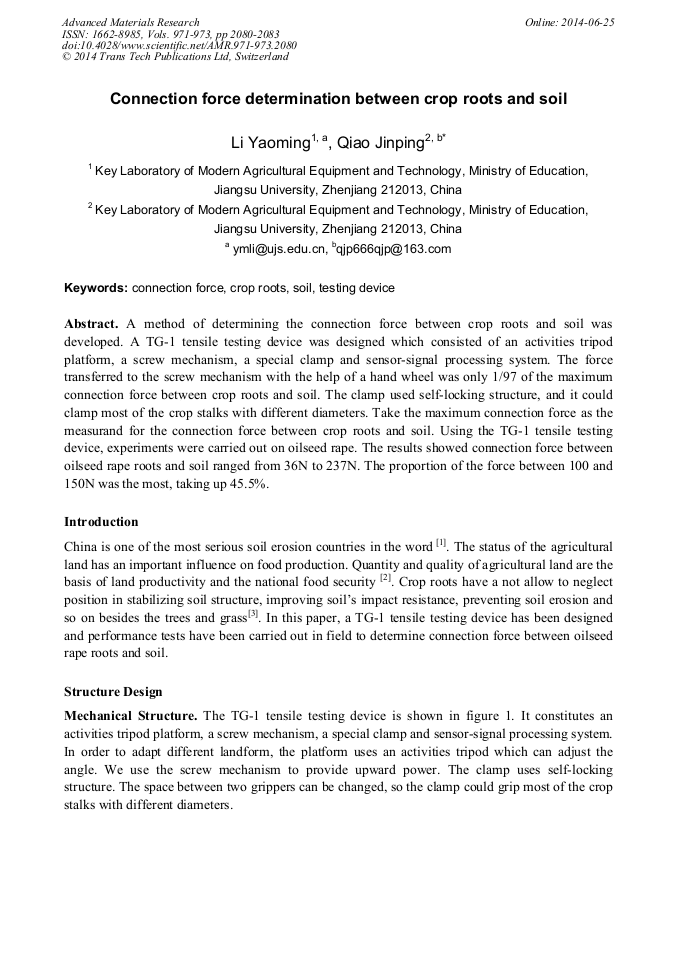

Connection Force Determination between Crop Roots and Soil

Abstract:

A method of determining the connection force between crop roots and soil was developed. A TG-1 tensile testing device was designed which consisted of an activities tripod platform, a screw mechanism, a special clamp and sensor-signal processing system. The force transferred to the screw mechanism with the help of a hand wheel was only 1/97 of the maximum connection force between crop roots and soil. The clamp used self-locking structure, and it could clamp most of the crop stalks with different diameters. Take the maximum connection force as the measurand for the connection force between crop roots and soil. Using the TG-1 tensile testing device, experiments were carried out on oilseed rape. The results showed connection force between oilseed rape roots and soil ranged from 36N to 237N. The proportion of the force between 100 and 150N was the most, taking up 45.5%.

• Periodical: Advanced Materials Research (Volumes 971-973)
• Pages: 2080-2083
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.971-973.2080
• Online since: June 2014
• Authors: Yao Ming Li*, Jin Ping Qiao
• Keywords: Connection Force, Crop Roots, Soil, Testing Device

References

[1] Chen Lei. Chinese soil and water conservation [J]. Soil and Water Conservation in China. 2002(07): 4-6.

[2] Li Tianjie, Yun Wenju, Zhao Ye, et al. situation and prospects of researches on land quality, land productivity and food security [J]. Resources and Industries. 2006, 8(1): 21-23.

[3] Wang Xiekang, Fang Duo. Study on the Principles and Benefits of Plants to Control Water and Soil Losses [J]. Journal of Sichuan university (engineering science edition), 2000, 32(2): 14-15.
