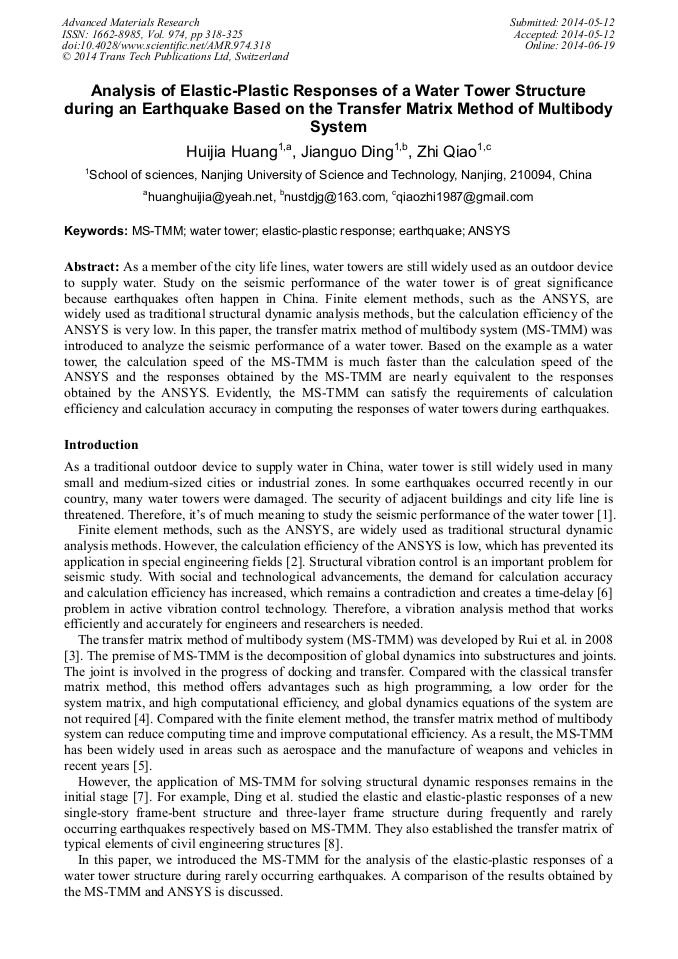

Analysis of Elastic-Plastic Responses of a Water Tower Structure during an Earthquake Based on the Transfer Matrix Method of Multibody System

Abstract:

As a member of the city life lines, water towers are still widely used as an outdoor device to supply water. Study on the seismic performance of the water tower is of great significance because earthquakes often happen in China. Finite element methods, such as the ANSYS, are widely used as traditional structural dynamic analysis methods, but the calculation efficiency of the ANSYS is very low. In this paper, the transfer matrix method of multibody system (MS-TMM) was introduced to analyze the seismic performance of a water tower. Based on the example as a water tower, the calculation speed of the MS-TMM is much faster than the calculation speed of the ANSYS and the responses obtained by the MS-TMM are nearly equivalent to the responses obtained by the ANSYS. Evidently, the MS-TMM can satisfy the requirements of calculation efficiency and calculation accuracy in computing the responses of water towers during earthquakes.

• Periodical: Advanced Materials Research (Volume 974)
• Pages: 318-325
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.974.318
• Online since: June 2014
• Authors: Hui Jia Huang*, Jian Guo Ding, Zhi Qiao
• Keywords: ANSYS, Earthquake, Elastic-Plastic Response, MS-TMM, Water Tower

References

[1] M.B. Yu, Y. Su: submitted to Special Structures (2012).

[2] B. Rong, X.T. Rui, G.P. Wang and F. Yang: submitted to Multibody System Dynamics (2010).

[3] X.T. Rui, L. Yun, Y. Lu, B. He and G. Wang: Transfer matrix method of multibody and its applications. (Science Press, Beijing 2008).

[4] A.S. Kumar, T.S. Sankar: submitted to Computers &Structures (1986).

[5] Z.H. Zhan, X.T. Rui, F.F. Yang and G.P. Wang: submitted to Journal of Multi-Body Dynamics (2011).

[6] H.Y. Hu: submitted to Journal of Vibration Engineering (1997).

[7] G.P. Wang, X.T. Rui, Y.Q. Lu: The 2nd International Conference on Dynamics Vibration and Control(2006).

[8] J.G. Ding, Y.W. Dai, Z. Qiao: submitted to Advances in Mechanical Engineering(2013).

[9] J. Zhang, H.L. Zhou, Z.R. Niu: submitted to Special Structures (2011).

[10] J. Jiang: submitted to Modern Decoration theory(2012).

[11] DL5073-2000. Seismic design of hydraulic structures. (China Electic Power Press, Beijing 2000).

[12] No insulation inverted cone shell reinforced concrete water tower(057-04S802-2). (China Building Press, Beijing 2004).
