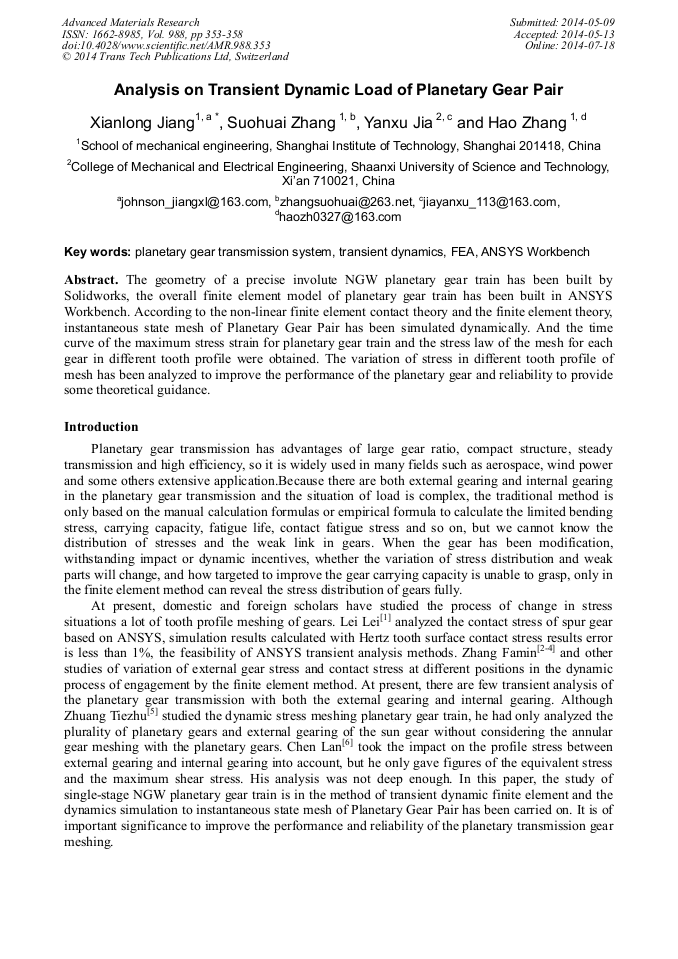

Analysis on Transient Dynamic Load of Planetary Gear Pair

Abstract:

The geometry of a precise involute NGW planetary gear train has been built by Solidworks, the overall finite element model of planetary gear train has been built in ANSYS Workbench. According to the non-linear finite element contact theory and the finite element theory, instantaneous state mesh of Planetary Gear Pair has been simulated dynamically. And the time curve of the maximum stress strain for planetary gear train and the stress law of the mesh for each gear in different tooth profile were obtained. The variation of stress in different tooth profile of mesh has been analyzed to improve the performance of the planetary gear and reliability to provide some theoretical guidance.

• Periodical: Advanced Materials Research (Volume 988)
• Pages: 353-358
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.988.353
• Online since: July 2014
• Authors: Xian Long Jiang, Suo Huai Zhang*, Yan Xu Jia, Hao Zhang
• Keywords: ANSYS Workbench , FEA, Planetary Gear Transmission System, Transient Dynamics

References

[1] Lei Lei, Baolin Wu, Xinbin Xie, Spur Gear Contact Stress Analysis Based on the Finite Element Software ANSYS, J. Journal of Mechanical Transmission, 2006, 30(2) 50-59.

[2] Famin Zhang, Simulation Analysis of Gear Transmission Impact Characteristic based on ANSYA/ LS- DYNA, J. Journal of Mechanical Transmission, 2011, 35(09) 9-11.

[3] Yongcan Liu, Fenglin Wu, Simulation Analysis of Gear Dynamics Contacts based on ANSYS/LS-DYNA, J. Mechanical Engineering & Automation, 2011(5) 43-45.

[4] Fan Yang, Shouqun Sun, Exact Analysis of Gear Contact Stress in Meshing Process, J. Journal of Mechanical Transmission, 2010, 34(7) 56-67.

[5] Tiezhu Zhuang, Rongjun Hu, Research of Dynamic Planetary Gear Train Meshing Stress, J. Advances in Aeronautical Science and Engineering, 2010, 1(2) 195-200.

[6] Lan Chen, Cheng Lai, Analysis of Planetary Gear Transmission Transient Dynamics based on ANSYS/LS-DYNA, J. Journal of Henan Science and Technology, 2013, 222-223.

[7] Hongcai Zhang, Xianwei Liu, Changchun Sun, ANSYS Workbench14. 5 Analytical Simulation Project Examples, Macmillan, Beijing: China Machine Press, 2013, pp.41-250, 300-310.

[8] Zhan Zhang, Hongsong Zhang, Xiaowei Zhang．Planetary Differential Transmission, Macmillan, Beijing: China Machine Press, 2008, pp.15-40.

[9] Wenwei Zhen, Kejian Wu. Mechanical Principle (7th Edition), Macmillan, Beijing: China Higher Education Press, 1997, pp.162-183.

[10] Guilong Lin, Jinbin Ding, Zheng Wen. ANSYS Workbench 13. 0 from Entry to the Master, Macmillan, Beijing: Tsinghua University Press, 2012, pp.216-233, 329-335.
