Auto-Gopher-2 - Wireline Deep Sampler Driven by Percussive Piezoelectric Actuator and Rotary EM Motors

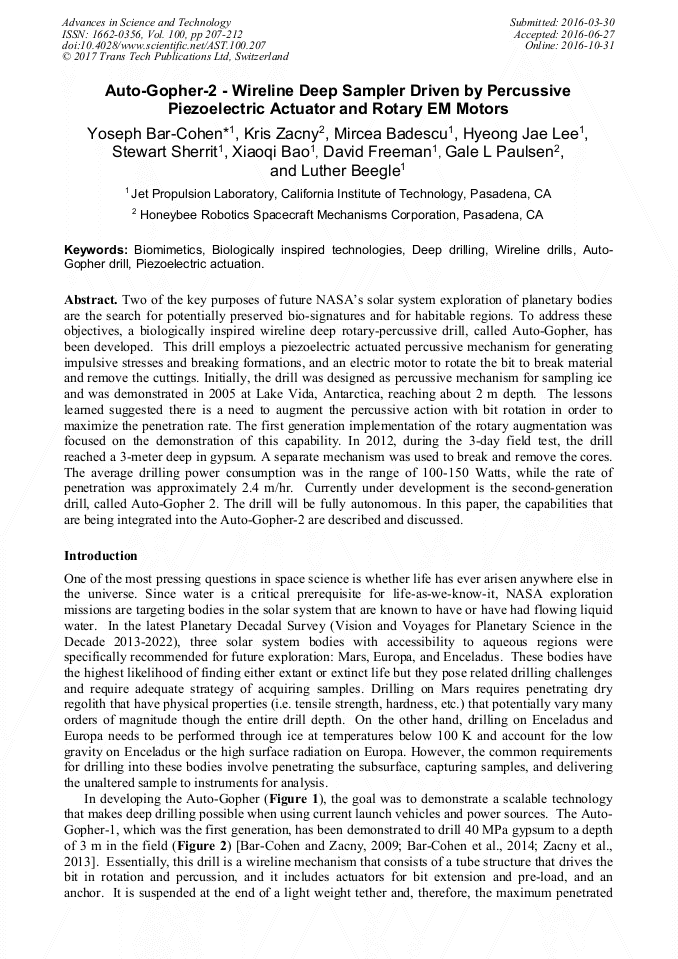

Abstract:

Two of the key purposes of future NASA’s solar system exploration of planetary bodies are the search for potentially preserved bio-signatures and for habitable regions. To address these objectives, a biologically inspired wireline deep rotary-percussive drill, called Auto-Gopher, has been developed. This drill employs a piezoelectric actuated percussive mechanism for generating impulsive stresses and breaking formations, and an electric motor to rotate the bit to break material and remove the cuttings. Initially, the drill was designed as percussive mechanism for sampling ice and was demonstrated in 2005 at Lake Vida, Antarctica, reaching about 2 m depth. The lessons learned suggested there is a need to augment the percussive action with bit rotation in order to maximize the penetration rate. The first generation implementation of the rotary augmentation was focused on the demonstration of this capability. In 2012, during the 3-day field test, the drill reached a 3-meter deep in gypsum. A separate mechanism was used to break and remove the cores. The average drilling power consumption was in the range of 100-150 Watts, while the rate of penetration was approximately 2.4 m/hr. Currently under development is the second-generation drill, called Auto-Gopher 2. The drill will be fully autonomous. In this paper, the capabilities that are being integrated into the Auto-Gopher-2 are described and discussed.

• Periodical: Advances in Science and Technology (Volume 100)
• Pages: 207-212
• DOI: https://doi.org/10.4028/www.scientific.net/AST.100.207
• Online since: October 2016
• Authors: Yoseph Bar-Cohen*, Kris Zacny, Mircea Badescu, Hyeong Jae Lee, Stewart Sherrit, Xiao Qi Bao, David Freeman, Gale L. Paulsen, Luther Beegle
• Keywords: Auto-Gopher Drill, Biologically Inspired Technologies, Biomimetics, Deep Drilling, Piezoelectric Actuation, Wireline Drills

References

[1] Aldrich J.B., S. Sherrit, Y. Bar-Cohen, X. Bao, M. Badescu, and Z. Chang. Extremum-seeking control of Ultra-sonic/Sonic Driller/Corer (USDC) driven at high-power, Proceedings of the SPIE Modeling, Signal Processing and Control Conf., Volume 6166 (2006b).

DOI: 10.1117/12.658872

[2] Badescu, M., S. Kassab, S. Sherrit, J. Aldrich, X. Bao, Y. Bar-Cohen, and Z. Chang, Ultrasonic/Sonic Driller/Corer as a hammer-rotary drill., Proc., of the 14th International Symposium on: Smart Structures and Materials & Nondestructive Evaluation and Health Monitoring, International Society for Optics and Photonics, 65290S. (2007).

DOI: 10.1117/12.716493

[3] Bao, X., Bar-Cohen, Y., Chang, Z., Dolgin, B. P., Sherrit, S., Pal, D. S., Du, S., and Peterson, T. (2003).

[4] Bar-Cohen Y., S. Sherrit, X. Bao, M. Badescu, J. Aldrich and Z. Chang, Subsurface Sampler and Sensors Platform Using the Ultrasonic/Sonic Driller/Corer (USDC), Paper #6529-18, SPIE Smart Structures and Materials Symposium, San Diego, CA, March 19-22, (2007).

DOI: 10.1117/12.715048

[5] Bar-Cohen, Y., and Zacny, K. (2009). Drilling in extreme environments: penetration and sampling on earth and other planets, John Wiley & Sons.

DOI: 10.1002/9783527626625

[6] Bar-Cohen Y., M. Badescu, H. J. Lee, S. Sherrit, K. Zacny, G. L Paulsen, L. Beegle, and X. Bao, Auto-Gopher – a wireline deep sampler driven by piezoelectric percussive actuator and EM rotary motor, Proceedings of the ASCE Earth and Space 2014 Conference, Symposium 2: Exploration and Utilization of Extraterrestrial Bodies, held in St. Louis, MO, 27-29 Oct (2014).

DOI: 10.1061/9780784479179.025

[7] Zacny, K., G. Paulsen, B. Mellerowicz, Y. Bar-Cohen, L. Beegle, S. Sherrit, M. Badescu, F. Corsetti, J. Craft, Y. Ibarra, X. Bao, and H. J. Lee, Wireline Deep Drill for Exploration of Mars, Europa, and Enceladus, 2013 IEEE Aerospace Conference, Big Sky, MT, March 2-9, (2013).

DOI: 10.1109/aero.2013.6497189

[8] Zacny, K., Y. Bar-Cohen, M. Brennan, G. Briggs, G. Cooper, K. Davis, B. Dolgin, D. Glaser, B. Glass, S. Gorevan, J. Guerrero, C. McKay, G. Paulsen, S. Stanley, and C. Stoker, Drilling Systems for Extraterrestrial Subsurface Exploration, Astrobiology Journal, Volume 8, Number 3, 2008, DOI: 10. 1089/ast. 2007. 0179.

DOI: 10.1089/ast.2007.0179
