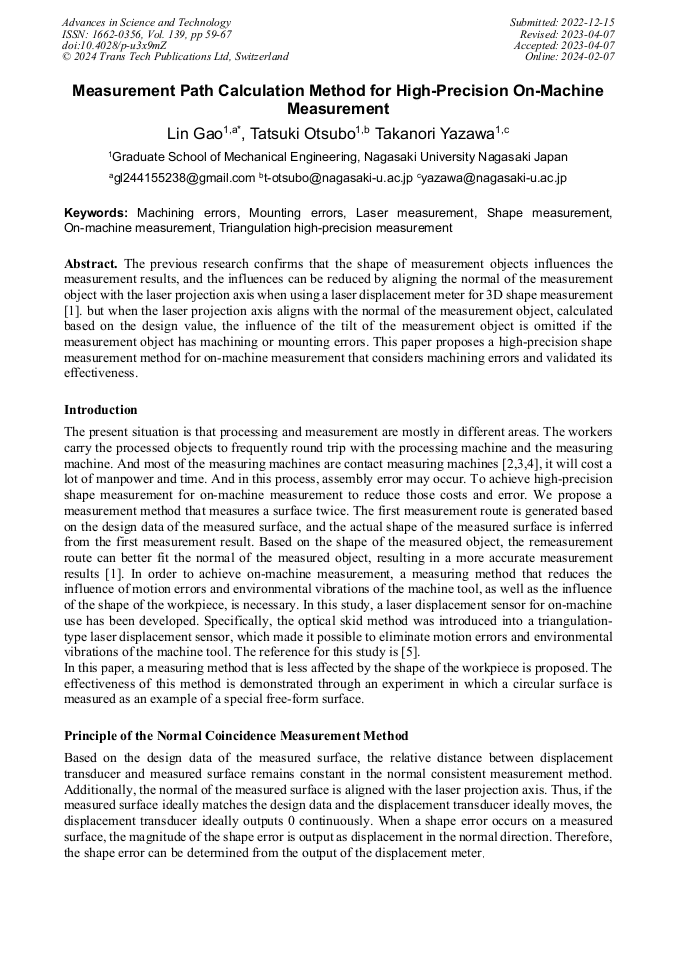

Measurement Path Calculation Method for High-Precision On-Machine Measurement

Abstract:

The previous research confirms that the shape of measurement objects influences the measurement results, and the influences can be reduced by aligning the normal of the measurement object with the laser projection axis when using a laser displacement meter for 3D shape measurement [1]. but when the laser projection axis aligns with the normal of the measurement object, calculated based on the design value, the influence of the tilt of the measurement object is omitted if the measurement object has machining or mounting errors. This paper proposes a high-precision shape measurement method for on-machine measurement that considers machining errors and validated its effectiveness.

• Periodical: Advances in Science and Technology (Volume 139)
• Pages: 59-67
• DOI: https://doi.org/10.4028/p-u3x9mZ
• Online since: February 2024
• Authors: Lin Gao*, Tatsuki Otsubo, Takanori Yazawa
• Keywords: Laser Measurement, Machining Errors, Mounting Errors, On-Machine Measurement, Shape Measurement, Triangulation High-Precision Measurement

References

[1] K Izumi, T Otsubo, T Yazawa et al : Study of non-contact three-dimensional measurement by laser displacement meter, -Examination of practical three-dimensional measurement method, Proceedings of Spring Conference of Japan Society for Precision Engineering, p.99–100(2004) (in Japanese)

[2] FJ Chen, SH Yin, H Huang et al : Profile Error Compensation in Ultra-precision Grinding of Aspheric Surfaces with On-machine Measurement. The International Journal of Machine Tools and Manufacture 50(5), p.480–486 (2010)

DOI: 10.1016/j.ijmachtools.2010.01.001

[3] P Blaser, F Pavlicek, K Mori et al : Adaptive Learning Control for Thermal Error Compensation of 5-axis Machine Tools, Journal of Manufacturing Systems 44(2), p.302–309 (2017)

DOI: 10.1016/j.jmsy.2017.04.011

[4] I Ainsworth, M Ristic, D Brujic et al : CAD-based Measurement Path Planning for Freeform Shapes using Contact Probes, The International Journal of Advanced Manufacturing Technology 16(1), p.23–31(2000)

DOI: 10.1007/pl00013128

[5] T Otsubo, T Yazawa, R Yamada et al : Accuracy of three-dimensional shape measurement using a triangulation method sensor with optical skid, Key Engineering Materials Vol.656-657, pp.768-773 (2015)

DOI: 10.4028/www.scientific.net/kem.656-657.768

[6] G Abe, M Aritoshi, T Tomita et al : Development of On-machine Measurement System Utilizing Line Laser Displacement Sensor. International Journal of Automation Technology 5(5), p.708–714 (2011)

DOI: 10.20965/ijat.2011.p0708

[7] W Gao, H Haitjema, FZ Fang et al : On-machine and in-process surface metrology for precision manufacturing, CIRP Annals - Manufacturing Technology 68, p.843–866 (2019)

DOI: 10.1016/j.cirp.2019.05.005

[8] Y Aoki, S Ozaono: On a New Method of Roundness Measurement Based on the Three-point Method. Journal of JSPE 32(12, p.831–836 (1966) (in Japanese)
