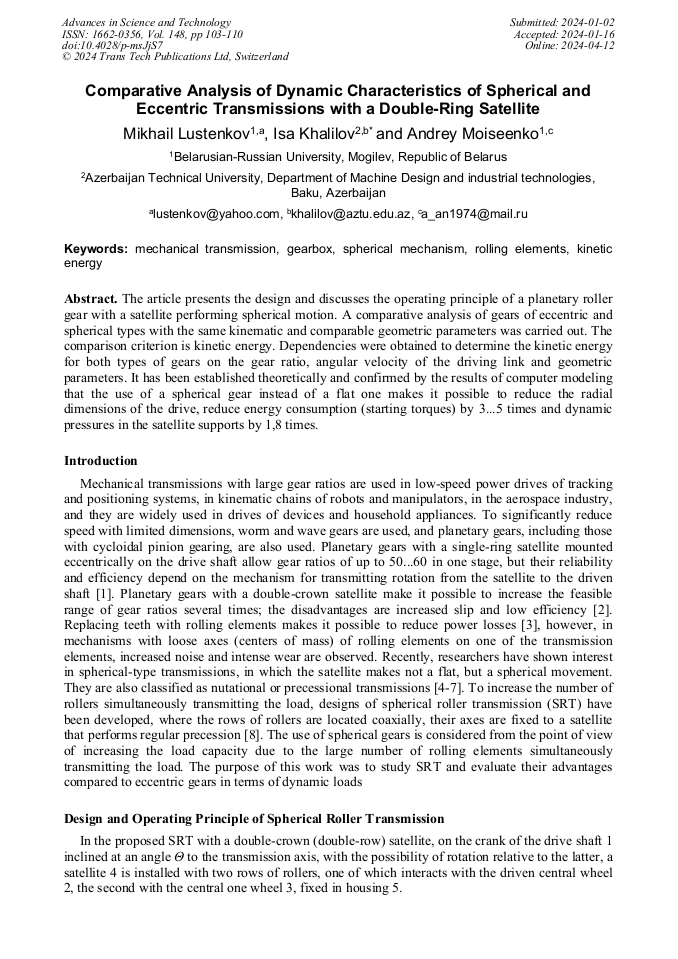

Comparative Analysis of Dynamic Characteristics of Spherical and Eccentric Transmissions with a Double-Ring Satellite

Abstract:

The article presents the design and discusses the operating principle of a planetary roller gear with a satellite performing spherical motion. A comparative analysis of gears of eccentric and spherical types with the same kinematic and comparable geometric parameters was carried out. The comparison criterion is kinetic energy. Dependencies were obtained to determine the kinetic energy for both types of gears on the gear ratio, angular velocity of the driving link and geometric parameters. It has been established theoretically and confirmed by the results of computer modeling that the use of a spherical gear instead of a flat one makes it possible to reduce the radial dimensions of the drive, reduce energy consumption (starting torques) by 3...5 times and dynamic pressures in the satellite supports by 1,8 times.

• Periodical: Advances in Science and Technology (Volume 148)
• Pages: 103-110
• DOI: https://doi.org/10.4028/p-msJjS7
• Online since: April 2024
• Authors: Mikhail Lustenkov, Isa Khalilov*, Andrey Moiseenko
• Keywords: Gearbox, Kinetic Energy, Mechanical Transmission, Rolling Elements, Spherical Mechanism

References

[1] Chen E and Walton D 1990 The optimum design of KHV planetary gears with small tooth differences International Journal of Machine Tools and Manufacture 30(1) p.99–109.

DOI: 10.1016/0890-6955(90)90045-k

[2] Liao Y G and Chen M-Y 2017 Analysis of multi-speed transmission and electrically continuous variable transmission using lever analogy method for speed ratio determination Advances in Mechanical Engineering 9(8) p.1–12.

DOI: 10.1177/1687814017712948

[3] Lustenkov M.E. (2010). Planetary ball gears: features of strength calculations Vestnik Mashinostroeniya, 9, pp.13-17. In Russian.

[4] Molyneux W G 1997 The internal bevel gear and its applications Proc. Inst. Mech. Eng. G 211 p.39–61.

[5] Hong J, Yao L, Ji W and Huang Z 2015 Kinematic modeling for the Nutation Drive Based on Screw Theory Procedia CIRP 36 p.123–128.

DOI: 10.1016/j.procir.2015.06.103

[6] Wang G X and Guan T M 2009 Modeling of Nutation Drive with Rolling Teeth Applied Mechanics and Materials 16–19 p.708–712.

DOI: 10.4028/www.scientific.net/amm.16-19.708

[7] Frumusanu G R and Oancea N 2013 Technological solution to profile and generate the teeth of central gear for precessional gear drives Int. J. Adv. Manuf. Technol 67 p.687–699.

DOI: 10.1007/s00170-012-4515-3

[8] Lustenkov M E and Lustenkova E S 2020 Load Capacity of Spherical Roller Transmission with Double-Row Pinion Load Capacity of Spherical Roller Transmission with Double-Row Pinion IOP Conf. Series: Materials Science and Engineering 795 p.6.

DOI: 10.1088/1757-899x/795/1/012020

[9] Bostan I 2012 Planetary Precessional Transmissions: Synthesis and Generation Technologies Power Transmissions Proc. of the 4-th Int. conf. June 20‒23 2012, Sinaia, Romania. Mechanisms and Machine Science Vol 13 p.21‒44.

DOI: 10.1007/978-94-007-6558-0_2

[10] Bat M.I., Dzhanelidze G.Yu., Curzon A.S. (1966). Theoretical mechanics in examples and problems Publishing house Nauka, Main editorial office of physical and mathematical literature, Vol. 2, pp.382-383. In Russian.
