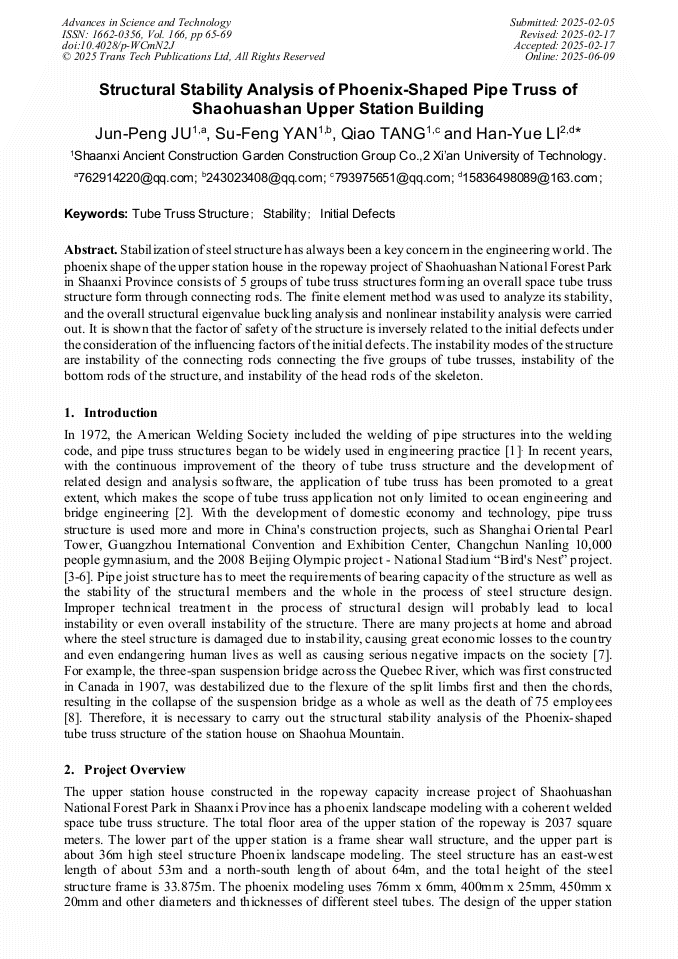

Structural Stability Analysis of Phoenix-Shaped Pipe Truss of Shaohuashan Upper Station Building

Abstract:

Stabilization of steel structure has always been a key concern in the engineering world. The phoenix shape of the upper station house in the ropeway project of Shaohuashan National Forest Park in Shaanxi Province consists of 5 groups of tube truss structures forming an overall space tube truss structure form through connecting rods. The finite element method was used to analyze its stability, and the overall structural eigenvalue buckling analysis and nonlinear instability analysis were carried out. It is shown that the factor of safety of the structure is inversely related to the initial defects under the consideration of the influencing factors of the initial defects. The instability modes of the structure are instability of the connecting rods connecting the five groups of tube trusses, instability of the bottom rods of the structure, and instability of the head rods of the skeleton.

• Periodical: Advances in Science and Technology (Volume 166)
• Pages: 65-69
• DOI: https://doi.org/10.4028/p-WCmN2J
• Online since: June 2025
• Authors: Jun Peng Ju, Su Feng Yan, Qiao Tang, Han Yue Li*
• Keywords: Initial Defects, Stability, Tube Truss Structure

References

[1] AWS D1.1/D1.1M:2010 AWS Welding Specification for Steel Structures (the only AWS authorized Chinese translation). Mechanical Manufacturing Abstracts (Welding Volume), 2013(04): 49.

[2] Le Zhou and Menghong Wang, Stability analysis of a long-span tube truss structure [J]. Building Structures, 2022. 52(S1): pp.611-615.

[3] Zhou J.J, Study on Application of Tubular Truss Structures in Engineering [J]. Applied Mechanics and Materials, 2013. 2733(438-439): pp.1864-1867.

DOI: 10.4028/www.scientific.net/amm.438-439.1864

[4] Wenbo Sun, Stiffness Performance of round steel tube truss with curved chord [D], 2002, South China University of Technology.

[5] Yunbo Chen, Current situation and development approach of steel structure in China [J]. Building Technology, 1997(07): 477-479.

[6] Lewei Tong, Experimental study on KK type joints of welded square tube truss with double strings in national Stadium [J]. Journal of Building Structures, 2007(02): 49-53+80.

[7] GB 55006-2021, General Code for Steel Structures [S]. Beijing: China Building and Construction Press, (2021)

[8] Wuqin Wang and Junqing Lei, Analysis of bridge crash cases [C]. in the 9th Annual Conference of China Civil Engineering Society. 2000. Hangzhou, Zhejiang Province, China.

[9] GB50017-2017, Steel Structure Design Standard [S]. Beijing: China Building and Construction Press, 2017.
