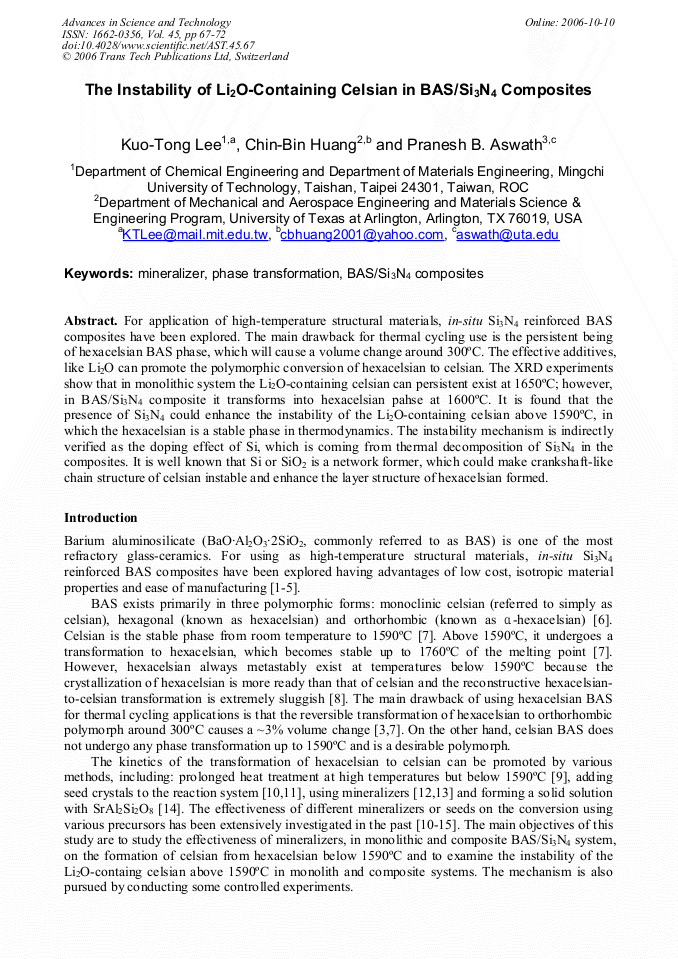

The Instability of Li₂O-Containing Celsian in BAS/Si₃N₄ Composites

Abstract:

For application of high-temperature structural materials, in-situ Si3N4 reinforced BAS composites have been explored. The main drawback for thermal cycling use is the persistent being of hexacelsian BAS phase, which will cause a volume change around 300°C. The effective additives, like Li2O can promote the polymorphic conversion of hexacelsian to celsian. The XRD experiments show that in monolithic system the Li2O-containing celsian can persistent exist at 1650°C; however, in BAS/Si3N4 composite it transforms into hexacelsian pahse at 1600°C. It is found that the presence of Si3N4 could enhance the instability of the Li2O-containing celsian above 1590°C, in which the hexacelsian is a stable phase in thermodynamics. The instability mechanism is indirectly verified as the doping effect of Si, which is coming from thermal decomposition of Si3N4 in the composites. It is well known that Si or SiO2 is a network former, which could make crankshaft-like chain structure of celsian instable and enhance the layer structure of hexacelsian formed.

• Periodical: Advances in Science and Technology (Volume 45)
• Pages: 67-72
• DOI: https://doi.org/10.4028/www.scientific.net/AST.45.67
• Online since: October 2006
• Authors: Kuo Tong Lee, Chin Bin Huang, Pranesh B. Aswath
• Keywords: BAS/Si₃N₄ Composites, Mineralizer, Phase Transformation

References

[1] K. K Richardson, D.W. Freitag and D.L. Hunn: J. Am. Ceram. Soc. Vol. 78(10) (1995), p.2622.

[2] A. Bandyopadhyay, S.W. Quander, P.B. Aswath, D.W. Freitag, K. K Richardson and D.L. Hunn: Scripta Metallurgica et Materialia Vol. 32(9) (1995), p.1417.

DOI: 10.1016/0956-716x(95)00181-t

[3] A. Bandyopadhyay, P.B. Aswath, W.D. Porter and O.B. Cavin: J. Mater. Res. Vol. 10(5) (1995), p.1256.

[4] S.W. Quander, A. Bandyopadhyay and P.B. Aswath: J. Mater. Sci. Vol. 32 (1997), p. (2021).

[5] F. Yu, C.R. Ortiz-Longo, K.W. White: J. Mater. Sci. Vol. 34 (1999), p.2821.

[6] N.P. Bansal and M.J. Hyatt: J. Mater. Res. Vol. 4(5) (1989), p.1257.

[7] H.C. Lin and W.R. Foster: Am. Mineral. Vol. 53 (1968), p.134.

[8] B. Yoshiki and K. Matsumoto: J. Am. Ceram. Soc. Vol. 34(9) (1951), p.283.

[9] K.T. Lee and P.B. Aswath: Material Chemistry and Physics Vol. 71 (2001), p.47.

[10] N.P. Bansal: Material Science and Engineering A Vol. 342 (2003), p.23.

[11] C. Liu , S. Komarneni and R. Roy: J. Am. Ceram. Soc. Vol. 78(9) (1995), p.2521.

[12] K.T. Lee and P.B. Aswath: International Journal of Inorganic Materials Vol. 3 (2001), p.687.

[13] K.T. Lee and P.B. Aswath: Material Science and Engineering A Vol. 352 (2003), p.1.

[14] N.P. Bansal and C.H. Drummond III: J. Am. Ceram. Soc. Vol. 76(5) (1993), p.1321.

[15] M. Chen, W.E. Lee and P.F. James: J. Non-Cryst. Solids. Vol. 147 (1992), p.532.

[16] K.T. Lee and P.B. Aswath: J. Am. Ceram. Soc. Vol. 83(12) (2000), p.352.

[17] JCPDS card: #9-250 for α-Si3N4, #9-259 for β-Si3N4, #12-726 for hexacelsian BAS, #18-153 for celsian BAS.

[18] J.C. Debsikdar: Ceram. Eng. Sci. Proc. Vol. 14(1-2) (1993), p.405.

[19] M.C. Guillem Villar, C. Guillem Monzonis and J.A. Navarro: Trans. J. Br. Ceram. Soc. Vol. 82(2) (1983), p.69.

[20] M.C. Guillem Villar, C. Guillem Monzonis and P.E. Lopez: Trans. J. Br. Ceram. Soc. Vol. 82(6) (1983), p.197.

[21] R.V. Krishnarao, V. V Ramarao and Y.R. Mahajan: J. Mater. Res. Vol. 12(12) (1997), p.3322.

[22] A. Bandyopadhyay and P.B. Aswath: J. Mater. Res. Vol. 10(12) (1995), p.3143.
