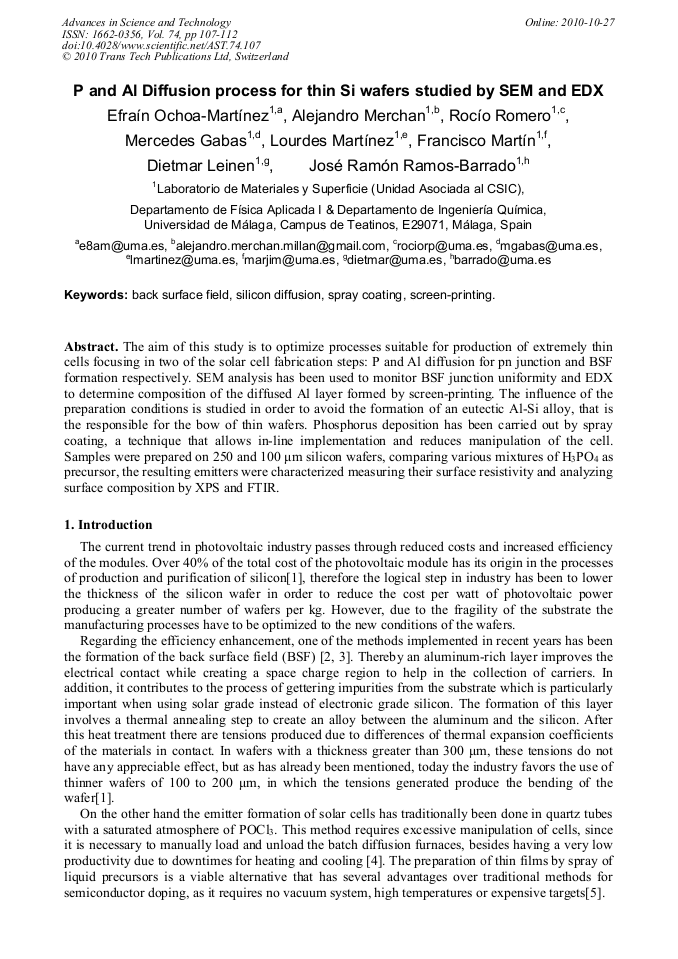

P and Al Diffusion Process for Thin Si Wafers Studied by SEM and EDX

Abstract:

The aim of this study is to optimize processes suitable for production of extremely thin cells focusing in two of the solar cell fabrication steps: P and Al diffusion for pn junction and BSF formation respectively. SEM analysis has been used to monitor BSF junction uniformity and EDX to determine composition of the diffused Al layer formed by screen-printing. The influence of the preparation conditions is studied in order to avoid the formation of an eutectic Al-Si alloy, that is the responsible for the bow of thin wafers. Phosphorus deposition has been carried out by spray coating, a technique that allows in-line implementation and reduces manipulation of the cell. Samples were prepared on 250 and 100 μm silicon wafers, comparing various mixtures of H3PO4 as precursor, the resulting emitters were characterized measuring their surface resistivity and analyzing surface composition by XPS and FTIR.

• Periodical: Advances in Science and Technology (Volume 74)
• Pages: 107-112
• DOI: https://doi.org/10.4028/www.scientific.net/AST.74.107
• Online since: October 2010
• Authors: Efrain Ochoa-Martínez, Alejandro Merchan, Rocío Romero, Mercedes Gabas, Lourdes Martínez, Francisco Martín, Dietmar Leinen, José Ramón Ramos-Barrado
• Keywords: Back Surface Field, Screen Printing, Silicon Diffusion, Spray Coating

References

[1] M.M. Hilali, J.M. Gee, P. Hacke, Solar Energy Materials and Solar Cells 91/13 (2007) 1228.

DOI: 10.1016/j.solmat.2007.04.010

[2] J. Mandelkorn, J.H. Lamneck Jr, Journal of Applied Physics 44/10 (1973) 4785.

[3] J. del Alamo, J. Eguren, A. Luque, Solid State Electronics 24/5 (1981) 415.

[4] W. Koch, A. L. Endrös, D. Franke, C Häßler, J. P. Kalejs, H. J. Möller, in: A. Luque, S. Hegedus (Eds. ), Handbook of Photovoltaic Science and Engineering, 2004, p.205.

DOI: 10.1002/0470014008.ch6

[5] D.S. Kim, M.M. Hilali, A. Rohatgi, K. Nakano, A. Hariharan, K. Matthei, Journal of The Electrochemical Society 153/7 (2006) A1391.

DOI: 10.1149/1.2202088

[6] A. Kaminski, B. Vandelle, A. Fave, J.P. Boyeaux, L.Q. Nam, R. Monna, D. Sarti, A. Laugier, Solar Energy Materials and Solar Cells 72/1-4 (2002) 373.

DOI: 10.1016/s0927-0248(01)00185-4

[7] A. Schneider, C. Gerhards, P. Fath, E. Bucher, R.J.S. Young, J.A. Raby, A.F. Carroll, 29th. IEEE PVSC, New Orleans (2002) p.336.

[8] D. Bouhafs, A. Moussi, M. Boumaour, S.E.K. Abaidia, L. Mahiou, Thin Solid Films 510/1-2 (2006) 325.

DOI: 10.1016/j.tsf.2006.01.005

[9] D. Bouhafs, A. Moussi, M. Boumaour, S.E.K. Abaidia, L. Mahiou, A. Messaoud, Journal of Physics D: Applied Physics 40/9 (2007) 2728.

[10] D.B. Voyer C., Kai Wagner, Jan Benick, Ralf Preu, Jörg Koriath, Moritz Heintze, Harald N. Wanka, 20th European Photovoltaic Solar Energy Conference, Barcelona Spain, (2005).

[11] D.T. Allen, E.J. Palen, M.I. Haimov, S.V. Hering, J.R. Young, Aerosol Science and Technology 21/4 (1994) 325.

[12] S.A. Katsyuba, N.I. Monakhova, L.K. Ashrafullina, R.R. Shagidullin, S.A. Terenteva, Journal of Applied Spectroscopy 54/6 (1991) 540.
