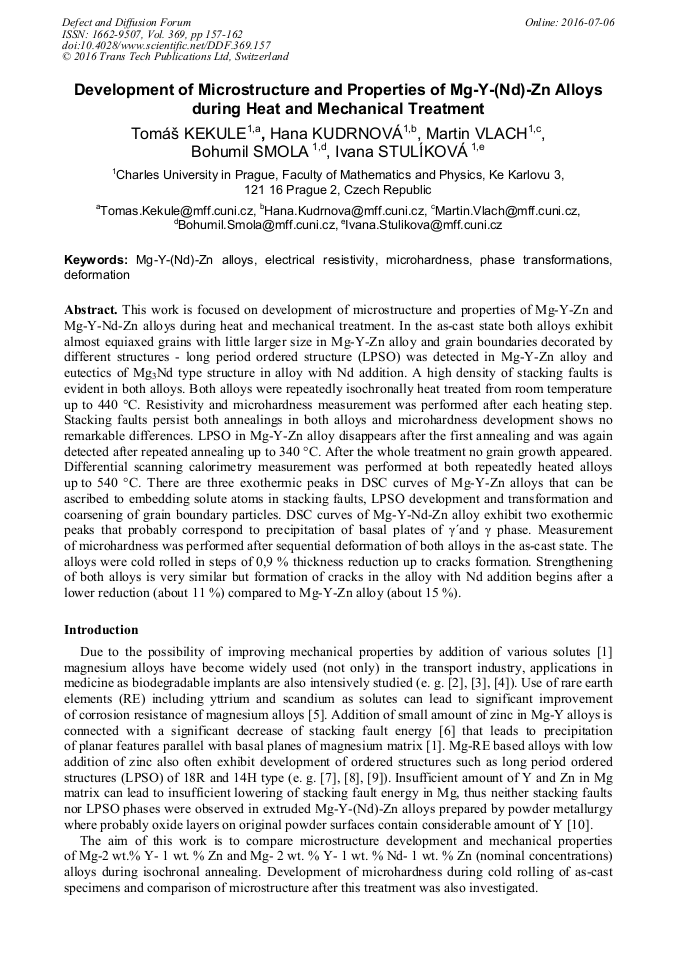

Development of Microstructure and Properties of Mg-Y-(Nd)-Zn Alloys during Heat and Mechanical Treatment

Abstract:

This work is focused on development of microstructure and properties of Mg-Y-Zn and Mg-Y-Nd-Zn alloys during heat and mechanical treatment. In the as-cast state both alloys exhibit almost equiaxed grains with little larger size in Mg-Y-Zn alloy and grain boundaries decorated by different structures - long period ordered structure (LPSO) was detected in Mg-Y-Zn alloy and eutectics of Mg₃Nd type structure in alloy with Nd addition. A high density of stacking faults is evident in both alloys. Both alloys were repeatedly isochronally heat treated from room temperature up to 440 °C. Resistivity and microhardness measurement was performed after each heating step. Stacking faults persist both annealings in both alloys and microhardness development shows no remarkable differences. LPSO in Mg-Y-Zn alloy disappears after the first annealing and was again detected after repeated annealing up to 340 °C. After the whole treatment no grain growth appeared. Differential scanning calorimetry measurement was performed at both repeatedly heated alloys up to 540 °C. There are three exothermic peaks in DSC curves of Mg-Y-Zn alloys that can be ascribed to embedding solute atoms in stacking faults, LPSO development and transformation and coarsening of grain boundary particles. DSC curves of Mg-Y-Nd-Zn alloy exhibit two exothermic peaks that probably correspond to precipitation of basal plates of γ ́and γ phase. Measurement of microhardness was performed after sequential deformation of both alloys in the as-cast state. The alloys were cold rolled in steps of 0,9 % thickness reduction up to cracks formation. Strengthening of both alloys is very similar but formation of cracks in the alloy with Nd addition begins after a lower reduction (about 11 %) compared to Mg-Y-Zn alloy (about 15 %).

• Periodical: Defect and Diffusion Forum (Volume 369)
• Pages: 157-162
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.369.157
• Online since: July 2016
• Authors: Tomáš Kekule*, Hana Kudrnová, Martin Vlach, Bohumil Smola, Ivana Stulíková
• Keywords: Deformation, Electrical Resistivity, Mg-Y-(Nd)-Zn Alloys, Microhardness, Phase Transformations

References

[1] J. F. Nie: Metall. Mater. Trans., A43, 2012, pp.3891-3939.

[2] S. Zhang, X. Zhang, Ch. Zhao, J. Li, Y. Song, Ch. Xie, et. al.: Acta Biom. 6, 2010, p.626–640.

[3] Y. Yun, Z. Dong, D. Yang, M. J. Schulz, V. N. Shanov, S. Yarmolenko et al.: Mater. Sci. Eng. C, 29, 2009, pp.1814-1821.

[4] L. Xu, G. Yu, E. Zhang, F. Pan, K. Yang: J. Biomed mater. Res. 83A, 2007, pp.703-711.

[5] V. Neubert, I. Stulíková, B. Smola, A. Bakkar, B. L. Mordike: Kov. mater., 42, 2004, pp.31-41.

[6] B. Smola, I. Stulíková, J. Pelcová, B. L. Mordike: J. Alloys and Comp., 378 (2004) 196-201.

[7] T. Honma, T. Ohkubo, S. Kamado, K. Hono: Acta Mater. 55, 2007, pp.4137-4150.

[8] K. Amiya, T. Ohsuna, A. Inoue: Mater. Trans 44, 2003, pp.2151-2156.

[9] J. F. Nie, K. Oh-Ishi, X. Gao, K. Hono: Acta Mater. 56, 2008, p.6061–6076.

[10] T. Kekule, I. Stulíková, B. Smola, M. Vlach, H. Kudrnová: In METAL 2013: 22nd International Conference on Metallurgy and Materials. Ostrava: Tanger, (2013).

[11] T. Kekule, M. Vlach, H. Císařová, B. Smola, I. Stulíková: In METAL 2012: 21st International Conference on Metallurgy and Materials. Ostrava: Tanger, (2012).

[12] Y. Zhu, A. J. Morton, M. Weyland, J. F. Nie: Acta Mater., 58, 2, 2010, pp.464-475.

[13] Z. Yang, M. F. Chisholm, G. Dusche, X. Maa, S. J. Pennycook: Acta Materialia 61, 2013, p.350–359.

[14] I. Stloukal, J. Čermák: Compos. Science and Technology, Vol. 68, issue 2, 2008, p.417 – 423.

[15] J. Čermák, I. Stloukal: In METAL 2008: 17th International Conference on Metallurgy and Materials. Ostrava: Tanger, (2008).

[16] J. -K. Kim, S. Sandlöbes, D. Raabe: Acta Mater. 82, 2015, pp.414-423.
