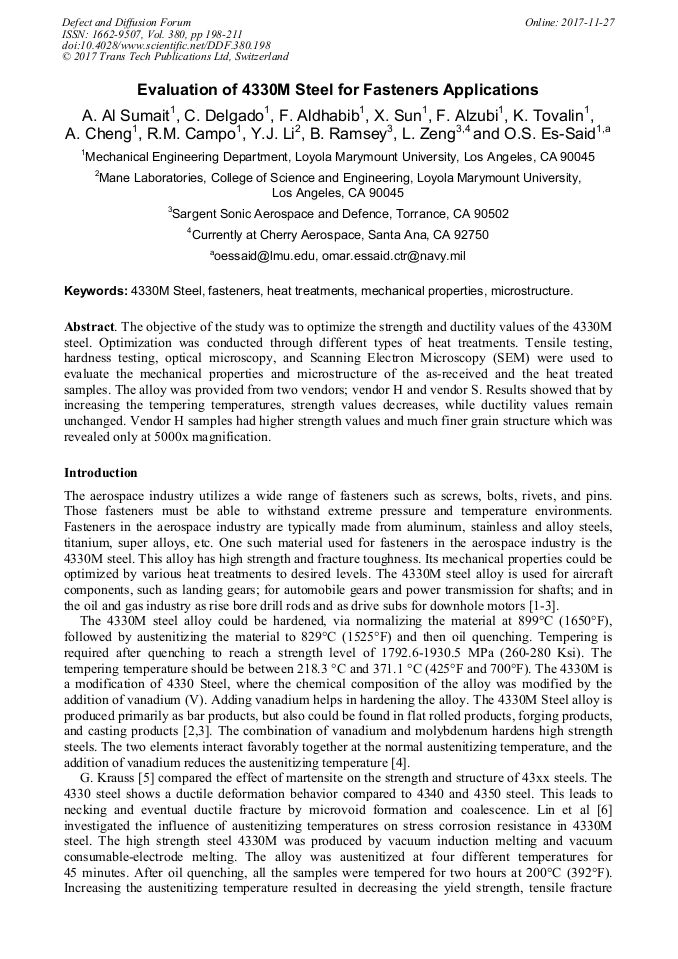

Evaluation of 4330M Steel for Fasteners Applications

Abstract:

The objective of the study was to optimize the strength and ductility values of the 4330M steel. Optimization was conducted through different types of heat treatments. Tensile testing, hardness testing, optical microscopy, and Scanning Electron Microscopy (SEM) were used to evaluate the mechanical properties and microstructure of the as-received and the heat treated samples. The alloy was provided from two vendors; vendor H and vendor S. Results showed that by increasing the tempering temperatures, strength values decreases, while ductility values remain unchanged. Vendor H samples had higher strength values and much finer grain structure which was revealed only at 5000x magnification.

• Periodical: Defect and Diffusion Forum (Volume 380)
• Pages: 198-211
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.380.198
• Online since: November 2017
• Authors: A. Al Sumait*, C. Delgado, F. Aldhabib, X. Sun, F. Alzubi, K. Tovalin, A. Cheng, R.M. Campo, Y.J. Li, B. Ramsey, L. Zeng, O.S. Es-Said
• Keywords: 4330M Steel, Fasteners, Heat Treatments, Mechanical Properties, Microstructure

References

[1] William D. Callister and G. Rethwisch"Materials Science and Engineering an Introduction". John Wiley and Sons, Incorporated, eighth edition, 2010., pp.342-367.

[2] Metal Property Data: 4330 Steel., 4330 Alloy Steels Material Property Data Sheet - Product Availability and Request a Quote. Metal Suppliers Online, n. d. Web. 10 Aug. (2016).

[3] Alloy Steel 4330., All Metals & Forge Group. N. p., 24 June 2015. Web. 10 Aug. (2016).

[4] Mangonon, P.L. Relative Hardenabilities and Interaction Effects of Mo and V in 4330 Alloy Steel., Metall. Trans., A; (United States) 13: 2, 1982: n. page 670.

DOI: 10.1007/bf02643323

[5] Krauss, George. Martensite in steel: strength and structure., Materials science and engineering: A 273, 1999: 40-57.

[6] Lin, Dongliang, Jiangsheng Wu, and Yun Lan. Influence of austenitizing temperature on stress corrosion in 4330m steel—The role of impurity segregation in stress corrosion cracking of high strength steel., Metallurgical Transactions A 19. 9, 1988: 2225-2231.

DOI: 10.1007/bf02645046

[7] Tomita, Y. Development of fracture toughness of ultrahigh strength, medium carbon, low alloy steels for aerospace applications., International materials reviews 45. 1, 2000: 27-37.

DOI: 10.1179/095066000771048791

[8] Tomita, Yoshiyuki. Improved lower temperature fracture toughness of ultrahigh strength 4340 steel through modified heat treatment., Metallurgical and Materials Transactions A 18. 8, 1987: 1495-1501.

DOI: 10.1007/bf02646661

[9] Hood, A., and R. Sproat. Ultrahigh-Strength Steel Fasteners., Structure and Properties of Ultrahigh-Strength Steels. ASTM International, 1965. page 208.

DOI: 10.1520/stp47123s

[10] Standard: BMS7-122, Consumable Electrode Vacuum Arc Re-melted 4330 Modified (AMS 6411) Steel, Boeing Material Specifications, April (1990).

[11] Standard, A. S. T. M. E8. Standard test method for tension testing of metallic materials. West Conshohocken (USA): ASTM., International, (2004).

[12] Standard, A. S. T. M. E18-12: Standard test methods for Rockwell hardness of metallic materials., ASTM International, West Conshohocken, PA (2012).

[13] R. Barrows, Revealing Prior Austenite Grain Boundaries of 4340 Steel,. Department of Materials Engineering, California Polytechnic State University, CA 2014. Page 11.

[14] Krauss, George. Steels: Processing, Structure, and Performance,. ASM International, second edition, 2015. p.27, 445.

[15] Donald R., Askeland, and Wendelin J., Wright. The Science and Engineering of Materials,. Cengage Learning, seventh edition, 2014. [p.449].

[16] R. Clark et al, On the Correlation of Mechanical and Physical Properties of 7075-T6 Al Alloy., Eng. Fail. Anal. Journal, V. 2, 2005, pp: 520-526.

[17] T. Oppenhium et al, On the Correlation of Mechanical and Physical Properties of 6061-T6 and 7249-T6 Aluminum Alloys., Eng. Fail. Anal. Journal, Vol. 14, No. 1, 2007, pp: 218-225.

[18] E.W. Lee, T. Oppenhium et al, The Effect of Thermal Exposure on the Electrical Conductivity and Static Mechanical Behavior of Several Age Hardenable Aluminum Alloys., Eng. Fail. Anal. Journal, Vol. 14, 2007, pp: 1538-1549.

[19] F. Aldhabib el al, Effect of Heat Treatment on Microstructure and Mechanical Properties of 15-5 PH Stainless Steel., To be submitted for publication.
