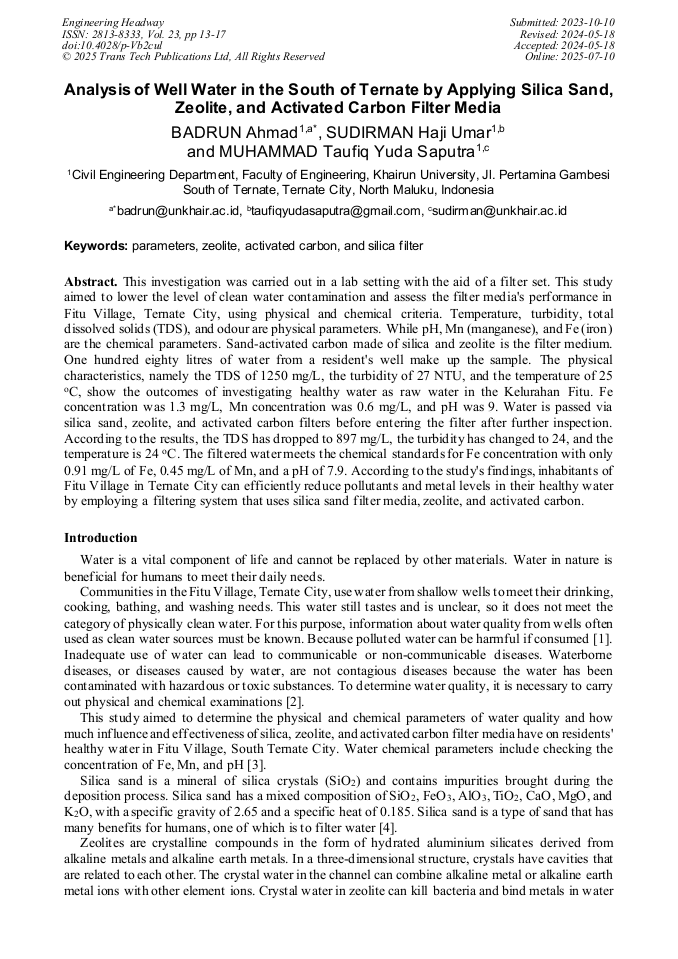

Analysis of well Water in the South of Ternate by Applying Silica Sand, Zeolite, and Activated Carbon Filter Media

Abstract:

This investigation was carried out in a lab setting with the aid of a filter set. This study aimed to lower the level of clean water contamination and assess the filter media's performance in Fitu Village, Ternate City, using physical and chemical criteria. Temperature, turbidity, total dissolved solids (TDS), and odour are physical parameters. While pH, Mn (manganese), and Fe (iron) are the chemical parameters. Sand-activated carbon made of silica and zeolite is the filter medium. One hundred eighty litres of water from a resident's well make up the sample. The physical characteristics, namely the TDS of 1250 mg/L, the turbidity of 27 NTU, and the temperature of 25 °C, show the outcomes of investigating healthy water as raw water in the Kelurahan Fitu. Fe concentration was 1.3 mg/L, Mn concentration was 0.6 mg/L, and pH was 9. Water is passed via silica sand, zeolite, and activated carbon filters before entering the filter after further inspection. According to the results, the TDS has dropped to 897 mg/L, the turbidity has changed to 24, and the temperature is 24 °C. The filtered water meets the chemical standards for Fe concentration with only 0.91 mg/L of Fe, 0.45 mg/L of Mn, and a pH of 7.9. According to the study's findings, inhabitants of Fitu Village in Ternate City can efficiently reduce pollutants and metal levels in their healthy water by employing a filtering system that uses silica sand filter media, zeolite, and activated carbon.

• Periodical: Engineering Headway (Volume 23)
• Pages: 13-17
• DOI: https://doi.org/10.4028/p-Vb2cul
• Online since: July 2025
• Authors: Badrun Ahmad*, Sudirman Haji Umar, Muhammad Taufiq Yuda Saputra
• Keywords: Carbon, Filter, Parameter, Silica, Zeolite

References

[1] A. Nargis., "Status of multielement in the water of the river Buriganga, Bangladesh: Aquatic chemistry of metal ions in polluted river water," Emerg Contam, vol. 7, p.99–115, Jan. 2021.

DOI: 10.1016/J.EMCON.2021.03.001

[2] C. L. Dunn and D. D. Pandya, "The Physical and Chemical Examination Of Water," The Chemistry and Bacteriology of Public Health, p.10–34, Jan. 2013.

DOI: 10.1016/B978-1-4831-6805-0.50007-1

[3] N. Kaczmarek., "Water quality, biological quality, and human well-being: Water salinity and scarcity in the Draa River basin, Morocco," Ecol Indic, vol. 148, p.110050, Apr. 2023.

DOI: 10.1016/J.ECOLIND.2023.110050

[4] A. Wang, L. Hu, J. Liu, M. Tian, and L. Yang, "Polyaniline-coated core-shell silica microspheres-based dispersive-solid phase extraction for detection of benzophenone-type UV filters in environmental water samples," Environmental Advances, vol. 3, p.100037, Apr. 2021.

DOI: 10.1016/J.ENVADV.2021.100037

[5] Md. M. Hasan, M. M. Haque, N. A. Hasan, A. Bashar, A. K. S. Ahammad, and M. T. Hossain, "Assessing the impacts of zeolite on water quality, growth performance, heavy metal content and health condition of farmed tilapia (Oreochromis niloticus)," Aquac Rep, vol. 31, p.101678, Aug. 2023.

DOI: 10.1016/J.AQREP.2023.101678

[6] Susilawati, Y. A. Sihombing, S. U. Rahayu, Y. Y. B. Sembiring, L. Waldiansyah, and M. Irma, "Filter material based on zeolite-activated charcoal from cocoa shells as ammonium adsorbent in greywater treatment," S Afr J Chem Eng, vol. 43, p.266–272, Jan. 2023.

DOI: 10.1016/J.SAJCE.2022.11.006

[7] E. S. Rigobello, A. D. B. Dantas, L. Di Bernardo, and E. M. Vieira, "Removal of diclofenac by conventional drinking water treatment processes and granular activated carbon filtration," Chemosphere, vol. 92, no. 2, p.184–191, Jun. 2013.

DOI: 10.1016/J.CHEMOSPHERE.2013.03.010

[8] O. Casas-Monroy, R. D. Linley, P. S. Chan, J. Kydd, J. Vanden Byllaardt, and S. Bailey, "Evaluating efficacy of filtration + UV-C radiation for ballast water treatment at different temperatures," J Sea Res, vol. 133, p.20–28, Mar. 2018.

DOI: 10.1016/J.SEARES.2017.02.001

[9] N. Finish, P. Ramos, E. J. C. Borojovich, O. Zeiri, Y. Amar, and M. Gottlieb, "Zeolite performance in removal of multicomponent heavy metal contamination from wastewater," J Hazard Mater, vol. 457, p.131784, Sep. 2023.

DOI: 10.1016/J.JHAZMAT.2023.131784

[10] Z. Meldha, I. Amri, M. Dandy Tito Angkoso, Y. Jumaga, and Drastinawati, "The utilization of silica sand and clay with the addition of sawdust as raw material for manufacturing ceramic membranes to reduce TSS and TDS levels of peat water," Mater Today Proc, Jun. 2023.

DOI: 10.1016/J.MATPR.2023.05.147
