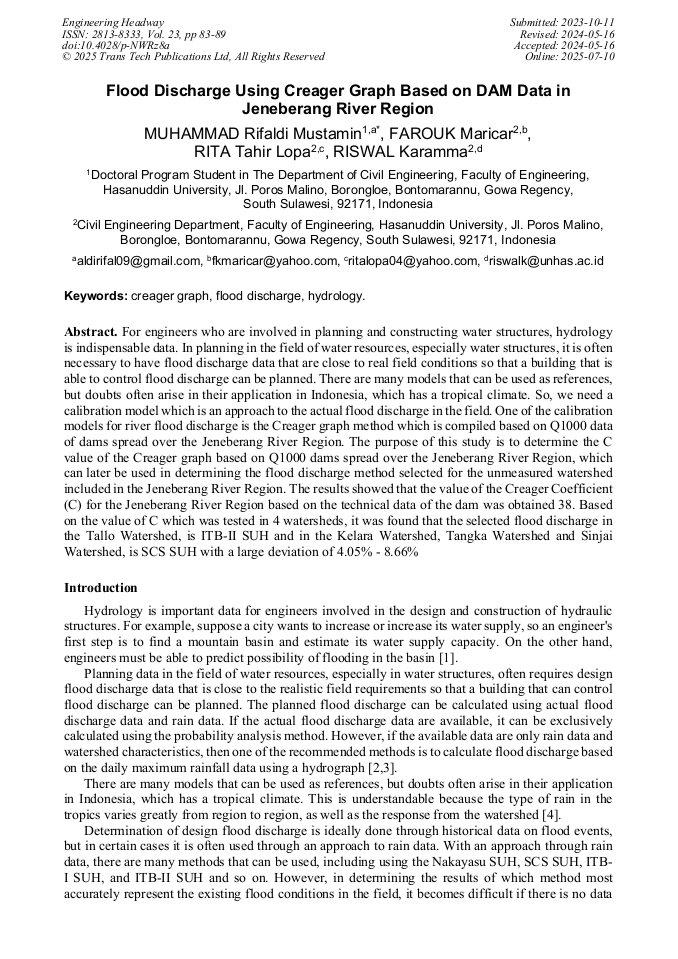

Flood Discharge Using Creager Graph Based on DAM Data in Jeneberang River Region

Abstract:

For engineers who are involved in planning and constructing water structures, hydrology is indispensable data. In planning in the field of water resources, especially water structures, it is often necessary to have flood discharge data that are close to real field conditions so that a building that is able to control flood discharge can be planned. There are many models that can be used as references, but doubts often arise in their application in Indonesia, which has a tropical climate. So, we need a calibration model which is an approach to the actual flood discharge in the field. One of the calibration models for river flood discharge is the Creager graph method which is compiled based on Q1000 data of dams spread over the Jeneberang River Region. The purpose of this study is to determine the C value of the Creager graph based on Q1000 dams spread over the Jeneberang River Region, which can later be used in determining the flood discharge method selected for the unmeasured watershed included in the Jeneberang River Region. The results showed that the value of the Creager Coefficient (C) for the Jeneberang River Region based on the technical data of the dam was obtained 38. Based on the value of C which was tested in 4 watersheds, it was found that the selected flood discharge in the Tallo Watershed, is ITB-II SUH and in the Kelara Watershed, Tangka Watershed and Sinjai Watershed, is SCS SUH with a large deviation of 4.05% - 8.66%.

• Periodical: Engineering Headway (Volume 23)
• Pages: 83-89
• DOI: https://doi.org/10.4028/p-NWRz8a
• Online since: July 2025
• Authors: Muhammad Rifaldi Mustamin*, Farouk Maricar, Rita Tahir Lopa, Riswal Karamma
• Keywords: Creager Graph, Flood Discharge, Hydrology

References

[1] E.M. Wilson, Hidrologi Teknik (Engineering Hydrology), fourth ed., Institut Teknologi Bandung, Bandung, 1990.

[2] R. Karamma and M.S. Pallu, Comparison of Model Hidrograf Synthetic Unit (HSS) With the Model of Hydrograf Observation on DAS Jeneberang Gowa Regency, Indonesia, Int. J. Innov. Sci. Res. Technol., 3(2) (2018) 617–623.

[3] A R. Suleman, H. Djufri, M.R. Mustamin, M. L. Palembangan, Structural Mitigation of Bila River, Sidrap Regency, Turkish J. Comput. Math. Educ., 12(6) (2021) 3573–3577.

[4] F. Maricar and S. Harto, The Sensitivity Analysis Gama I Synthetic Unit Hidrograph for Design Flood Determination), Forum Teknik 25(30) (2001) 315–328.

[5] A. Kurniawati, R. Musa, A. Mallombassi, M. Wellang, Kajian Debit Banjir di Wilayah Sungai Saddang Kabupaten Pinrang Sulawesi Selatan dengan Menggunakan Grafik Creager (Flood Discharge Study in the Saddang River Basin of Pinrang Regency, South Sulawesi Using Creager Graphs) , J. Flyover 1(2) (2021) 1 – 7.

DOI: 10.52103/jfo.v1i2.755

[6] I. G. Tunas, N. Anwar, U. Lasminto, The Improvement of Synthetic Unit Hydrograph Performance by Adjusting Model Parameters for Flood Prediction, Int. J. Eng. Technol., 9(2) (2017) 847–858.

DOI: 10.21817/ijet/2017/v9i2/170902163

[7] D.K. Natakusumah, W. Hatmoko, D. Harlan, Prosedur Umum Perhitungan Hidrograf Satuan Sintetis dengan Cara ITB dan Beberapa Contoh Penerapannya (General Procedure for Calculation of Synthetic Unit Hydrograph by ITB Method and Some Application Examples), J. Tek. Sipil 18(3) (2011) 251–291.

DOI: 10.5614/jts.2011.18.3.6

[8] I.M. Kamiana, Teknik Perhitungan Debit Rencana Bangunan Air (Waterworks Plan Discharge Calculation Technique), first ed., Graha Ilmu, Yogyakarta, 2011.

[9] S. Sosrodarsono and T. Kensaku, Bendungan Type Urugan (Fill Type Dam), fifth ed., PT. Pradnya Paramita, Jakarta, 2002.

[10] W.P. Creager, J.D. Justin, J. Hinds, Engineering For Dams, first ed., Wiley Eastern Private Limited, New Delhi, 1945.

[11] R.E. Nduru, M. Situmorang, G. Tarigan, Analisa Faktor-faktor yang Mempengaruhi Hasil Produksi Padi di Deli Serdang (Analysis of Factors Affecting Rice Production Yield in Deli Serdang), Saintia Matematika 2(1) (2014) 71–83.

DOI: 10.29259/jmbt.v18i2.15838

[12] M.R. Mustamin, F. Maricar, and R. Karamma, Hydrological Analysis In Selecting Flood Discharge Method In Watershed Of Kelara River, INTEK J. Penelitian 8(2) (2021) 141–150.

DOI: 10.31963/intek.v8i2.2874
