Fluid-Structure Interaction Analysis of Load Capacity Characteristics for Main Bearing Bush in Marine Low-Speed Engine

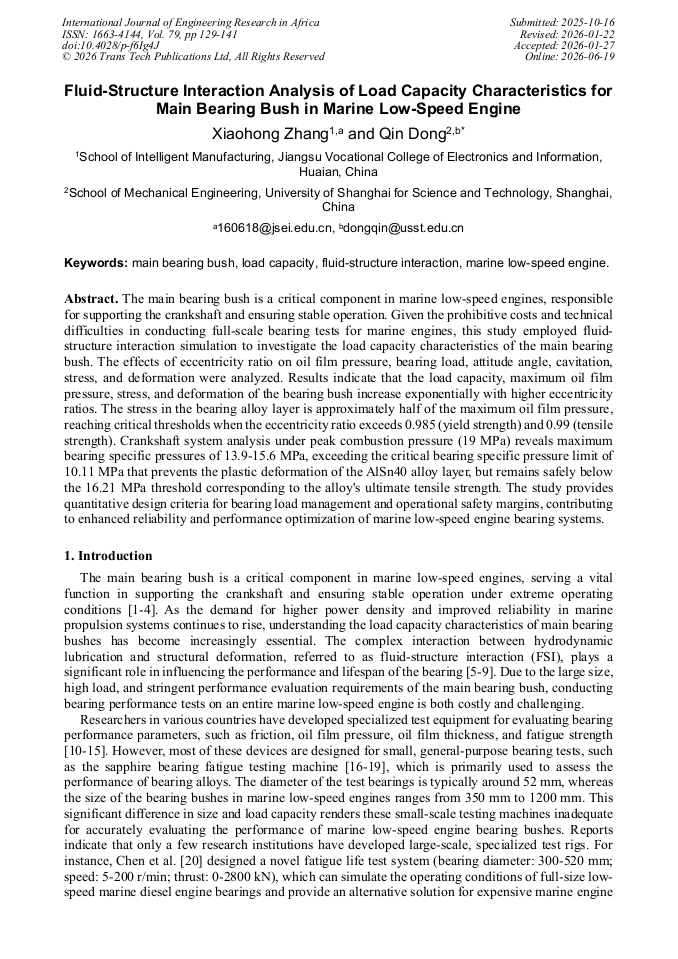

Article Preview

Abstract:

The main bearing bush is a critical component in marine low-speed engines, responsible for supporting the crankshaft and ensuring stable operation. Given the prohibitive costs and technical difficulties in conducting full-scale bearing tests for marine engines, this study employed fluid-structure interaction simulation to investigate the load capacity characteristics of the main bearing bush. The effects of eccentricity ratio on oil film pressure, bearing load, attitude angle, cavitation, stress, and deformation were analyzed. Results indicate that the load capacity, maximum oil film pressure, stress, and deformation of the bearing bush increase exponentially with higher eccentricity ratios. The stress in the bearing alloy layer is approximately half of the maximum oil film pressure, reaching critical thresholds when the eccentricity ratio exceeds 0.985 (yield strength) and 0.99 (tensile strength). Crankshaft system analysis under peak combustion pressure (19 MPa) reveals maximum bearing specific pressures of 13.9-15.6 MPa, exceeding the critical bearing specific pressure limit of 10.11 MPa that prevents the plastic deformation of the AlSn40 alloy layer, but remains safely below the 16.21 MPa threshold corresponding to the alloy's ultimate tensile strength. The study provides quantitative design criteria for bearing load management and operational safety margins, contributing to enhanced reliability and performance optimization of marine low-speed engine bearing systems.

You might also be interested in these eBooks
International Journal of Engineering Research in Africa Vol. 79 View Preview

Info:

Periodical:

International Journal of Engineering Research in Africa (Volume 79)

Pages:

129-141

DOI:

https://doi.org/10.4028/p-f6Ig4J

Citation:

Cite this paper

Online since:

June 2026

Authors:

Xiao Hong Zhang, Qin Dong*

Keywords:

Fluid-Structure Interaction, Load Capacity, Main Bearing Bush, Marine Low-Speed Engine

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] L. Chen, D.X. Xue, X.G. Song, Z.Q. He, D.J. Huang, A Study on Anti-Shock Performance of Marine Diesel Engine Based on Multi-Body Dynamics and Elastohydrodynamic Lubrication, Appl. Sci. 11 (2021) 11259.

DOI: 10.3390/app112311259

Google Scholar

[2] A. Voelund, P. Klit, S. Persson, Testing of bearing materials for large two-stroke marine diesel engines, Proc. Inst. Mech. Eng. Pt. J: J. Eng. Tribol. 231 (2017) 503-508.

DOI: 10.1177/1350650115597462

Google Scholar

[3] R. Chen, B. Zhao, T. He, L.Y. Tu, Z.L. Xie, N. Zhong, D.Q. Zou, Study on coupling transient mixed lubrication and time-varying wear of main bearing in actual operation of low-speed diesel engine, Tribol. Int. 191 (2024) 109159.

DOI: 10.1016/j.triboint.2023.109159

Google Scholar

[4] W.M.K. Helal, W. Guixin, S. Yanpan, Orthogonal Simulation Test for Evaluating Fretting Wear in Low-Speed Diesel Engine Connecting Rods, Int. J. Eng. Res. Afr. 74 (2025) 101-114.

DOI: 10.4028/p-Ua0q6f

Google Scholar

[5] X.L. Zhang, Y.K. Shen, J. Cui, T. Huang, G.Y. Gao, J. Cao, Dynamic Characteristics Analysis of Rubber-Plastic Double-Layer Water-Lubricated Journal Bearings Using a Fluid-Structure Interaction Method, J. Vib. Eng. Technol. 13 (2025) 389.

DOI: 10.1007/s42417-025-01958-8

Google Scholar

[6] N. Singh, P.K. Agarwal, Effects of geometric parameters' variations on bump foil bearing performance using fluid-structure interaction and response surface method, Mech. Based Des. Struct. Mach. (2025) 1-25.

DOI: 10.1080/15397734.2025.2547285

Google Scholar

[7] H. Kamat, C.R. Kini, B.S. Shenoy, Fluid-structure interaction analysis and density-based topology optimization of single pad externally adjustable fluid film bearing operating in high-speed application, Ain Shams Eng. J. 16 (2025) 103203.

DOI: 10.1016/j.asej.2024.103203

Google Scholar

[8] C.X. Jiao, Y.Z. Yang, X.B. Zhang, L. Xue, D.L. Zou, J.H. Xu, N. Ta, Z.S. Rao, Mixed lubrication characteristics of multi-layer composite structure water-lubricated stern bearing considering fluid-structure interaction and journal misalignment effects, Phys. Fluids 37 (2025) 053601.

DOI: 10.1063/5.0266059

Google Scholar

[9] Z. Xie, J. Jiao, S. Wrona, The fluid-structure interaction lubrication performances of a novel bearing: Experimental and numerical study, Tribol. Int. 179 (2023) 108151.

DOI: 10.1016/j.triboint.2022.108151

Google Scholar

[10] H. Allmaier, C. Priestner, C. Six, H.H. Priebsch, C. Forstner, F. Novotny-Farkas, Predicting friction reliably and accurately in journal bearings - A systematic validation of simulation results with experimental measurements, Tribol. Int. 44 (2011) 1151-1160.

DOI: 10.1016/j.triboint.2011.05.010

Google Scholar

[11] C. Priestner, H. Allmaier, H.H. Priebsch, C. Forstner, Refined simulation of friction power loss in crank shaft slider bearings considering wear in the mixed lubrication regime, Tribol. Int. 46 (2012) 200-207.

DOI: 10.1016/j.triboint.2011.03.012

Google Scholar

[12] D.E. Sander, H. Allmaier, H.H. Priebsch, F.M. Reich, M. Witt, T. Füllenbach, A. Skiadas, L. Brouwer, H. Schwarze, Impact of high pressure and shear thinning on journal bearing friction, Tribol. Int. 81 (2015) 29-37.

DOI: 10.1016/j.triboint.2014.07.021

Google Scholar

[13] M. Ebner, M. Yilmaz, T. Lohner, K. Michaelis, B.R. Höhn, K. Stahl, On the effect of starved lubrication on elastohydrodynamic (EHL) line contacts, Tribol. Int. 118 (2018) 515-523.

DOI: 10.1016/j.triboint.2017.06.004

Google Scholar

[14] H. Li, H. Liu, S.M. Qi, Y. Liu, A high-speed rolling bearing test rig supported by sliding bearing, Ind. Lubr. Tribol. 72 (2020) 955-959.

DOI: 10.1108/ilt-03-2020-0085

Google Scholar

[15] M. Yu, J. Zhang, A. Joedicke, T. Reddyhoff, Experimental investigation into the effects of diesel dilution on engine lubrication, Tribol. Int. 156 (2021) 106828.

DOI: 10.1016/j.triboint.2022.107751

Google Scholar

[16] N. Ding, H.L. Li, Z.W. Yin, F.M. Jiang, A novel method for journal bearing degradation evaluation and remaining useful life prediction under different working conditions, Measurement 177 (2021) 109273.

DOI: 10.1016/j.measurement.2021.109273

Google Scholar

[17] A. Vencl, A. Rac, Diesel engine crankshaft journal bearings failures: Case study, Eng. Fail. Anal. 44 (2014) 217-228.

DOI: 10.1016/j.engfailanal.2014.05.014

Google Scholar

[18] P.G. Grützmacher, A. Rosenkranz, A. Szurdak, F. König, G. Jacobs, G. Hirt, F. Mücklich, From lab to application - Improved frictional performance of journal bearings induced by single- and multi-scale surface patterns, Tribol. Int. 127 (2018) 500-508.

DOI: 10.1016/j.triboint.2018.06.036

Google Scholar

[19] M. Söderfjäll, A. Almqvist, R. Larsson, Component test for simulation of piston ring – Cylinder liner friction at realistic speeds, Tribol. Int. 104 (2016) 57-63.

DOI: 10.1016/j.triboint.2016.08.021

Google Scholar

[20] G.K. Chen, Y.Y. Wang, N. Zhong, Z.Y. Fan, G.X. Wang, Design and research of a heavy load fatigue test system based on hydraulic control for full-size marine low-speed diesel engine bearings, Ocean Eng. 288 (2023) 116174.

DOI: 10.1016/j.oceaneng.2023.116174

Google Scholar

[21] E. Ciulli, P. Forte, M. Libraschi, M. Nuti, Set-up of a novel test plant for high power turbomachinery tilting pad journal bearings, Tribol. Int. 127 (2018) 276-287.

DOI: 10.1016/j.triboint.2018.06.014

Google Scholar

[22] M. Wodtke, W. Litwin, Water-lubricated stern tube bearing - experimental and theoretical investigations of thermal effects, Tribol. Int. 153 (2021) 106608.

DOI: 10.1016/j.triboint.2020.106608

Google Scholar

[23] H.U. Jamali, H.S.S. Aljibori, J. Muhsin Jaber, M.N. Mohammed, O.I. Abdullah, J. Schlattmann, Frictional power loss in journal bearing considering parabolic shape for the bearing edges under misalignment, Adv. Mech. Eng. 16 (2024).

DOI: 10.1177/16878132241282522

Google Scholar

[24] A.A. Schmidt, T. Schmidt, O. Grabherr, D. Bartel, Transient wear simulation based on three-dimensional finite element analysis for a dry running tilted shaft-bushing bearing, Wear 408-409 (2018) 171-179.

DOI: 10.1016/j.wear.2018.05.008

Google Scholar

[25] R. Adduci, M. Vermaut, M. Perrelli, F. Cosco, S. Vanpaemel, F. Naets, D. Mundo, A review of bushing modelling approaches for MultiBody simulations, Mech. Mach. Theory 191 (2024) 105496.

DOI: 10.1016/j.mechmachtheory.2023.105496

Google Scholar

[26] S.M.S. Mukras, Influence of Geometric Parameters on Journal Bearing Wear: A Finite Element Analysis and Elastic Foundation Approach, Appl. Sci. 15 (2025) 2368.

DOI: 10.3390/app15052368

Google Scholar

[27] M. Wodtke, A. Olszewski, M. Wasilczuk, Application of the fluid-structure interaction technique for the analysis of hydrodynamic lubrication problems, Proc. Inst. Mech. Eng. Pt. J: J. Eng. Tribol. 227 (2013) 888-897.

DOI: 10.1177/1350650113481147

Google Scholar

[28] Q.Y. Lin, Z.Y. Wei, N. Wang, W. Chen, Analysis on the lubrication performances of journal bearing system using computational fluid dynamics and fluid-structure interaction considering thermal influence and cavitation, Tribol. Int. 64 (2013) 8-15.

DOI: 10.1016/j.triboint.2013.03.001

Google Scholar

[29] M. Geller, C. Schemmann, N. Kluck, Simulation of radial journal bearings using the FSI approach and a multi-phase model with integrated cavitation, Prog. Comput. Fluid Dyn. 14 (2014) 14-23.

DOI: 10.1504/pcfd.2014.059196

Google Scholar

[30] D.Y. Dhande, D.W. Pande, Multiphase flow analysis of hydrodynamic journal bearing using CFD coupled Fluid Structure Interaction considering cavitation, J. King Saud Univ. - Eng. Sci. 30 (2018) 345-354.

DOI: 10.1016/j.jksues.2016.09.001

Google Scholar

[31] Q. Dong, Z.W. Yin, H.L. Li, G.Y. Gao, N. Zhong, Y.H. Chen, Simulation and experimental verification of fatigue strength evaluation of journal bearing bush, Eng. Fail. Anal. 109 (2020) 104275.

DOI: 10.1016/j.engfailanal.2019.104275

Google Scholar

[32] Z.L. Xie, J. Jiao, K. Yang, Investigation on the Fluid-structure Interaction Dynamic Behaviors of Water Lubricated Sandwich Bearing, J. Mech. Eng. 59 (2023) 86-97.

DOI: 10.3901/JME.2023.03.086

Google Scholar

[33] P. Xia, X.F. Jin, W.L. Song, Y.Q. Liang, S.C. Xu, J.B. Liu, Z.S. Liu, W.S. Ma, A novel transient computational fluid dynamics-fluid-structure interaction model for the pad adaptive motion and rotordynamic coefficients of hybrid porous tilting pad bearings, Proc. Inst. Mech. Eng. Pt. J: J. Eng. Tribol. 238 (2024) 615-637.

DOI: 10.1177/13506501241227708

Google Scholar

[34] Z.L. Xie, Y.X. Tian, S.M. Liu, W.S. Ma, W.J. Gao, P. Du, B. Zhao, Fluid-structure interaction analysis of a novel water-lubricated bearing with particle-dynamic effect: Theory and experiment, Tribol. Int. 204 (2025) 110474.

DOI: 10.1016/j.triboint.2024.110474

Google Scholar

[35] X.L. Zhang, Z.W. Yin, J. Dan, G.Y. Gao, Y.Z. Wang, X.B. Wang, Load carrying capacity of misaligned hydrodynamic water-lubricated plain journal bearings with rigid bush materials, Tribol. Int. 99 (2016) 1-13.

DOI: 10.1016/j.triboint.2016.02.038

Google Scholar

[36] R. Gao, Y.H. Chen, Development of Home-Made High Performance AlSn40-Steel Bimetal Bearing Plating, Diesel Engine 41 (2019) 49-53+56.

Google Scholar
