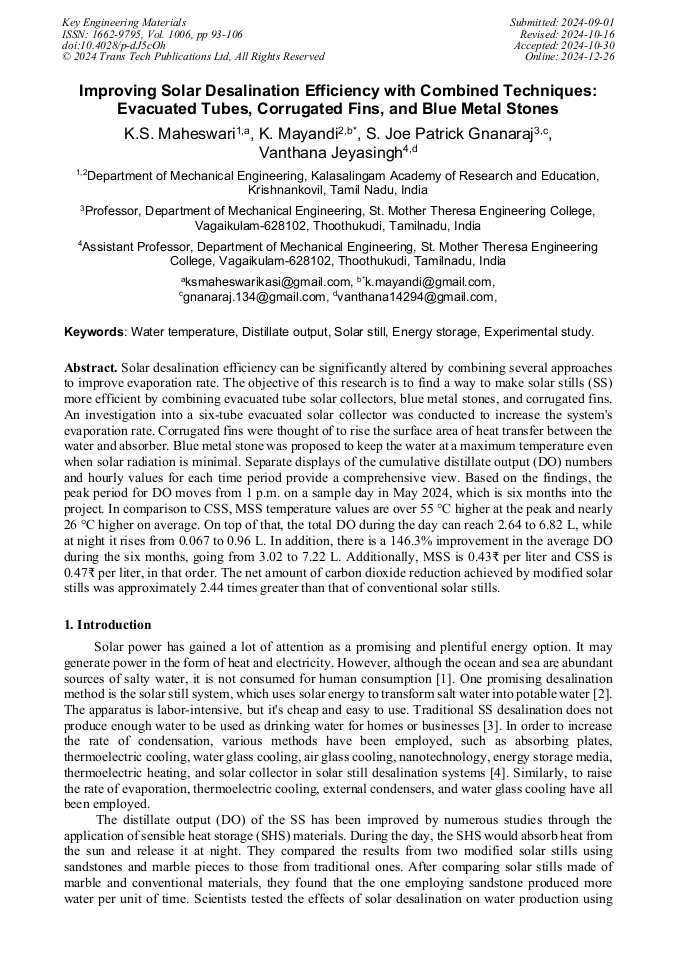

Improving Solar Desalination Efficiency with Combined Techniques: Evacuated Tubes, Corrugated Fins, and Blue Metal Stones

Abstract:

Solar desalination efficiency can be significantly altered by combining several approaches to improve evaporation rate. The objective of this research is to find a way to make solar stills (SS) more efficient by combining evacuated tube solar collectors, blue metal stones, and corrugated fins. An investigation into a six-tube evacuated solar collector was conducted to increase the system's evaporation rate. Corrugated fins were thought of to rise the surface area of heat transfer between the water and absorber. Blue metal stone was proposed to keep the water at a maximum temperature even when solar radiation is minimal. Separate displays of the cumulative distillate output (DO) numbers and hourly values for each time period provide a comprehensive view. Based on the findings, the peak period for DO moves from 1 p.m. on a sample day in May 2024, which is six months into the project. In comparison to CSS, MSS temperature values are over 55 °C higher at the peak and nearly 26 °C higher on average. On top of that, the total DO during the day can reach 2.64 to 6.82 L, while at night it rises from 0.067 to 0.96 L. In addition, there is a 146.3% improvement in the average DO during the six months, going from 3.02 to 7.22 L. Additionally, MSS is 0.43₹ per liter and CSS is 0.47₹ per liter, in that order. The net amount of carbon dioxide reduction achieved by modified solar stills was approximately 2.44 times greater than that of conventional solar stills.

• Periodical: Key Engineering Materials (Volume 1006)
• Pages: 93-106
• DOI: https://doi.org/10.4028/p-dJ5cOh
• Online since: December 2024
• Authors: Kasi S. Maheswari, K. Mayandi*, S. Joe Patrick Gnanaraj, Vanthana Jeyasingh
• Keywords: Distillate Output, Energy Storage, Experimental Study, Solar Still, Water Temperature

References

[1] A. Dubey, S. Kumar, and A. Arora, Enviro-energy-exergo-economic analysis of ETC augmented double slope solar still with 'N' parallel tubes under forced mode: Environmental and economic feasibility," Journal of Clean Prod, 279 (2021) 123859.

DOI: 10.1016/j.jclepro.2020.123859

[2] T. A. H. Almajali, F. B. Ismail, P. A. L. Gunnasegaran, S. M. Al Shurafa, and H. A. Kazem, Exploring the Future of Solar Stills: Recent Breakthroughs in Performance Enhancement, Separation and Purification Reviews, (2024).

DOI: 10.1080/15422119.2024.2366879

[3] A. Samuel, J. Brizuela, K.-C. Chang, and C.-T. Lin, Design and Investigation of an Effective Solar Still Applicable to Remote Islands, Water (Switzerland), 14 (2022) 1-17.

DOI: 10.3390/w14050703

[4] V. S. Gupta, V. K. Dwivedi, R. K. Mishra, and P. Gupta, Typical expression of double slope distiller unit incorporated with PVT-CPC, Mater Today Proc, 57 (2022) 1955–1961.

DOI: 10.1016/j.matpr.2021.10.125

[5] D. Singh, A. Kumar Yadav, and A. Kumar, Energy matrices and life cycle conversion analysis of N-identical hybrid double slope solar distiller unit using Al2O3 nanoparticle, Journal of Water and Environmental Nanotechnology, 8 (2023) 267–284.

[6] A. R. Lakshmipathi, Shear strength, wear, thermal conductivity, and hydrophobicity behavior of fox millet husk biosilica and Amaranthus dubius stem fiber–reinforced epoxy composite: a concept of biomass conversion, Biomass Convers Biorefin, 2023.

DOI: 10.1007/s13399-023-04854-x

[7] G. Nagpal and D. B. Singh, Improving exergo-enviro-economic parameters and annual productivity of double slope solar desalting unit by incorporating concentrator integrated evacuated tubular collectors, Desalination Water Treat, 306 (2023) 9–21.

DOI: 10.5004/dwt.2023.29796

[8] P. Gupta, Recent Progress in the Design of Solar Still: An Understanding and Comparison, in Lecture Notes in Mechanical Engineering, (2023) 103–119.

[9] R. Girimurugan, C. Shilaja, A. Ranjithkumar, R. Karthikeyan, and S. Mayakannan, Numerical Analysis of Exhaust Gases Characteristics in Three-Way Catalytic Convertor Using CFD, in AIP Conference Proceedings, 2023.

DOI: 10.1063/5.0150561

[10] A. K. Singh, Mathematical analysis of optimized requisites for novel combination of solar distillers, Journal of Engineering Research (Kuwait),11 (4) (2023) 515–525.

DOI: 10.1016/j.jer.2023.100121

[11] K. K. Murugavel, S. Sivakumar, J. R. Ahamed, Kn. K. S. K. Chockalingam, and K. Srithar, Single basin double slope solar still with minimum basin depth and energy storing materials, Applied Energy, 87 (2) (2010) 514–523.

DOI: 10.1016/j.apenergy.2009.07.023

[12] P. Muruganandhan, Investigation on silane modification and interfacial UV aging of flax fibre reinforced with polystyrene composite, Material Today Proceedings, (2023).

DOI: 10.1016/j.matpr.2023.03.272

[13] N. R. Ismail, P. Suwandono, D. Hermawan, and F. D. Anggraeni, Identifying Enhancement of Double Slope Solar Still Performance by Adding Water Cooling to Walls, Eastern-European Journal of Enterprise Technologies, 3, 8(129) (2024) 33–44.

DOI: 10.15587/1729-4061.2024.302728

[14] S. Mayakannan, Analysis of Spectroscopic, Morphological Characterization and Interaction of Dye Molecules for the Surface Modification of TiB2Nanoparticles, Journal of Nanomater, 2022 (2022).

[15] S. S. Tuly, R. Hassan, B. K. Das, and M. R. I. Sarker, Investigating the energetic, exergetic, and sustainability aspects of a solar still integrating fins, wick, phase change materials, and external condenser, Journal of Energy Storage, 55 (2022).

DOI: 10.1016/j.est.2022.105462

[16] P. Satishkumar, G. Gokila Krishnan, S. Seenivasan, and P. Rajarathnam, A study on tribological evaluation of hybrid aluminium metal matrix for thermal application, in Materials Today: Proceedings, (2021) 1097–1104.

DOI: 10.1016/j.matpr.2021.04.389

[17] R. Girimurugan, M. A. Logesh Kumar, B. Manikandan, C. Shilaja, and S. Mayakannan, Static and Total Pressure Analysis of Three Way Catalytic Convertor using CFD, in ECS Transactions, (2022) 7381–7387.

DOI: 10.1149/10701.7381ecst

[18] M. E. Murad, W. H. Alawee, and H. A. Dhahad, Advanced techniques for augmenting the performance of double-slope solar stills: A ‎comparative study, Desalination Water Treatment, 320 (2024).

DOI: 10.1016/j.dwt.2024.100581

[19] S. V Kuchampudi, Analysis of sustainable groundwater management policies for urban development, Environmental Quality Management (2023).

[20] S. S. Tuly, M. S. Rahman, M. R. I. Sarker, and R. A. Beg, Combined influence of fin, phase change material, wick, and external condenser on the thermal performance of a double slope solar still, Journal of Clean Products, 287(2021).

DOI: 10.1016/j.jclepro.2020.125458

[21] A. K. Kaviti, V. R. Naike, A. S. Ram, and A. K. Thakur, Energy and exergy analysis of a truncated and parabolic finned double slope solar stills, International Journal of Ambient Energy, 43(1) (2022) 6210–6223.

DOI: 10.1080/01430750.2021.2009368

[22] R. Girimurugan, Application of Deep Learning to the Prediction of Solar Irradiance through Missing Data, International Journal of Photoenergy (2023).

[23] A. K. Kaviti, V. R. Naike, A. S. Ram, S. Hussain, and A. A. Kumari, Energy and exergy analysis of double slope solar still with aluminium truncated conic fins, in Materials Today: Proceedings, (2021) 5387–5394.

DOI: 10.1016/j.matpr.2021.02.047

[24] S. Dhaoui, Experimental investigation of the effect of angled fins on the energy and exergy efficiencies of solar stills: A comparison between double slope and pyramid solar stills under Tunisia weather conditions, Process Safety and Environmental Protection,188 (2024) 1069–1080.

DOI: 10.1016/j.psep.2024.06.029

[25] S. S. Tuly, M. S. Islam, R. Hassan, B. K. Das, and M. R. I. Sarker, Investigation of a modified double slope solar still integrated with nanoparticle-mixed phase change materials: Energy, exergy, exergo-economic, environmental, and sustainability analyses, Case Studies in Thermal Engineering, 37 (2022).

DOI: 10.1016/j.csite.2022.102256

[26] W. H. Alawee, H. A. Dhahad, and T. A. Mohammad, Enhancement of solar still productivity using absorber plate with inclined perforated rectangular fins: An experimental study with economic analysis, Desalination Water Treatment, 213 (2021) 53–63.

DOI: 10.5004/dwt.2021.26730

[27] A. K. Kaviti, B. Mary, and A. S. Ram, Effect of Truncated Conic Fins in Distillate of Double Slope Solar Still, in Lecture Notes in Mechanical Engineering, (2022) 457–467.

DOI: 10.1007/978-981-16-7282-8_33

[28] S. Kumaravel, M. Nagaraj, and G. Bharathiraja, Experimental investigation on the performance analysis of blue metal stones and pebble stones as thermal energy storage materials in single slope solar still, in Materials Today: Proceedings, (2023) 430–435.

DOI: 10.1016/j.matpr.2022.11.100

[29] S. S. Tuly, A. B. S. Ayon, R. Hassan, B. K. Das, R. H. Khan, and M. R. I. Sarker, Performance investigation of active double slope solar stills incorporating internal sidewall reflector, hollow circular fins, and nanoparticle-mixed phase change material, Journal of Energy Storage, 55 (2022).

DOI: 10.1016/j.est.2022.105660

[30] R. P. Arani, S. Vaithilingam, K. Selvaraj, and A. Afzal, Experimental studies of solar still with tar-coated blue metal stones: Energy and exergy study, Environmental Progress & Sustainable Energy, 42 (2) (2023).

DOI: 10.1002/ep.13997
