Development and Validation of a Cost-Effective Rotary Friction Welding Machine by Repurposing a J23 Mechanical Press Frame

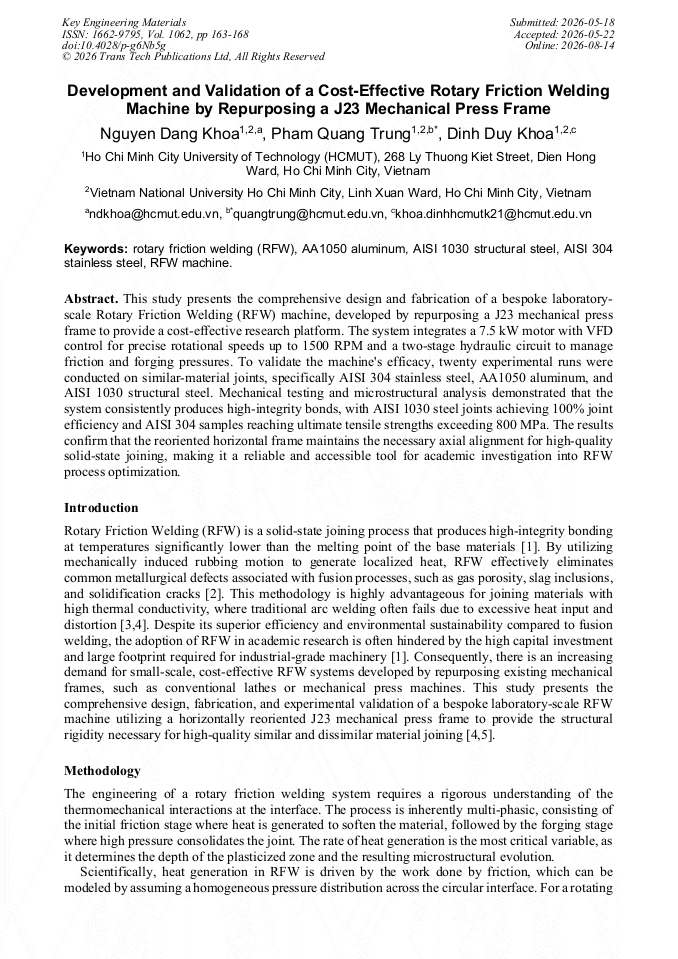

Article Preview

Abstract:

This study presents the comprehensive design and fabrication of a bespoke laboratory-scale Rotary Friction Welding (RFW) machine, developed by repurposing a J23 mechanical press frame to provide a cost-effective research platform. The system integrates a 7.5 kW motor with VFD control for precise rotational speeds up to 1500 RPM and a two-stage hydraulic circuit to manage friction and forging pressures. To validate the machine's efficacy, twenty experimental runs were conducted on similar-material joints, specifically AISI 304 stainless steel, AA1050 aluminum, and AISI 1030 structural steel. Mechanical testing and microstructural analysis demonstrated that the system consistently produces high-integrity bonds, with AISI 1030 steel joints achieving 100% joint efficiency and AISI 304 samples reaching ultimate tensile strengths exceeding 800 MPa. The results confirm that the reoriented horizontal frame maintains the necessary axial alignment for high-quality solid-state joining, making it a reliable and accessible tool for academic investigation into RFW process optimization.

You might also be interested in these eBooks
Functional Materials and Processing Technologies, Condensed Matter Physics and Thermal Engineering View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1062)

Pages:

163-168

DOI:

https://doi.org/10.4028/p-g6Nb5g

Citation:

Cite this paper

Online since:

August 2026

Authors:

Nguyen Dang Khoa, Pham Quang Trung*, Dinh Duy Khoa

Keywords:

AA1050 Aluminum, AISI 1030 Structural Steel, AISI 304 Stainless Steel, RFW Machine, Rotary Friction Welding (RFW)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Jithin, M., Devadasan, N., & Ajithkumar, J. P. (2025). Design and Development of a Bespoke Rotary Friction Welding Machine in Exploration of Joining Dissimilar Materials for Nuclear Applications. Journal of Manufacturing and Materials Processing.

DOI: 10.3390/jmmp9010027

Google Scholar

[2] Zhang S, Xie F, Wu X, Luo J, Li W, Yan X. The Microstructure Evolution and Mechanical Properties of Rotary Friction Welded Duplex Stainless Steel Pipe. Materials 2023.

DOI: 10.3390/ma16093569

Google Scholar

[3] Tran, V. H., Ta, V. R., Tran, T. V. N., & Le, H. K. (2022). Research and Test of the Self-Designed and Manufactured Rotary Friction Welding Machine with CT3 Steel Samples. Engineering Innovations.

DOI: 10.4028/p-rod566

Google Scholar

[4] Alves, E. P., Neto, F. P., & An, C. Y. (2010). Welding of AA1050 aluminum with AISI 304 stainless steel by rotary friction welding process. Journal of Aerospace Technology and Management.

DOI: 10.5028/jatm.2010.02037110

Google Scholar

[5] Raza, M. A., Hussain, A., Malik, R. A., Abid, F., & Bilal, A. S. S. (2023). Mechanical Characterization of Rotary Friction Welded Dissimilar Aluminium Alloys. MATEC Web of Conferences.

DOI: 10.1051/matecconf/202338102005

Google Scholar

[6] Pham, Q. T., Dinh, D. K., & Nguyen, G. L. (2025). Development of Numerical Model for the Rotary Friction Welding Process Using Aluminum Alloy. Defect and Diffusion Forum.

DOI: 10.4028/p-sr4py0

Google Scholar

[7] Pham, Q. T., Dinh, D. K., & Nguyen, G. L. (2025). Rotary Friction Welding of AA6061 Aluminum Alloy: An Experimental and Simulation Investigation. Defect and Diffusion Forum.

DOI: 10.4028/p-0cqlcr

Google Scholar
