Paper Titles

Effect of Residual, Impurity Elements and Microstructure, on the Mechanical Properties and the Crack Growth Rate in Delayed Failure Test of Martensitic Fe-Ni Alloy
p.2037

Stess Corrosion Testing of Al-Zn-Mg Alloys
p.2051

The Intergranular Corrosion Resistance of 17% Cr Ferritic Stainless Steels when Overheated
p.2063

Electrochemical Study of the Corrosion Fatigue of Low Alloy Steels in Aqueous Solutions Containing Carbonate-Bicarbonate Ions
p.2071

Stress Corrosion Cracking of High Strength Al-Cu-Mg-Si Alloys after Two-Step Aging
p.2081

The Effects of Stress Ratio on Corrosion Fatigue Crack Growth of a High Strength Steel
p.2089

Effect of Environmental Media on Stress Corrosion Cracking of High Strength Steel 37 SiMnCrMoV
p.2097

Stress Corrosion Cracking of Welded Joints in Caustic and Nitrate Solutions
p.2103

Subcritical Propagation of Sc-Crack of Welded Joints in Caustic and Nitrate Solutions
p.2111

HomeKey Engineering MaterialsKey Engineering Materials Vols. 20-28Stress Corrosion Cracking of High Strength...

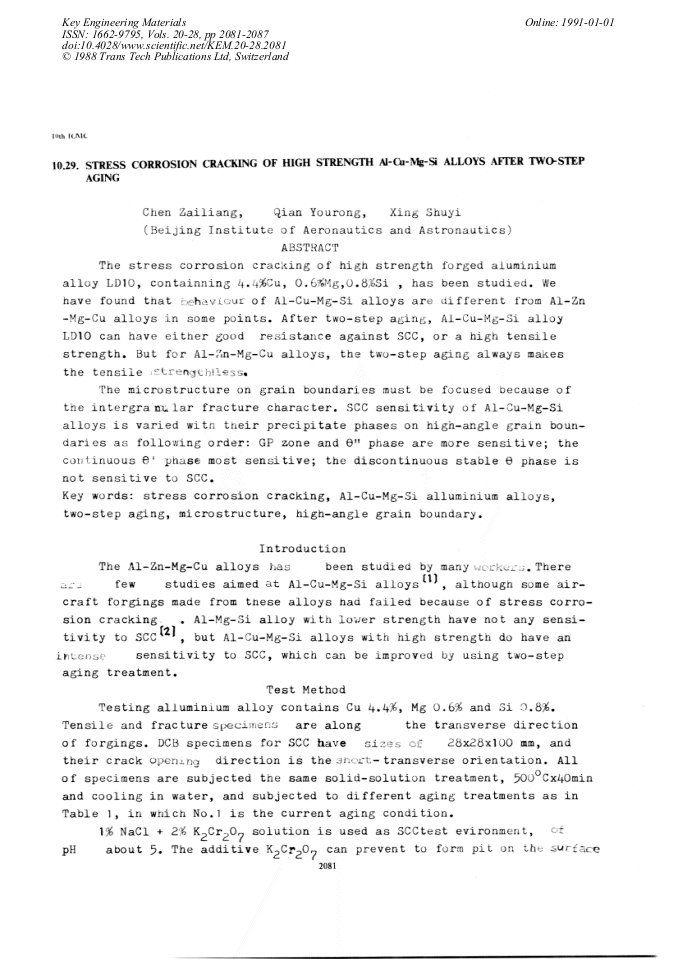

Stress Corrosion Cracking of High Strength Al-Cu-Mg-Si Alloys after Two-Step Aging

Article Preview

Abstract:

You might also be interested in these eBooks

10. International Congress on Metallic Corrosion Part 1

Info:

Periodical:

Key Engineering Materials (Volumes 20-28)

Pages:

2081-2087

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.20-28.2081

Citation:

Cite this paper

Online since:

January 1988

Authors:

Zai Liang Chen, You Rong Qian, Shu Yi Xing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 1988 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:
