Prediction of the Onset and Time-to-Failure for Hydrogen Stress Cracking of Line-Pipe Steel
p.2291
p.2291
Environmental Effects on High Temperature Crack Growth
p.2301
p.2301
Anomalous Isotope Effects during Hydrogen Embrittlement of Structural Materials in Electrolytes
p.2321
p.2321
Hydrogen Pick-up during Corrosion of Steel: Influence of Inhibitors and Promoters
p.2327
p.2327
A Study of Alkali Embrittlement Cracking of Low Carbon Steel Welded Joints
p.2337
p.2337
Hydrogen Induced Cracking Susceptibility of Low Strength Steels with Different Phosphorus Content in Acid Media
p.2347
p.2347
Hydrogen Embrittlement Behaviour of Ni-Nb-Cr and Ni-Nb-Al Amorphous Alloys
p.2355
p.2355
The Mechanism of Impeding the Hydrogenation of Cathodically Polarized Titanium by Anions of Hypochlorite and Chlorate
p.2363
p.2363
The Effect of Minor Additions Mn, Cr, Zr and Ti on the Hydrogen Embrittlement in Al-Zn-Mg-Cu Alloy
p.2369
p.2369

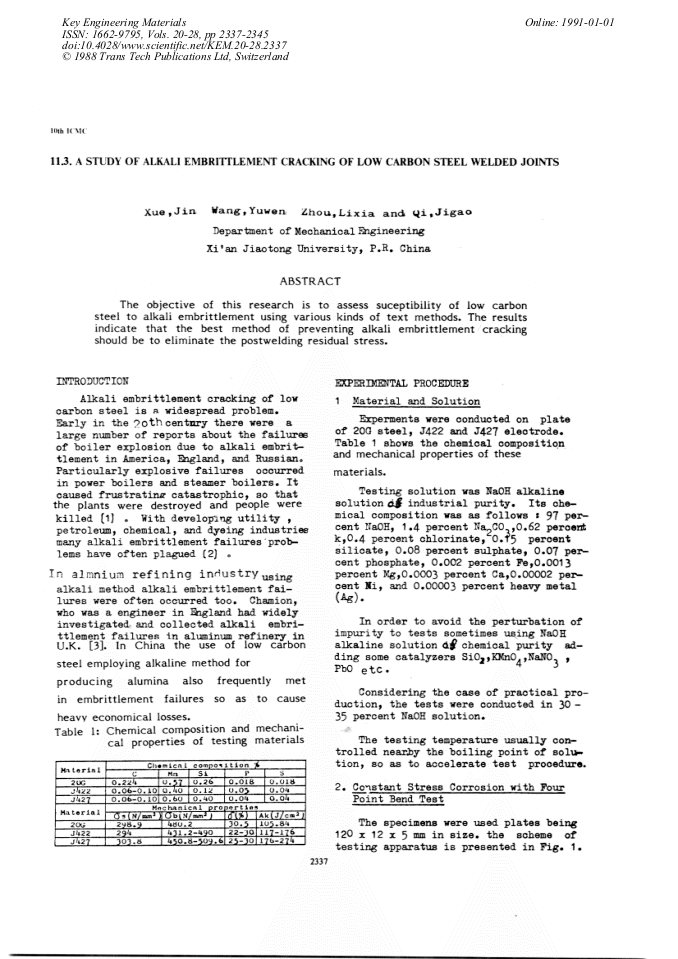

A Study of Alkali Embrittlement Cracking of Low Carbon Steel Welded Joints
Abstract:
You might also be interested in these eBooks
Info:
Periodical:
Key Engineering Materials (Volumes 20-28)
Pages:
2337-2345
Citation:
Online since:
January 1988
Authors:
Price:
Сopyright:
© 1988 Trans Tech Publications Ltd. All Rights Reserved
Share:
Citation:
