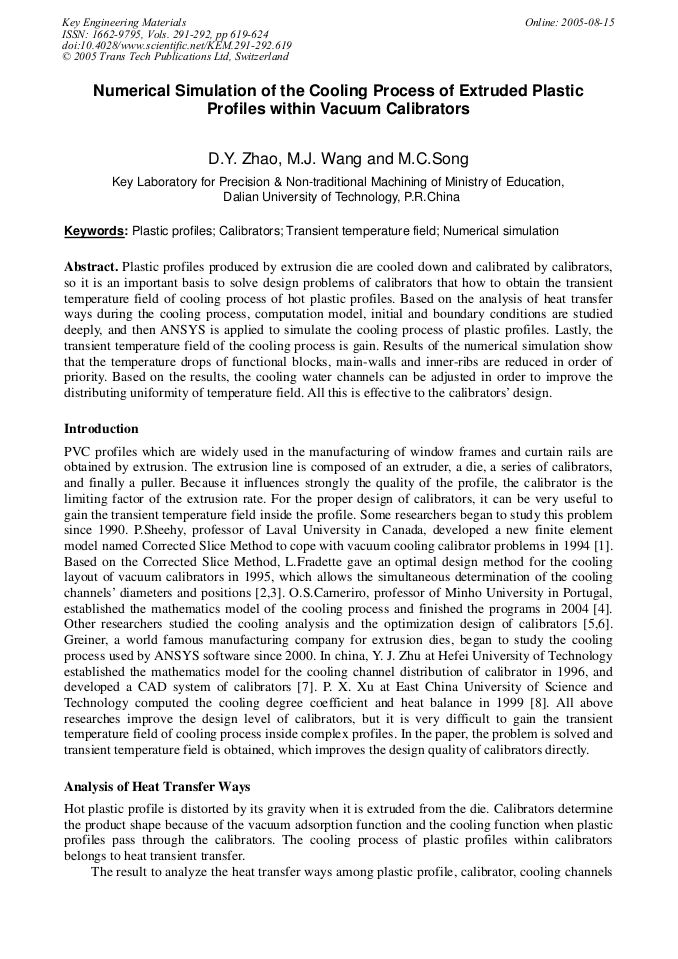

Numerical Simulation of the Cooling Process of Extruded Plastic Profiles within Vacuum Calibrators

Abstract:

Plastic profiles produced by extrusion die are cooled down and calibrated by calibrators, so it is an important basis to solve design problems of calibrators that how to obtain the transient temperature field of cooling process of hot plastic profiles. Based on the analysis of heat transfer ways during the cooling process, computation model, initial and boundary conditions are studied deeply, and then ANSYS is applied to simulate the cooling process of plastic profiles. Lastly, the transient temperature field of the cooling process is gain. Results of the numerical simulation show that the temperature drops of functional blocks, main-walls and inner-ribs are reduced in order of priority. Based on the results, the cooling water channels can be adjusted in order to improve the distributing uniformity of temperature field. All this is effective to the calibrators’ design.

• Periodical: Key Engineering Materials (Volumes 291-292)
• Pages: 619-624
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.291-292.619
• Online since: August 2005
• Authors: D.Y. Zhao, Min Jie Wang, M.C. Song
• Keywords: Calibrators, Numerical Simulation, Plastic Profiles, Transient Temperature Field

References

[1] P. Sheehy, P. A. Tanguya: Polymer Engineering and Science, Vol. 34 (1994), No. 8, pp.650-656.

[2] L. Fradette, P. A. Tanguy: Journal of Polymer Engineering, Vol. 14 (1995), No. 4, pp.295-322.

[3] L. Fradette, P. A. Tanguy: Heat Fluid Flow, Vol. 6 (1996), No. 2, pp.3-12.

[4] O. S. Carneriro, J. M. Nobrega: Annual technical conference ANTEC2004, Vol. 1 (2004), pp.251-255.

[5] H. Potente: Annual technical conference ANTEC98, Vol. 1 (1998), pp.3604-3614.

[6] L. G. Reifschneider, M. M. Kostic: Annual technical conference ANTEC2004, Vol. 1 (2004), pp.246-250.

[7] Y. J. Zhu, X. L. Wang: Mold & Die Industry, Vol. 16 (1996), No. 6, pp.8-12.

[8] P. X. Xu, D. W. Lu: Mold & Die Industry, Vol. 19 (1999), No. 19, pp.37-41.
