On the Creep Fracture Toughness of 2¼Cr1Mo Steel

Fu Zhen Xuan; Shan Tung Tu; Zheng Dong Wang; Jian Ming Gong

doi:10.4028/www.scientific.net/KEM.297-300.1464

Paper Titles

Compression Characteristic and Tensile Property in an (Alpha+Beta)-Type Titanium Alloy at High Temperature
p.1439

Effect of Film Thickness on Fatigue Strength of TiAl Alloy Coated with TiAlN Film at Elevated Temperature
p.1446

Comparison of Creep Behavior of 2.25Cr-1.6W/Mod. 9Cr-1Mo Dissimilar Weld Joint with Each Matching Filler Metal
p.1452

High Temperature Creep, Fatigue and Creep/Fatigue Interaction Behavior of γ' Strengthened Austenitic Iron-Base Superalloy
p.1458

On the Creep Fracture Toughness of 2¼Cr1Mo Steel
p.1464

Evaluation of DBTT and Creep Properties of Aged Main Valve Casing by Using Small Punch Specimens
p.1470

Elevated Temperature Mechanical Properties of a Directionally Solidified NiAl/Cr(Mo)-Hf Alloy
p.1477

Tensile Behavior of 17-4PH Stainless Steel under Rapid Heating
p.1482

Experimental Study of the High Temperature Mechanical Behaviors of TLP Bonding of Two Ni-Base Single Crystals
p.1489

HomeKey Engineering MaterialsKey Engineering Materials Vols. 297-300On the Creep Fracture Toughness of 2¼Cr1Mo Steel

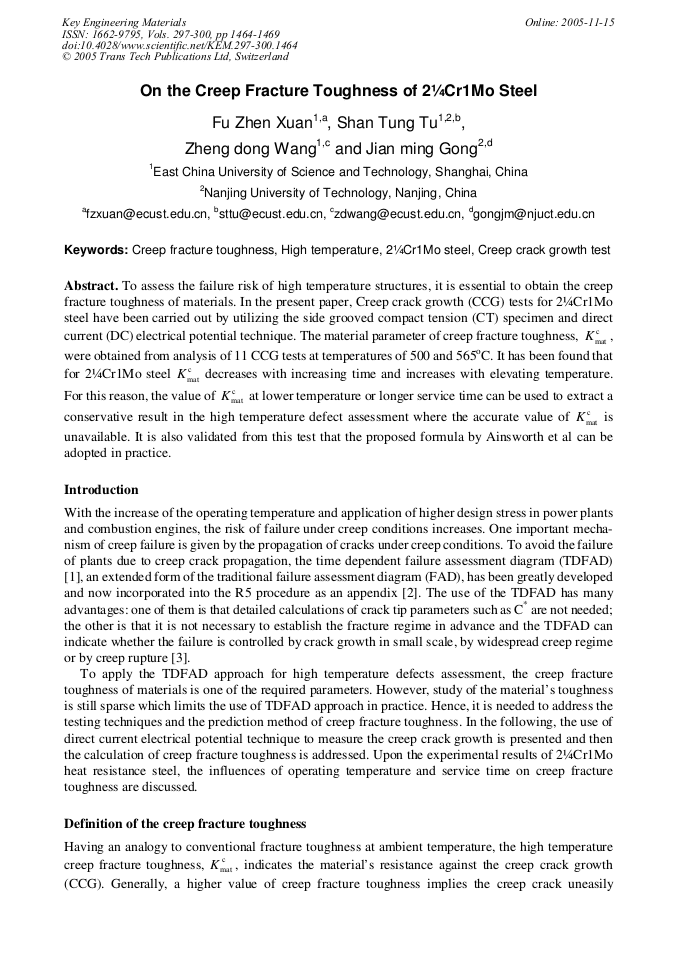

On the Creep Fracture Toughness of 2¼Cr1Mo Steel

Abstract:

To assess the failure risk of high temperature structures, it is essential to obtain the creep fracture toughness of materials. In the present paper, Creep crack growth (CCG) tests for 2¼Cr1Mo steel have been carried out by utilizing the side grooved compact tension (CT) specimen and direct current (DC) electrical potential technique. The material parameter of creep fracture toughness, c mat K , were obtained from analysis of 11 CCG tests at temperatures of 500 and 565oC. It has been found that for 2¼Cr1Mo steel c mat K decreases with increasing time and increases with elevating temperature. For this reason, the value of c mat K at lower temperature or longer service time can be used to extract a conservative result in the high temperature defect assessment where the accurate value of c mat K is unavailable. It is also validated from this test that the proposed formula by Ainsworth et al can be adopted in practice.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 297-300)

Pages:

1464-1469

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.297-300.1464

Citation:

Cite this paper

Online since:

November 2005

Authors:

Fu Zhen Xuan, Shan Tung Tu, Zheng Dong Wang, Jian Ming Gong

Keywords:

2¼Cr1Mo Steel, Creep Crack Growth Test, Creep Fracture Toughness, High-Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R.A. Ainsworth, D.G. Hooton and G. Green: Engineering Fracture Mechanics Vol. 62 (1999), p.95.

Google Scholar

[2] R5: Assessment procedure for the high temperature response of structures, British Energy Generation Ltd., Revision (2003).

Google Scholar

[3] C.M. Davies, N.P. O'Dowd and D.W. Dean, et al: Int. J of Pres. Ves & Piping Vol. 80 (2003), p.541.

Google Scholar

[4] ASTM E1457-00: Standard test methods for measurement of creep crack growth rates in metals. In: Annual Book of ASTM Standards, Section 3 Vol. 03. 01 (2000), p.944.

Google Scholar

[5] A. Saxena: ASTM STP 700, American Society for Testing and Materials (1980), p.131.

Google Scholar

[6] BS 7910: Guide to methods of assessing the acceptability of flaws in fusion welded structures (BSI, London 1999).

Google Scholar

[7] I. Curbishley: ESIS 15 (MEP, London 1993), p.441.

Google Scholar

[8] D.J. Gooch and S.T. Kimmins: J Strain Analysis Vol. 21 (1986), p.231.

Google Scholar
