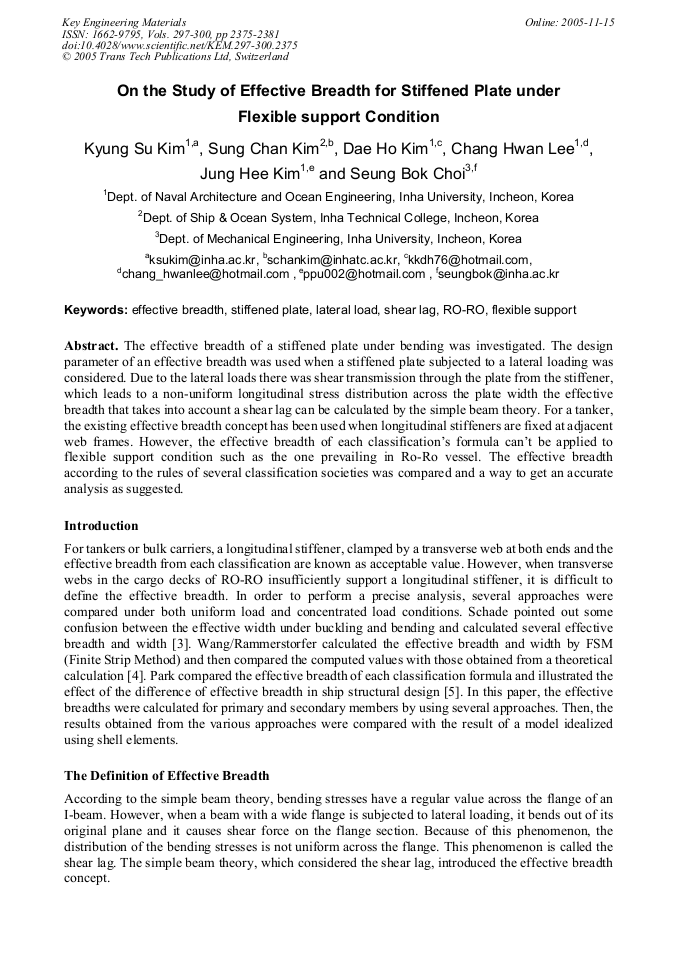

On the Study of Effective Breadth for Stiffened Plate under Flexible Support Condition

Abstract:

The effective breadth of a stiffened plate under bending was investigated. The design parameter of an effective breadth was used when a stiffened plate subjected to a lateral loading was considered. Due to the lateral loads there was shear transmission through the plate from the stiffener, which leads to a non-uniform longitudinal stress distribution across the plate width the effective breadth that takes into account a shear lag can be calculated by the simple beam theory. For a tanker, the existing effective breadth concept has been used when longitudinal stiffeners are fixed at adjacent web frames. However, the effective breadth of each classification’s formula can’t be applied to flexible support condition such as the one prevailing in Ro-Ro vessel. The effective breadth according to the rules of several classification societies was compared and a way to get an accurate analysis as suggested.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 2375-2381
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.2375
• Online since: November 2005
• Authors: Kyung Su Kim, Sung Chan Kim, Dae Ho Kim, Chang Hwan Lee, Jung Hee Kim, Seung Bok Choi
• Keywords: Effective Breadth, Flexible Support, Lateral Load, RO-RO, Shear Lag, Stiffened Plate

References

[1] John T. Katsikadelis and Evangelos J. Sapountzakis: A realistic estimation of the effective breadth of ribbed plates, International Journal of Solids and Structures Vol. 39 (2002), pp.897-910.

DOI: 10.1016/s0020-7683(01)00277-3

[2] Owen F. Hughes: Ship Structural Design (A Wiley-Interscience Publication, 1983), pp.120-122.

[3] H.A. Schade: The effective breadth of stiffened plating under bending loads, Transactions of the Society of Naval Architects and Marine Engineers Vol. 59 (1951), pp.403-420.

[4] X. Wang, F.G. Rammerstorfer: Determination of effective breadth and effective width of stiffened plates by finite strip analysis, Thin-Walled Structures Vol. 26 No. 4 (1996), pp.261-286.

DOI: 10.1016/0263-8231(96)00028-6

[5] C.H. Park, K.S. Hong: Study for The Effective breadth of stiffened plate under bending, Vol. 18 (Inha technical college press).

[6] MSC Nastran 2001 Quick Reference Guide, MSC SOFTWARE (2001), pp.1100-1101.

[7] Rule and Regulations for the Classification of Ships, Lloyd's Register, Part 4 Chapter 2 Section 3 (2000).
