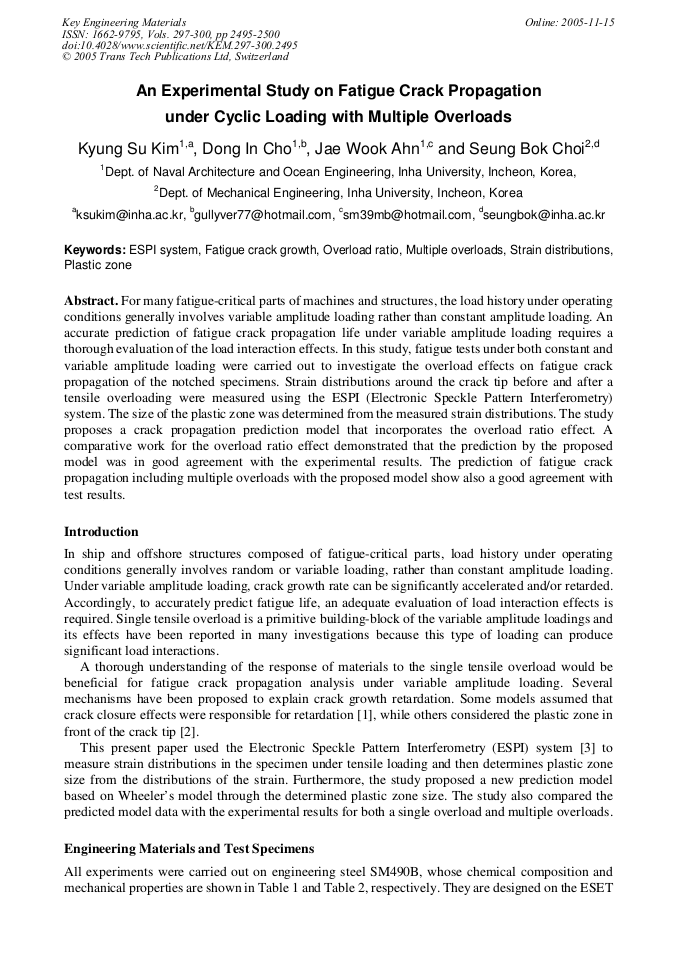

An Experimental Study on Fatigue Crack Propagation under Cyclic Loading with Multiple Overloads

Abstract:

For many fatigue-critical parts of machines and structures, the load history under operating conditions generally involves variable amplitude loading rather than constant amplitude loading. An accurate prediction of fatigue crack propagation life under variable amplitude loading requires a thorough evaluation of the load interaction effects. In this study, fatigue tests under both constant and variable amplitude loading were carried out to investigate the overload effects on fatigue crack propagation of the notched specimens. Strain distributions around the crack tip before and after a tensile overloading were measured using the ESPI (Electronic Speckle Pattern Interferometry) system. The size of the plastic zone was determined from the measured strain distributions. The study proposes a crack propagation prediction model that incorporates the overload ratio effect. A comparative work for the overload ratio effect demonstrated that the prediction by the proposed model was in good agreement with the experimental results. The prediction of fatigue crack propagation including multiple overloads with the proposed model show also a good agreement with test results.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 2495-2500
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.2495
• Online since: November 2005
• Authors: Kyung Su Kim, Dong In Cho, Jae Wook Ahn, Seung Bok Choi
• Keywords: ESPI System, Fatigue Crack Growth (FCG), Multiple Overloads, Overload Ratio, Plastic Zone, Strain Distribution

References

[1] ASTM E647-99, Standard Test Method for Measurement of Fatigue Crack Growth Rates, In Annual Book of ASTM Standards, Philadelphia: American Society for Testing and Materials (1999), pp.591-630.

[2] W. Elber: The Significance of Fatigue Crack Closure, Damage tolerance in aircraft structures, ASTM STP 486. Philadelphia: American Society for Testing and Materials (1971), pp.230-242.

DOI: 10.1520/stp26680s

[3] C. Wykes: Use of Electronic Speckle Pattern Interferometry (ESPI) in the Measurement of Static and Dynamic Surface Displacements, Optical Engineering Vol. 21 (3) (1982), pp.400-406.

DOI: 10.1117/12.7972922

[4] K.S. Kim and C.S. Shim: A study on the Measurement of Plastic zone and Crack Growth Length at the Crack tip under cyclic loading using ESPI system, Structural Engineering and Mechanics Vol. 15 No. 3 (2003), pp.367-378.

DOI: 10.12989/sem.2003.15.3.367

[5] O.E. Wheeler: Spectrum Loading and Crack Growth, J. bas. Engnd, Trans ASME 94 (1972), pp.181-186.

[6] D. Broek and S.H. Smith: The Prediction of Fatigue Crack Growth under flight-by-flight loading, Engineering Fracture Mechanics Vol. 11 (1971), pp.123-141.

DOI: 10.1016/0013-7944(79)90034-1

[7] K.S. Kim, S.C. Kim, C.S. Shim, H.M. Cho and S.W. Lee: A study of overload effects on fatigue crack propagation under cyclic loading using ESPI system, APCNDT (2003).

DOI: 10.4028/www.scientific.net/kem.270-273.709
