Low Cycle Fatigue Behavior and Surface Feature by Image Processing of Sn-0.7Cu Lead-Free Solder

Abstract:

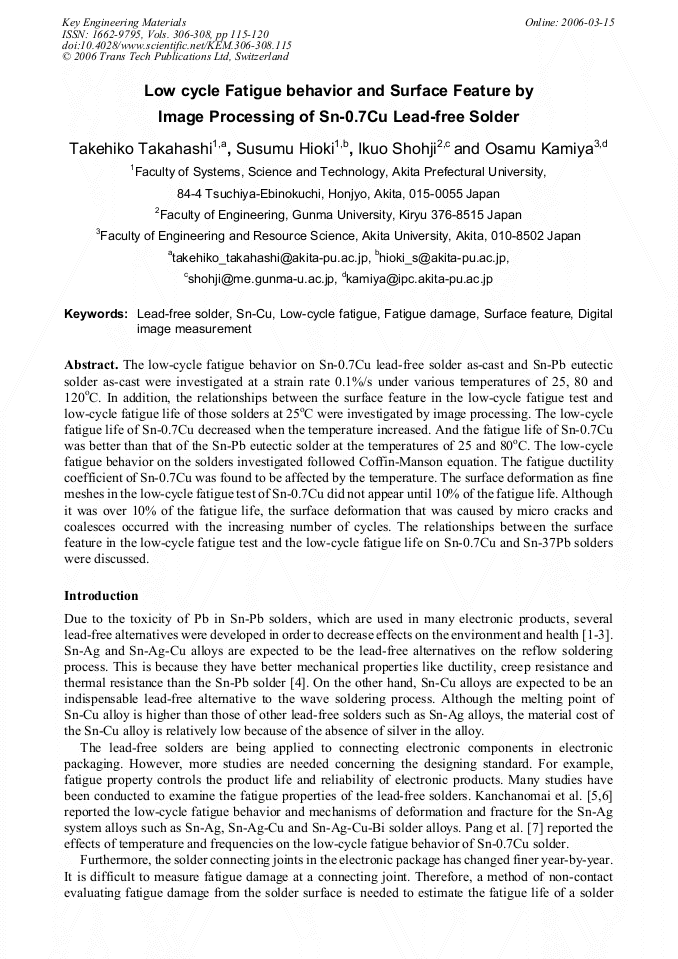

Article Preview

The low-cycle fatigue behavior on Sn-0.7Cu lead-free solder as-cast and Sn-Pb eutectic solder as-cast were investigated at a strain rate 0.1%/s under various temperatures of 25, 80 and 120oC. In addition, the relationships between the surface feature in the low-cycle fatigue test and low-cycle fatigue life of those solders at 25oC were investigated by image processing. The low-cycle fatigue life of Sn-0.7Cu decreased when the temperature increased. And the fatigue life of Sn-0.7Cu was better than that of the Sn-Pb eutectic solder at the temperatures of 25 and 80oC. The low-cycle fatigue behavior on the solders investigated followed Coffin-Manson equation. The fatigue ductility coefficient of Sn-0.7Cu was found to be affected by the temperature. The surface deformation as fine meshes in the low-cycle fatigue test of Sn-0.7Cu did not appear until 10% of the fatigue life. Although it was over 10% of the fatigue life, the surface deformation that was caused by micro cracks and coalesces occurred with the increasing number of cycles. The relationships between the surface feature in the low-cycle fatigue test and the low-cycle fatigue life on Sn-0.7Cu and Sn-37Pb solders were discussed.

Info:

Periodical:

Key Engineering Materials (Volumes 306-308)

Edited by:

Ichsan Setya Putra and Djoko Suharto

Pages:

115-120

Citation:

T. Takahashi et al., "Low Cycle Fatigue Behavior and Surface Feature by Image Processing of Sn-0.7Cu Lead-Free Solder", Key Engineering Materials, Vols. 306-308, pp. 115-120, 2006

Online since:

March 2006

Export:

Price:

$38.00

[1] T. Takemoto, T. Funaki: Mater. Trans. Vol. 43 No. 8 (2002), pp.1784-1790.

[2] I. Shohji, T. Yoshida, T. Takahashi, S. Hioki: Mater. Sci. Eng., A366 (2004), pp.50-55.

[3] I. Shohji, T. Yoshida, T. Takahashi, S. Hioki: J. Master. Sci.: Mater. Electronics, Vol. 15 (2004), pp.219-223.

[4] M. McCormack, S. Jin, G.W. Kammlott, H.S. Chen: Appl. Phys. Lett. Vol. 63 (1993), p.15.

[5] C. Kanchanomai, Y. Miyashita, Y. Mutoh: J. Electron Mater., Vol. 31, No. 2, (2002), pp.142-151.

[6] C. Kanchanomai, Y. Miyashita, Y. Mutoh: J. Electron Mater., Vol. 31, No. 5, (2002), pp.456-465.

[7] J.H.L. Pang, B.S. Xiong, T.H. Low: Int. J. Fatigue, 26, (2004), pp.865-872.

[8] JSMS Standard, JSMS-Sd-3-00: standard method for low-cycle fatigue testing of solder materials. The Society of Material Science, Japan (2000). (In Japanese).

[9] H. Yamada, K Saruki, K. Ogawa: Trans. of JSME, A, Vol. 66, No. 647, (2000), pp.1350-1354. (In Japanese).

[10] L.F. Coffin, Jr.: Trans. ASME, Vol. 76, (1954), pp.931-950.

[11] S.S. Manson: Behavior of Materials Under Conditions of Thermal Stress, Heat Transfer Symposium, University of Michigan, University of Michigan Press, (1953), pp.9-76.
