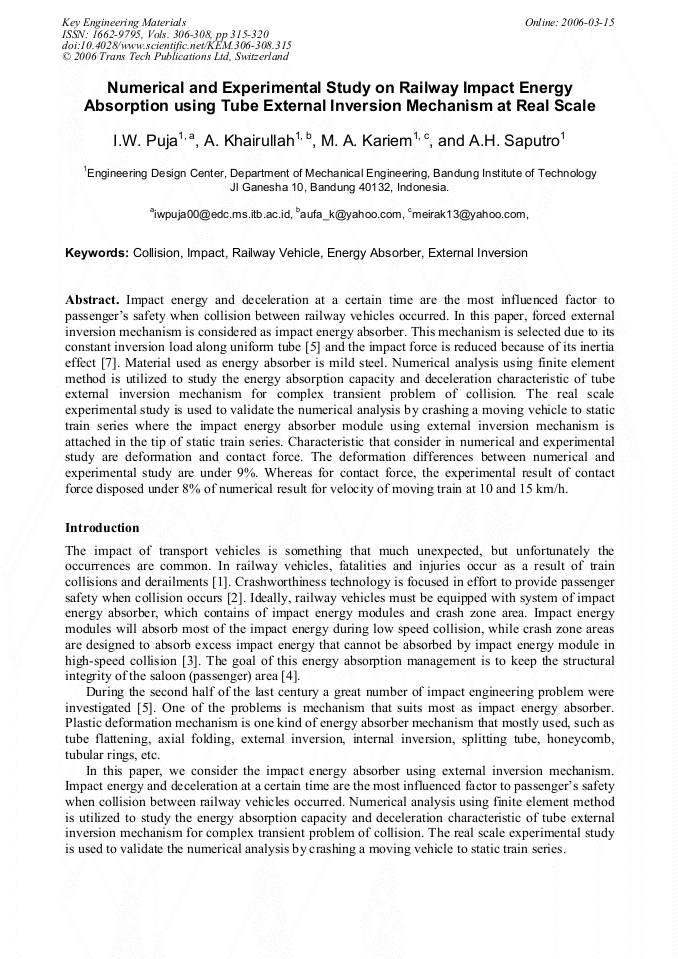

Numerical and Experimental Study on Railway Impact Energy Absorption Using Tube External Inversion Mechanism at Real Scale

Abstract:

Impact energy and deceleration at a certain time are the most influenced factor to passenger’s safety when collision between railway vehicles occurred. In this paper, forced external inversion mechanism is considered as impact energy absorber. This mechanism is selected due to its constant inversion load along uniform tube [5] and the impact force is reduced because of its inertia effect [7]. Material used as energy absorber is mild steel. Numerical analysis using finite element method is utilized to study the energy absorption capacity and deceleration characteristic of tube external inversion mechanism for complex transient problem of collision. The real scale experimental study is used to validate the numerical analysis by crashing a moving vehicle to static train series where the impact energy absorber module using external inversion mechanism is attached in the tip of static train series. Characteristic that consider in numerical and experimental study are deformation and contact force. The deformation differences between numerical and experimental study are under 9%. Whereas for contact force, the experimental result of contact force disposed under 8% of numerical result for velocity of moving train at 10 and 15 km/h.

• Periodical: Key Engineering Materials (Volumes 306-308)
• Pages: 315-320
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.306-308.315
• Online since: March 2006
• Authors: Ign Wiratmaja Puja, A. Khairullah, Muhammad Agus Kariem, A.H. Saputro
• Keywords: Collision, Energy Absorber, External Inversion, Impact, Railway Vehicle

References

[1] Tyrell, David C., U.S. Rail Equipment Crashworthiness Standards, U.S. Department of Transportation, (2001).

[2] Johnson,W., and Mamalis A.G., Crashworthiness of Vehicles, Mechanical Engineering Publication, (1978).

[3] Mayville, R., Stringfellow, R., Rancatore, R., D. Little, A., Development of A Passenger Rail Vehicle Crush Zone, 15, IEEE Catalog Number 99CH36340, ASME RTD Volume 16, (1999).

DOI: 10.1109/rrcon.1999.762408

[4] Puja, I. W., Hardono, T., Khalid, Adziman, M.F., The Structural Impact Characteristics of Indonesian Railway Vehicle, Key Engineering Materials Vols. 261-263 (2004) pp.337-344.

DOI: 10.4028/www.scientific.net/kem.261-263.337

[5] Alghamdi, A. A., "Collapsible impact energy absorbers: an overview, Thin-Walled Structures, Volume 39, Issue 2, February 2001, Pages 189-213.

DOI: 10.1016/s0263-8231(00)00048-3

[6] Stronge, W. J., Yu, T. X., Johnson, W., Energy Dissipation by Splitting and Curling Tubes, Structural Impact and Crashworthiness Conference, (1984).

[7] Harrigan JJ., Reid SR., Peng C., Inertia effect in impact energy absorbing materials and structures, Int J Impact Engng (1999).

[8] Versace, J., A Review of The Severity Index, 15th Stapp Conference, (1971).

[9] Puja, I. W., Saragih, N., Adziman, M. F., Railway Vehicle Impact Energy Absorber Using Plastic Deformation and Hydraulic Mechanism, The 3 rd International Seminar on numerical Analysis in Engineering, (2003).

[10] Puja, I.W., Syehnul, D., "Karakteristik Penyerapan Energi Impak Struktur Silinder Tipis dengan Mekanisme Splitting, Proc. Elemen Hingga, 2002, pp.106-115.

[11] PT Kereta Api, Permasalahan dan Pemikiran Pengembangan Transportasi Kereta Api, Bandung, Februari (2002).

DOI: 10.25104/warlit.v27i6.943

[12] Brell, E., Erp, V.G., Snook C., Train Crashworthiness and Its Impact on Society, Int. Journal of Crashworthiness, (1999).

DOI: 10.1533/cras.1999.0116

[13] Puja, I.W., Budiwantoro, B., Nazaruddin, Analisis Multibody Rangkaian Kereta Api Pada Saat Tabrakan, Jurnal Teknik Mesin, Submitted for publication, (2002).

[14] Scholes, A., Passenger Vehicle Design Loads and Structural Crashworthiness, British Railway Boards, Railway Technical Centre, Derby.

[15] Reddy, T.Y., Impact Mechanics II part 2, MSx in CESA and MED, UMIST, (1998).

[16] Lagneau, Henry, Tolerance a la Collision des Vehicules Ferroviaires, International Crashworthiness Design Conference, (1999).

[17] Dixon, J., The Shock Absorber Handbook, Society of Automotive Engineering Inc., Warrandale, P.A., (1999).
