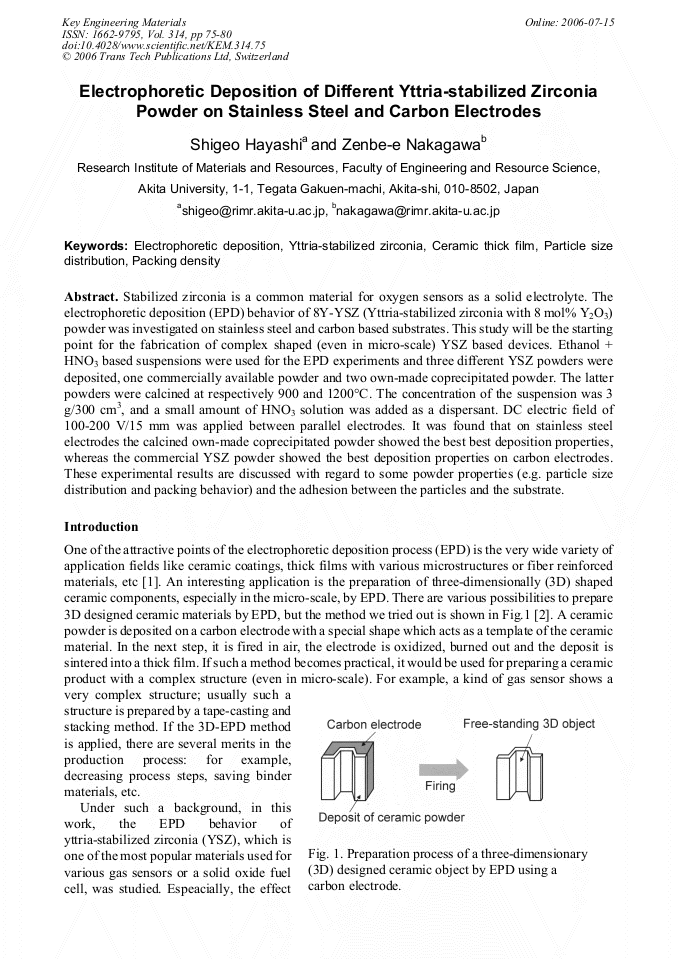

Electrophoretic Deposition of Different Yttria-Stabilized Zirconia Powder on Stainless Steel and Carbon Electrodes

Abstract:

Stabilized zirconia is a common material for oxygen sensors as a solid electrolyte. The electrophoretic deposition (EPD) behavior of 8Y-YSZ (Yttria-stabilized zirconia with 8 mol% Y2O3) powder was investigated on stainless steel and carbon based substrates. This study will be the starting point for the fabrication of complex shaped (even in micro-scale) YSZ based devices. Ethanol + HNO3 based suspensions were used for the EPD experiments and three different YSZ powders were deposited, one commercially available powder and two own-made coprecipitated powder. The latter powders were calcined at respectively 900 and 1200°C. The concentration of the suspension was 3 g/300 cm3, and a small amount of HNO3 solution was added as a dispersant. DC electric field of 100-200 V/15 mm was applied between parallel electrodes. It was found that on stainless steel electrodes the calcined own-made coprecipitated powder showed the best best deposition properties, whereas the commercial YSZ powder showed the best deposition properties on carbon electrodes. These experimental results are discussed with regard to some powder properties (e.g. particle size distribution and packing behavior) and the adhesion between the particles and the substrate.

• Periodical: Key Engineering Materials (Volume 314)
• Pages: 75-80
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.314.75
• Online since: July 2006
• Authors: Shigeo Hayashi, Zenbe-e Nakagawa
• Keywords: Ceramic Thick film, Electrophoretic Deposition (EPD), Packing Density, Particle Size Distribution (PSD), Yttria Stabilized Zirconia (YSZ)

References

[1] S. Hayashi and Z. Nakagawa: J. Ceram. Soc. Japan, Supplement, Vol. 112 (2004), S1135 (PacRim5 special issue, on CD-ROM).

[2] S. Hayashi, C. Sato and Z. Nakagawa: J. Ceram. Soc. Japan (accepted for publication).

[3] J. C. Fariñas, R. Moreno, J. Requena and J. S. Moya: Mater. Sci. Eng. A, Vol. 109 (1989), p.97 Fig. 6. Photograph (a) and SEM micrograph (b) of an obtained YSZ (TZ-8Y) thick film (bar = 10 µm). (a) (b).
