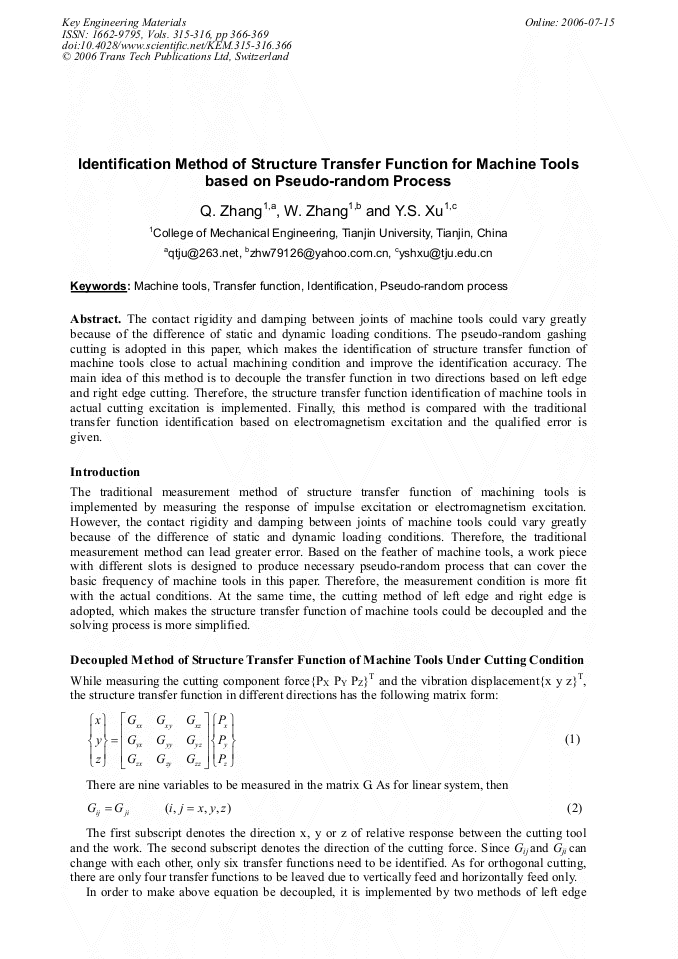

Identification Method of Structure Transfer Function for Machine Tools Based on Pseudo-Random Process

Abstract:

The contact rigidity and damping between joints of machine tools could vary greatly because of the difference of static and dynamic loading conditions. The pseudo-random gashing cutting is adopted in this paper, which makes the identification of structure transfer function of machine tools close to actual machining condition and improve the identification accuracy. The main idea of this method is to decouple the transfer function in two directions based on left edge and right edge cutting. Therefore, the structure transfer function identification of machine tools in actual cutting excitation is implemented. Finally, this method is compared with the traditional transfer function identification based on electromagnetism excitation and the qualified error is given.

• Periodical: Key Engineering Materials (Volumes 315-316)
• Pages: 366-369
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.315-316.366
• Online since: July 2006
• Authors: Qing Song Zhang, W. Zhang, Yan Shen Xu
• Keywords: Identification, Machine Tool, Pseudo-Random Process, Transfer Function

References

[1] F. Mirski and J. Lombard: Annals of CIRP, Vol. 19 (1971) No. 4, pp.813-822.

[2] J. Tlusty: Annals of CIRP, Vol. 27 (1978), pp.583-589.

[3] J. Peter, P. Vanerck and H. V. Brussel: Annals of CIRP, Vol. 21 (1972), pp.129-136.

[4] B.J. Stone: Annals of CIRP, Vol. 34 (1985), pp.371-374.

[5] H. Optiz and M. Weck: Proc. 10 th MTDR Conference, (1969), pp.349-387.

[6] J. Tlusty and O. Heczko: The 8th NAMR Conference, Univ. Of Rolls, Missuri. SME, (1980).

[7] Y.S. Xu, I.M. Minis and E.B. Magrab: Vibration Engineering Transaction, Vol. 3 (1990) No. 1, pp.64-70.

[8] Y.S. Xu, I.M. Minis and E.B. Magrab: Vibration Engineering Transaction, Vol. 4 (1991) No. 1, pp.17-24.
