Study on Stress Intensity Factor under Torsion Load of Double Column for Two Dissimilar Materials

Abstract:

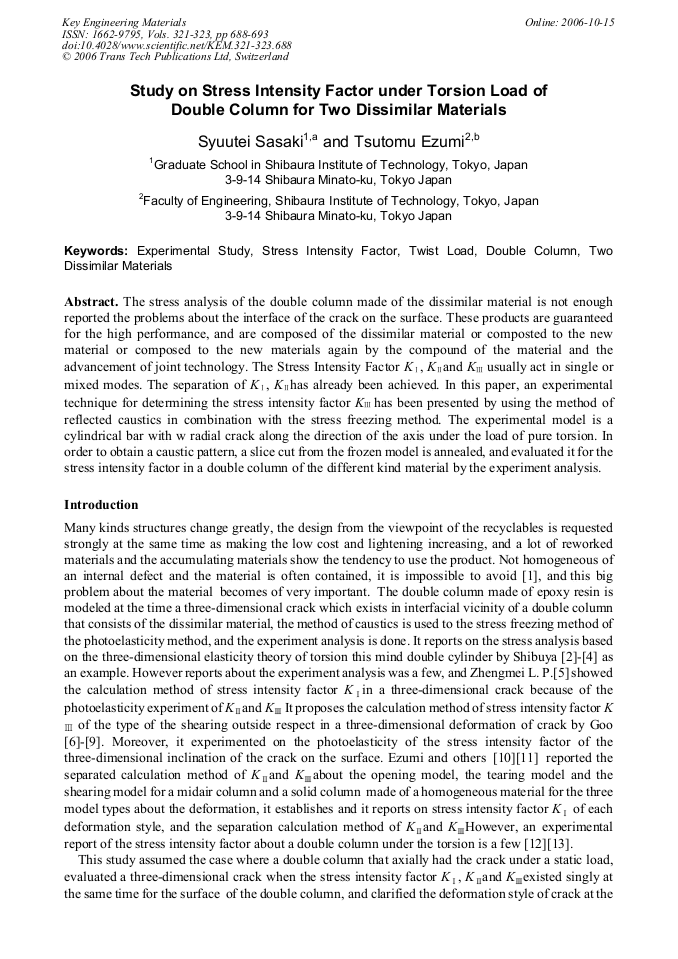

Article Preview

The stress analysis of the double column made of the dissimilar material is not enough reported the problems about the interface of the crack on the surface. These products are guaranteed for the high performance, and are composed of the dissimilar material or composted to the new material or composed to the new materials again by the compound of the material and the advancement of joint technology. The Stress Intensity Factor K, Kand K usually act in single or mixed modes. The separation of K, Khas already been achieved. In this paper, an experimental technique for determining the stress intensity factor Khas been presented by using the method of reflected caustics in combination with the stress freezing method. The experimental model is a cylindrical bar with w radial crack along the direction of the axis under the load of pure torsion. In order to obtain a caustic pattern, a slice cut from the frozen model is annealed, and evaluated it for the stress intensity factor in a double column of the different kind material by the experiment analysis.

Info:

Periodical:

Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi

Pages:

688-693

DOI:

10.4028/www.scientific.net/KEM.321-323.688

Citation:

S. Sasaki and T. Ezumie, "Study on Stress Intensity Factor under Torsion Load of Double Column for Two Dissimilar Materials", Key Engineering Materials, Vols. 321-323, pp. 688-693, 2006

Online since:

October 2006

Export:

Price:

$35.00

[1] Masao Toyota, Interface Mechanics, (1991), pp.96-244, Rikougaku Company.

[2] Hisashi Shibuya, Yuji Inoue, Kikuo Kishimoto and Takashi Okamura, Twist of this mind double cylinder that has and outer toroidal crack, Japan Society of Mechanical Engineers thesis collection A, 63-615(1997), pp.2351-2358.

DOI: 10.1299/kikaia.63.2351

[3] Hisashi Someya and Akihiro Otomo, Torsion of double cylinder and outer toroidal crack, Japan Society of Mechanical Engineers thesis collection A, 590-567(1993), pp.2510-2516.

[4] Zhengmei L. �Pings, �Photoelastic Determination of Mixed-mode Stress Intensity Factor K�, K ��and K� ExperimentalMechanics, 23-2(1983-6), pp.228-235.

[5] Gu Tauhou, Susumu Takahasi and Tsutomu Ezumi, Photoelasticity experiment of stress intensity factor of Credaicata and Three-dimensional inclination surface crack, Nondestructive testing Society, 38-8(1987), pp.648-653.

[6] Gu Tauhou, Susumu Takahasi and Tsutomu Ezumi, Experimental research into stress intensity factor K� value of three-dimensional crack by Caustics method, Japan Society of Mechanical Engineers, A, 56-527(1990), pp.53-58.

[7] Gu Tauhou, Susumu Takahasi and Tsutomu Ezumi, Calculation of stress intensity factor of three-dimensional surface crack by Caustics method, and Photoelasticity method, Japan Society Of Mechanical Engineers thesis collection A, 58-522(1990).

[8] Gu Tauhou, Susumu Takahasi and Tsutomu Ezumi, Stress intensity factor K� and K��that has internally Credaicata�and inclination crack, and calculations�for the stress intensity factor K�, Photoelasticity Society thesis collections, 19-1(1999).

[9] Akira Kawai, Tsutomu Ezumi and Susumu Takahashi, Calculation of stress intensity factor and midair cylinder and crack (K�à K��and K�), Japan Society Of Mechanical Engineers, A, 61-585(1995), pp.869-875.

[10] Naoakira Noda and Yasushi Moriyama, Stress concentration with the thing of the existing rotation oval, Japan Society of Mechanical Engineers, A, and is 69-684(2003), pp.1209-1215.

[11] Seiji Ioka, Keiji Masuda and Sirou Kubo, �Theoretical, concerning disappearance of free edge stress uniqueness by interlayer insertion and different kind joint material numeric examination, Japan Society of Mechanical Engineers thesis collection A, 71-703(2005).

[12] Smith. C. W., �Use of Three-dimensional Photoelasticity in Fracture Mechanics, Experimental Mechanics, 12(1973), �pp.539-544.

[13] Mahajan. R.V. and Chandar. K. R., Experimental Determination of Stress�Intensity Factor Using Caustics and Photoelasticity, Experimental Mechanics, 3(1989), pp.6-11.

DOI: 10.1007/bf02327774
