Fracture Analysis and Mechanical Property of AZ91D Magnesium Alloy Chips Prepared by Solid State Recycling

Ze Sheng Ji; Mao Liang Hu; Xiao Yu Chen

doi:10.4028/www.scientific.net/KEM.324-325.499

Paper Titles

A Numerical Study on Ductile Material Failure
p.483

Effects of Polypropylene Fiber on Plastic Shrinkage Crack and Mechanical Properties of Concrete
p.487

Shear Failure Load of SFR-UHPCC I-Beam without Stirrup Based on Limit Analysis of Concrete Plasticity
p.491

Numerical Simulation for Dynamic Crack Propagation by MLPG
p.495

Fracture Analysis and Mechanical Property of AZ91D Magnesium Alloy Chips Prepared by Solid State Recycling
p.499

Investigation of Fracture Design for Bi-Steel Materials
p.503

Applied Investigation of Fracture for Low Carbon Steel in Extra-Low Cycle Inverse Rotating Bending Fatigue
p.507

Study on Fracture Behavior of Alumina Ceramics Toughened by Combining In Situ Growth Abnormal Grains, 3Y-TZP and Cu
p.511

Passivation Cracking Analyses of Micro-Structures of IC Packages
p.515

HomeKey Engineering MaterialsKey Engineering Materials Vols. 324-325Fracture Analysis and Mechanical Property of AZ91D...

Fracture Analysis and Mechanical Property of AZ91D Magnesium Alloy Chips Prepared by Solid State Recycling

Abstract:

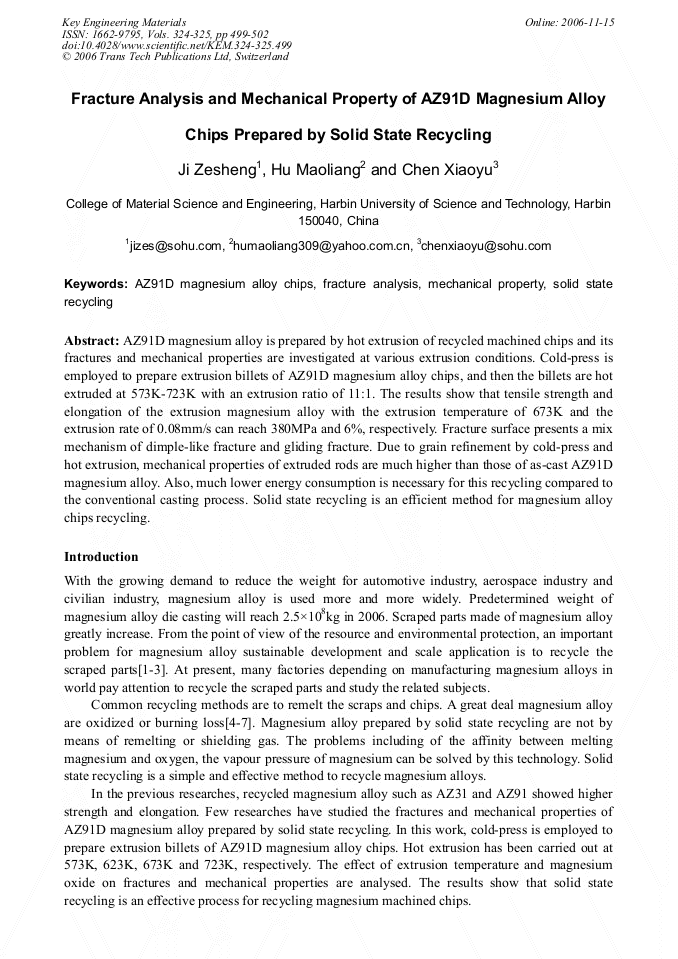

AZ91D magnesium alloy is prepared by hot extrusion of recycled machined chips and its fractures and mechanical properties are investigated at various extrusion conditions. Cold-press is employed to prepare extrusion billets of AZ91D magnesium alloy chips, and then the billets are hot extruded at 573K-723K with an extrusion ratio of 11:1. The results show that tensile strength and elongation of the extrusion magnesium alloy with the extrusion temperature of 673K and the extrusion rate of 0.08mm/s can reach 380MPa and 6%, respectively. Fracture surface presents a mix mechanism of dimple-like fracture and gliding fracture. Due to grain refinement by cold-press and hot extrusion, mechanical properties of extruded rods are much higher than those of as-cast AZ91D magnesium alloy. Also, much lower energy consumption is necessary for this recycling compared to the conventional casting process. Solid state recycling is an efficient method for magnesium alloy chips recycling.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 324-325)

Pages:

499-502

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.324-325.499

Citation:

Cite this paper

Online since:

November 2006

Authors:

Ze Sheng Ji, Mao Liang Hu, Xiao Yu Chen

Keywords:

AZ91D Magnesium Alloy Chips, Fracture Analysis, Mechanical Property, Solid State Recycling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] I. M. Baghni, Wu Yin-shun, Li Jiu-qing, et al: Trans. Nonferrous Met. Soc. China Vol. 13 (2003), p.1253.

Google Scholar

[2] H. Watanabe, K. Moriwaki, T. Mukai, et al: Journal of Materials Science Vol. 36 (2001), p.5007.

Google Scholar

[3] M. Nakanishi, M. Mabuchi, N. Saito, et al: Journal of Materials Science Letters Vol. 17 (1998), p. (2003).

Google Scholar

[4] J. Gronostajski andA. Matuszak: Journal of Materials processing Technology Vol. 92-93 (1999), p.35.

Google Scholar

[5] F. Czerwinski: Acta Materialia Vol. 50 (2002), p.3265.

Google Scholar

[6] Y. Chino, M. Kobata, K. Shimojima, et al: Materials Transactions Vol. 45 (2004), p.361.

Google Scholar

[7] C. Yasumasa, J. S. Lee, N. Yusuke, et al: Materials Transactions Vol. 46 (2005), p.2592.

Google Scholar

[8] Z. S. Ji, Y. Hong, M. Zhao: Trans. Nonferrous Met. Soc. China Vol. 15 (2005), p.236.

Google Scholar

[9] S. Z. Qamar, A. F. M. Arif and A. K. Sheikh: Journal of Materials processing Technology Vol. 155-156 (2004), p.1734.

Google Scholar

[10] R. Ye. Lapovok, M. R. Barnett and C. H. J. Davies: Journal of Materials processing Technology Vol. 146 (2004), p.408 (a) (b) (c).

Google Scholar
