Numerical Study on Elastic-Plastic Stress Field Near the Cooling Holes of Nickel-Based Single Crystal Air-Cooled Blades

Abstract:

In this paper, a plate containing a central hole was used to simulate gas turbine blade with cooling hole. Numerical calculations based on crystal plasticity theory have been performed to study the elastic-plastic stress field near the hole under tension. Two crystallographic orientations [001] and [111] were considered. The distributions of resolved shear stresses and strains of the octahedral slip systems {110}<112> were calculated. The results show that the crystallographic orientation has remarkable influence on both von Mises stress and resolved shear stress distributions. The resolved shear stress distributions around the hole are different between the two orientations, which lead to the different activated slip systems. So the deformed shape of the hole in [001] orientation differs from that in [111] orientation.

You might also be interested in these eBooks

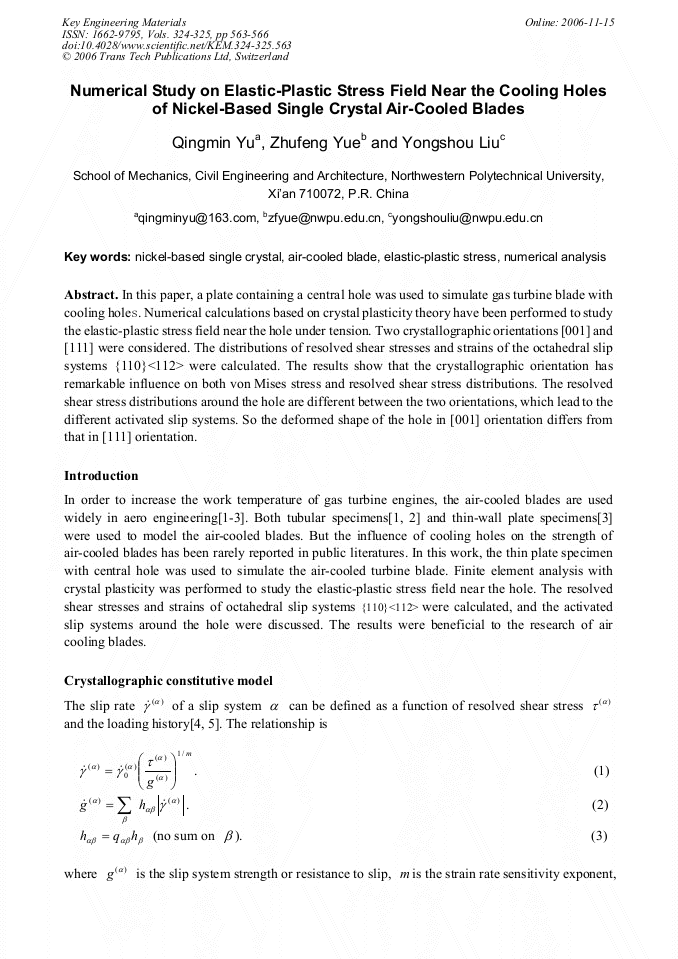

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 324-325)

Pages:

563-566

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.324-325.563

Citation:

Cite this paper

Online since:

November 2006

Authors:

Qing Min Yu, Zhu Feng Yue, Yong Shou Liu

Keywords:

Air-Cooled Blade, Elastic-Plastic Stress, Nickel-Based Single Crystal, Numerical Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.P. Han, in: Proceedings on Casting Superalloy, Chinese Science and Technique Publishing House, Beijing, 1993, p.194.

Google Scholar

[2] S.C. Mo, L.B. Wang, in: Proceedings on Casting Superalloy, Chinese Science and Technique Publishing House, Beijing, 1993, p.84.

Google Scholar

[3] R.Z. Chen, H.W. Zhang: ACTA METALLURGICA SINICA(ENGLISH LETTERS) Vol. 9 (1996) p.627.

Google Scholar

[4] R.J. Asaro, in: Micromechanics of crystal and polycrystals, Advances in applied mechanics, Academics Press, London, (1983).

Google Scholar

[5] D. Peirce, R.J. Asaro and A. Needleman: Acta Metall. Vol. 30 (1983) p. (1951).

Google Scholar

[6] S.R. Kalidindi, C.A. Bronkhorst and L. Anand: J. Mech. Phys. Solids Vol. 40 (1992) p.537.

Google Scholar

[7] Hibbit, Carlson and Sorensen, in: ABAQUS Version 5. 8 User's manual, Hibbit, Carlson &Sorensen Inc., Michigan, (1999).

Google Scholar

[8] J.S. Wan, Z.F. Yue and Z.Z. Lu: Modelling Simul. Mater. Sci. Eng. Vol. 13 (2005) p.875.

Google Scholar
