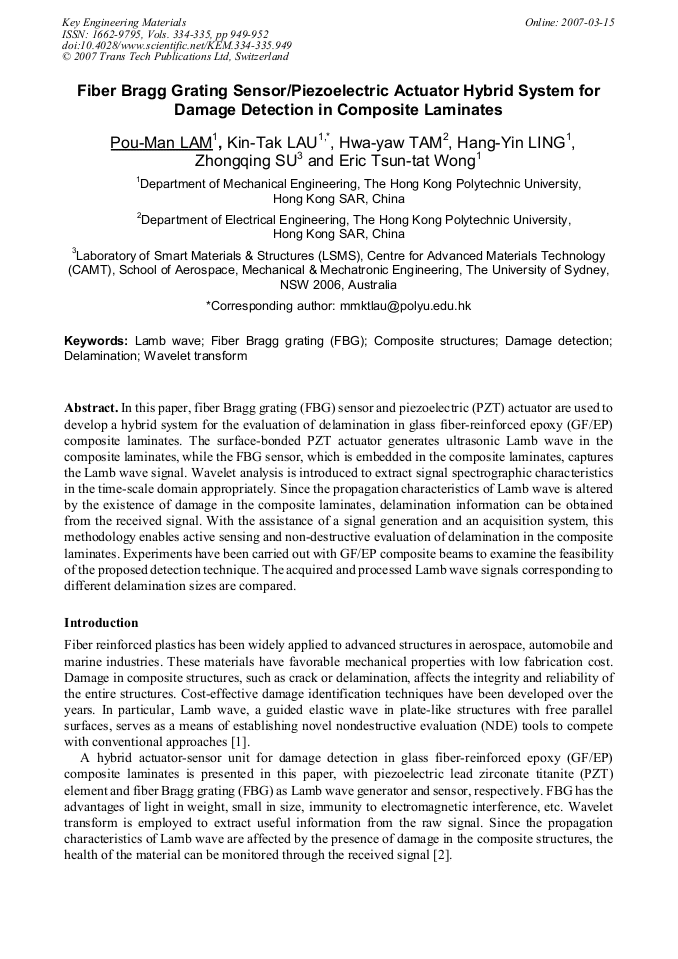

Fiber Bragg Grating Sensor/Piezoelectric Actuator Hybrid System for Damage Detection in Composite Laminates

Abstract:

In this paper, fiber Bragg grating (FBG) sensor and piezoelectric (PZT) actuator are used to develop a hybrid system for the evaluation of delamination in glass fiber-reinforced epoxy (GF/EP) composite laminates. The surface-bonded PZT actuator generates ultrasonic Lamb wave in the composite laminates, while the FBG sensor, which is embedded in the composite laminates, captures the Lamb wave signal. Wavelet analysis is introduced to extract signal spectrographic characteristics in the time-scale domain appropriately. Since the propagation characteristics of Lamb wave is altered by the existence of damage in the composite laminates, delamination information can be obtained from the received signal. With the assistance of a signal generation and an acquisition system, this methodology enables active sensing and non-destructive evaluation of delamination in the composite laminates. Experiments have been carried out with GF/EP composite beams to examine the feasibility of the proposed detection technique. The acquired and processed Lamb wave signals corresponding to different delamination sizes are compared.

• Periodical: Key Engineering Materials (Volumes 334-335)
• Pages: 949-952
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.334-335.949
• Online since: March 2007
• Authors: Pou Man Lam, Alan Kin Tak Lau, Hwa Yaw Tam, Hang Yin Ling, Zhong Qing Su, Eric Tsun Tat Wong
• Keywords: Composite Structure, Damage Detection, Delamination, Fiber Bragg Grating (FBG), Lamb Wave, Wavelet Transform (WT)

References

[1] G. Thursby et al: Proceedings of SPIE 5768 (2005), p.313.

[2] H. Tsuda: Compos. Sci. Technol. 66 (2006), p.676.

[3] T. Erdogan: J. Lightwave Technol. 15 (1997), p.1277.

[4] C. C. Habeger, R. W. Mann and G. A Baum: Ultrasonics 17 (1979), p.57.
