The Influence of Sintering Process on the Microstructure of Submicron Alumina Fabricated by Gelcasting

Long Hao Qi; Jian Shen; Wei Pan

doi:10.4028/www.scientific.net/KEM.336-338.1185

Paper Titles

Microstructural Evolution and Mechanical Properties in Yb₂O₃–Fluxed Silicon Nitride Ceramics
p.1172

Processing and Properties of Highly Textured Si₃N₄ Materials
p.1175

A Comparison Study on Microstructure and Mechanical Properties of Si₃N₄ Ceramic Prepared from MACS Powders
p.1179

Microstructure of Different Rare-Earth-Doped α-Sialon Ceramics
p.1182

The Influence of Sintering Process on the Microstructure of Submicron Alumina Fabricated by Gelcasting
p.1185

Low Temperature Degradation of Yttria Stabilized Zirconia
p.1188

Effect of Al₂O₃ on the Phase Stability of Y-Ce-TZP/Al₂O₃ Composites at Low Temperature
p.1190

Microstructure and Phase Composition of (Ce, Mg)-PSZ Ceramics
p.1194

Microstructure and Mechanical Properties of Ce-Y-TZP Ceramic Composites for Ceramic Plunger and Ball Valve
p.1197

HomeKey Engineering MaterialsKey Engineering Materials Vols. 336-338The Influence of Sintering Process on the...

The Influence of Sintering Process on the Microstructure of Submicron Alumina Fabricated by Gelcasting

Abstract:

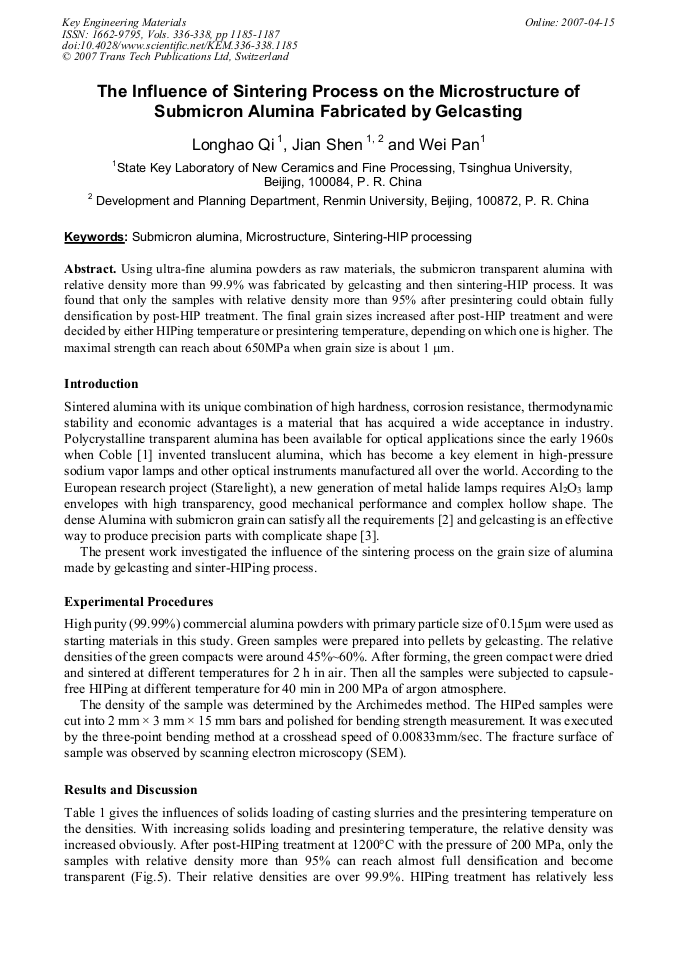

Using ultra-fine alumina powders as raw materials, the submicron transparent alumina with relative density more than 99.9% was fabricated by gelcasting and then sintering-HIP process. It was found that only the samples with relative density more than 95% after presintering could obtain fully densification by post-HIP treatment. The final grain sizes increased after post-HIP treatment and were decided by either HIPing temperature or presintering temperature, depending on which one is higher. The maximal strength can reach about 650MPa when grain size is about 1 μm.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Pages:

1185-1187

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.336-338.1185

Citation:

Cite this paper

Online since:

April 2007

Authors:

Long Hao Qi, Jian Shen, Wei Pan

Keywords:

Microstructure, Sintering-HIP Processing, Submicron Alumina

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R.L. Coble: Appl. Phys. Vol. 32 (1961), p.793.

Google Scholar

[2] A. Krell, P. Blank, H. Ma and H. Thomas: J. Am. Ceram. Soc. Vol. 86 (2003), p.12.

Google Scholar

[3] A.C. Young, O.O. Omatete and M.A. Janney: J. Am. Ceram. Soc., Vol. 74 (1991), p.612. Fig. 4 The bending strength of samples with different grain sizes Fig. 5 Comparison of transparency between submicron and conventional Al2O3.

Google Scholar
