Preparation and Characterization of Gallium-Doped Zinc Oxide Nanopowders with High Electrical Conductivity

Shang Feng Du; J. Liu; Yun Fa Chen

doi:10.4028/www.scientific.net/KEM.336-338.2041

Paper Titles

Synthesis and Characterization of Regular Hexagonal NiCo₂O₄ Nanosheets
p.2027

Preparation and Characterization of CdSe Synthesized from Non-Aqueous Media
p.2030

Preparation and Characterization of CdSe Nanoparticles Prepared by Using Ultrasonic Irradiation
p.2034

Synthesis of Hollow Sphere CdSe from CdCl₂ Aqueous Solution Containing Ethylenediamine
p.2037

Preparation and Characterization of Gallium-Doped Zinc Oxide Nanopowders with High Electrical Conductivity
p.2041

Preparation of Conductive Composite Particles by Impact Coating Process
p.2044

The Preparation of Alumina Nanopowders from Solution Derived Precipitates through Polymer Gel Method
p.2047

Preparation of Nanoscale High-Purity α-Alumina Powders
p.2051

Effect of Phase of YAG Powder Synthesized by Co-Precipitation on Transparent Ceramic Sintering
p.2054

HomeKey Engineering MaterialsKey Engineering Materials Vols. 336-338Preparation and Characterization of Gallium-Doped...

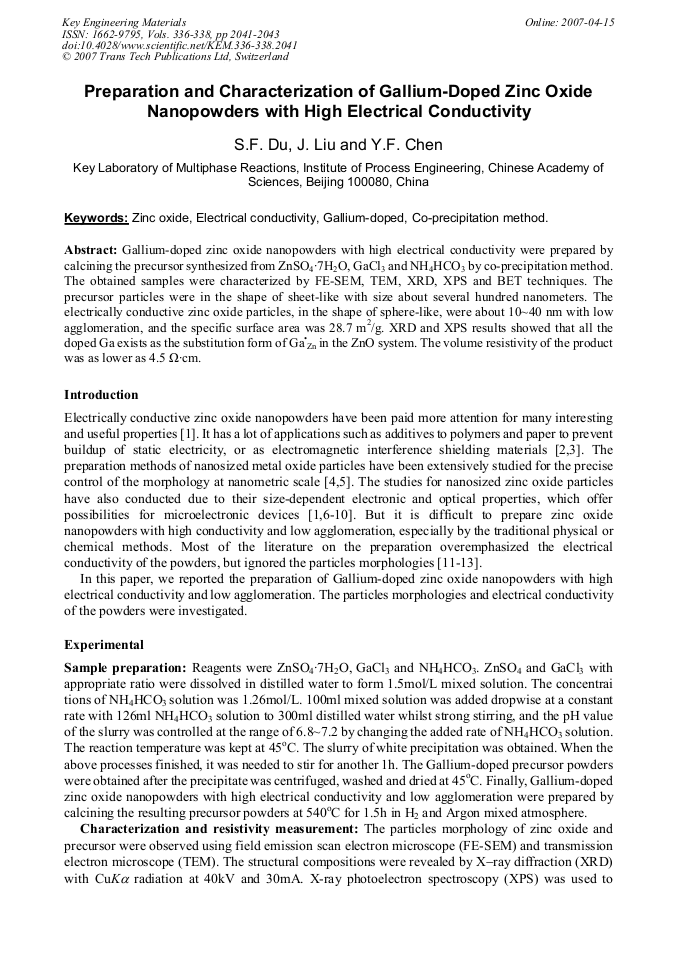

Preparation and Characterization of Gallium-Doped Zinc Oxide Nanopowders with High Electrical Conductivity

Abstract:

Gallium-doped zinc oxide nanopowders with high electrical conductivity were prepared by calcining the precursor synthesized from ZnSO4·7H2O, GaCl3 and NH4HCO3 by co-precipitation method. The obtained samples were characterized by FE-SEM, TEM, XRD, XPS and BET techniques. The precursor particles were in the shape of sheet-like with size about several hundred nanometers. The electrically conductive zinc oxide particles, in the shape of sphere-like, were about 10~40 nm with low agglomeration, and the specific surface area was 28.7 m2/g. XRD and XPS results showed that all the doped Ga exists as the substitution form of Ga• Zn in the ZnO system. The volume resistivity of the product was as lower as 4.5 :·cm.
