Influence of pH on the Morphology of Yttrium Oxide Hydroxide Nitrate Nanocrystal

Zhang Lian Hong; Huang Guo; Li Xia Peng; Min Quan Wang

doi:10.4028/www.scientific.net/KEM.336-338.2176

Paper Titles

Synthesis of Sulfide Nanowire Arrays through Template-Assisted Electrodeposition
p.2163

Synthesis and Characterization of Boron Carbide Nanobelts
p.2166

Large-Scale Fabrication of ZnO Hexagonal Rods Arrays by a Simple Chemical Solution Method
p.2169

Luminescent Properties of Aluminum Doped Zinc Oxide Nanofibers Prepared by Electrospinning
p.2173

Influence of pH on the Morphology of Yttrium Oxide Hydroxide Nitrate Nanocrystal
p.2176

Fabrication of LaNiO₃ Chain-Like Ceramics from Nanocable Precursors
p.2179

Preparation and Characterization of Cerium Hydrate Fiber
p.2182

Preparation of a Novel Carbon Nano-Material Studded Iron Granules from Needle Coke by Arc Method
p.2186

Synthesis and Characterization of Refluxed Sols and TiO₂ Thin Films Using TiOSO₄
p.2189

HomeKey Engineering MaterialsKey Engineering Materials Vols. 336-338Influence of pH on the Morphology of Yttrium Oxide...

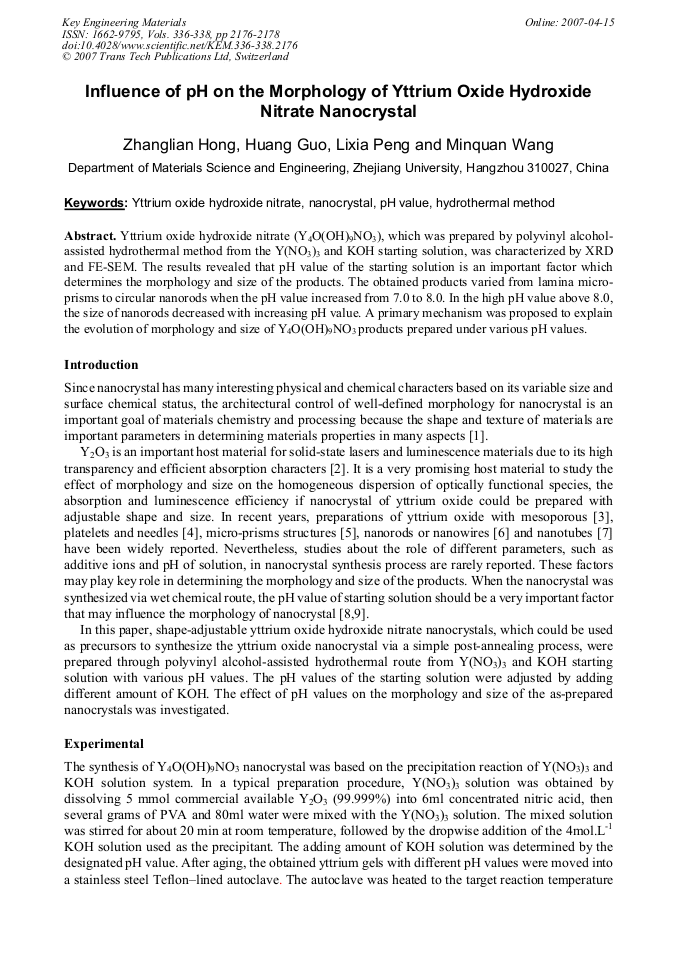

Influence of pH on the Morphology of Yttrium Oxide Hydroxide Nitrate Nanocrystal

Abstract:

Yttrium oxide hydroxide nitrate (Y4O(OH)9NO3), which was prepared by polyvinyl alcoholassisted hydrothermal method from the Y(NO3)3 and KOH starting solution, was characterized by XRD and FE-SEM. The results revealed that pH value of the starting solution is an important factor which determines the morphology and size of the products. The obtained products varied from lamina microprisms to circular nanorods when the pH value increased from 7.0 to 8.0. In the high pH value above 8.0, the size of nanorods decreased with increasing pH value. A primary mechanism was proposed to explain the evolution of morphology and size of Y4O(OH)9NO3 products prepared under various pH values.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Pages:

2176-2178

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.336-338.2176

Citation:

Cite this paper

Online since:

April 2007

Authors:

Zhang Lian Hong, Huang Guo, Li Xia Peng, Min Quan Wang

Keywords:

Hydrothermal Method, Nanocrystal, pH Value, Yttrium Oxide Hydroxide Nitrate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Mann: Angew. Chem., Int. Ed. Vol. 39 (2000), p.3392.

Google Scholar

[2] T. Ikegami, J.G. Li and T. Mori: J. Am. Ceram. Soc. Vol. 85 (2002), p.1725.

Google Scholar

[3] M. Yada, H. Hiyoshi, M. Machida and T. Kijima: Inorg. Chem. Vol. 37 (1998), p.6470.

Google Scholar

[4] A. Dupont, C. Parent, B. Le Garrec and J. M. Heintz: J. Solid. State Chem. Vol. 171 (2003), p.152.

Google Scholar

[5] J. Zhang, Z. G. Liu, J. Lin and J. Y. Fang. Cryst. Growth & Design Vol. 5(2005), p.1527.

Google Scholar

[6] Q. S. Li, C.H. Feng, Q. Z. Jiao, et al.: Phys. Stat. Sol. (a) Vol. 201(2004), p.3055.

Google Scholar

[7] Q. Tang, Z. P. Liu, S. Li, et al.: J. Cryst. Grow. Vol. 259(2003), p.208.

Google Scholar

[8] Z. A. Peng and X. G. Peng: J. Am. Chem. Soc. Vol. 124 (2002), p.3343.

Google Scholar

[9] Z. A. Peng and X. G. Peng: J. Am. Chem. Soc. Vol. 123 (2001), p.1389.

Google Scholar

[10] X. Wang and Y. D. Li: Angew. Chem., Int. Ed. Vol. 41 (2002), p.4790. Fig. 4. The shape evolution of the Y4O(OH)9(NO3) nanoparticles prepared at different pH value.

Google Scholar
