Preparation of SDC Interlayer and Influence on Performances of Anode Supported Solid Oxide Fuel Cells

Wei Tao Bao; Jian Feng Gao; Guang Yao Meng

doi:10.4028/www.scientific.net/KEM.336-338.486

Paper Titles

Preparation and Electrochemical Characterization of Mn/Pb Composite Oxides for Supercapacitors
p.470

Design and Preparation of Nano-Electrodes for Dye-Sensitized Solar Cell
p.474

Preparation of Spherical Spinel LiMn₂O₄ Cathode Material for Lithium Ion Batteries
p.477

Ultra Stable Sealing Glass for Intermediate Temperature Solid Oxide Fuel Cells
p.481

Preparation of SDC Interlayer and Influence on Performances of Anode Supported Solid Oxide Fuel Cells
p.486

Fuel Cell Studies Using the CeO₂-La₂O₃ Based Electrolytes
p.490

Novel AC-MO-CSC Anode for Direct Methanol Low Temperature Ceramic Fuel Cells
p.494

Manufacturing Processes of Solid Oxide Fuel Cell Components
p.498

Electrochemical Performance of AA Size MCMB/LiCoO₂ Lithium-Ion Battery Using Three-Electrode Cell
p.502

HomeKey Engineering MaterialsKey Engineering Materials Vols. 336-338Preparation of SDC Interlayer and Influence on...

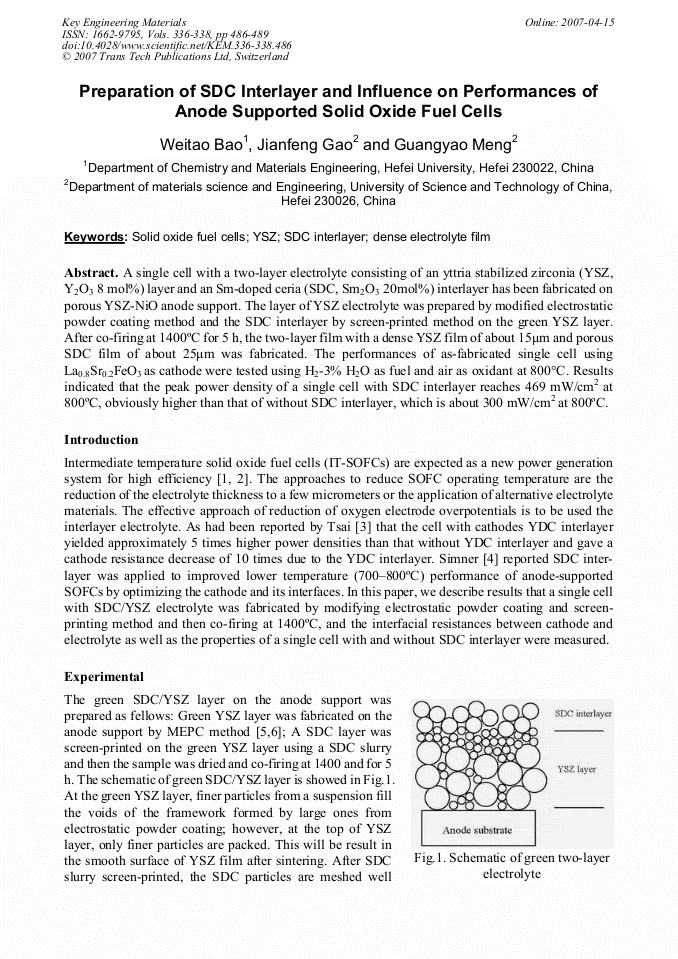

Preparation of SDC Interlayer and Influence on Performances of Anode Supported Solid Oxide Fuel Cells

Abstract:

A single cell with a two-layer electrolyte consisting of an yttria stabilized zirconia (YSZ, Y2O3 8 mol%) layer and an Sm-doped ceria (SDC, Sm2O3 20mol%) interlayer has been fabricated on porous YSZ-NiO anode support. The layer of YSZ electrolyte was prepared by modified electrostatic powder coating method and the SDC interlayer by screen-printed method on the green YSZ layer. After co-firing at 1400°C for 5 h, the two-layer film with a dense YSZ film of about 15μm and porous SDC film of about 25μm was fabricated. The performances of as-fabricated single cell using La0.8Sr0.2FeO3 as cathode were tested using H2-3% H2O as fuel and air as oxidant at 800°C. Results indicated that the peak power density of a single cell with SDC interlayer reaches 469 mW/cm2 at 800°C, obviously higher than that of without SDC interlayer, which is about 300 mW/cm2 at 800°C.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Pages:

486-489

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.336-338.486

Citation:

Cite this paper

Online since:

April 2007

Authors:

Wei Tao Bao, Jian Feng Gao, Guang Yao Meng

Keywords:

Dense Electrolyte Film, SDC Interlayer, Solid Oxide Fuel Cell (SOFC), YSZ

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B. Zhu: J. Power Sources Vol. 93 (2001), p.82.

Google Scholar

[2] J. Van Herle, R. Ihringer, N.M. Sammes, et al.: Solid State Ionics Vol. 132 (2000), p.333.

Google Scholar

[3] T. Tsai and S. A. Barnett: Solid State Ionics Vol. 98 (1997), p.191.

Google Scholar

[4] S.P. Simner, J.F. Bonnett, N.L. Canfield, et al.: J. Power Sources Vol. 113 (2003), p.1.

Google Scholar

[5] W.T. Bao, Q.B. Chang, R.Q. Yan and G.Y. Meng: J. Membrane Sci. Vol. 252 (2005), p.175.

Google Scholar

[6] W.T. Bao, W. Zhu, G.Y. Zhu, et al.: Solid State Ionics Vol. 176 (2005), p.669.

Google Scholar

[7] S. Sameshima, T. Ichikawa, M. Kawaminami and Y. Hirata: Mater: Chem. Phys. Vol. 61 (1999), p.31.

Google Scholar

[8] A. G. Bailey: J. Electrostat. Vol. 45 (1998), p.85.

Google Scholar

[9] C.H. Lee and G.M. Choi: Solid State Ionics Vol. 135 (2000), p.653. Figure . 7. A comparison of the cell performance with and without a SDC interlayer, using H2-3% H2O as fuel and air as the oxidant at 800ºC.

Google Scholar
