Superplastic Properties and Microstructure of Friction Stir Welded Joints of Zn-22wt.%Al Alloy

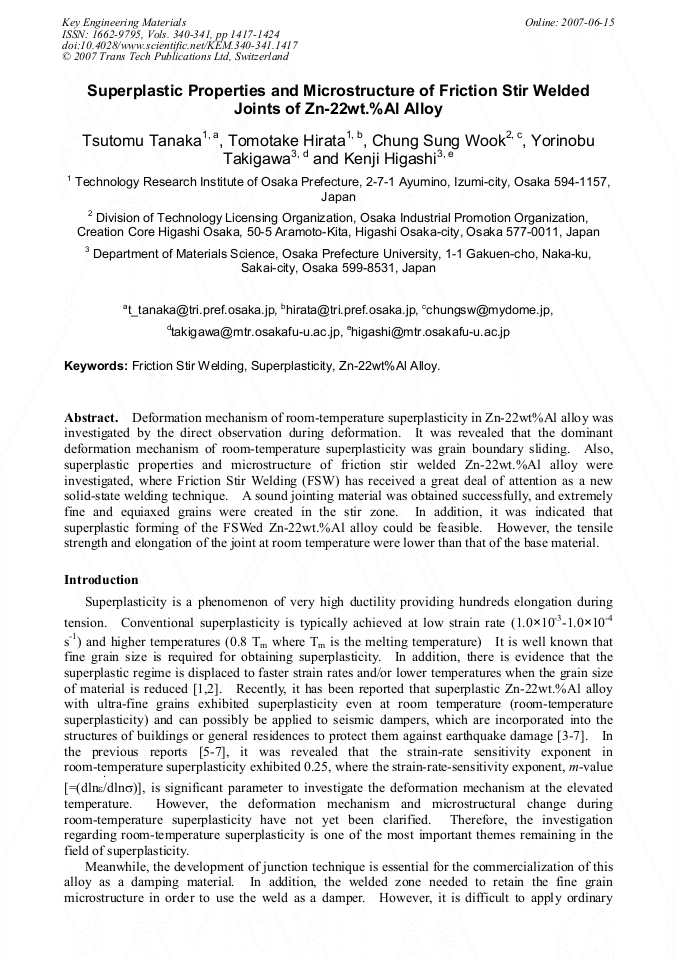

Article Preview

Abstract:

Deformation mechanism of room-temperature superplasticity in Zn-22wt%Al alloy was investigated by the direct observation during deformation. It was revealed that the dominant deformation mechanism of room-temperature superplasticity was grain boundary sliding. Also, superplastic properties and microstructure of friction stir welded Zn-22wt.%Al alloy were investigated, where Friction Stir Welding (FSW) has received a great deal of attention as a new solid-state welding technique. A sound jointing material was obtained successfully, and extremely fine and equiaxed grains were created in the stir zone. In addition, it was indicated that superplastic forming of the FSWed Zn-22wt.%Al alloy could be feasible. However, the tensile strength and elongation of the joint at room temperature were lower than that of the base material.

You might also be interested in these eBooks

Engineering Plasticity and Its Applications

Info:

Periodical:

Key Engineering Materials (Volumes 340-341)

Pages:

1417-1424

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.340-341.1417

Citation:

Cite this paper

Online since:

June 2007

Authors:

Tsutomu Tanaka, Tomotake Hirata, Chung Sung Wook, Yorinobu Takigawa, Kenji Higashi

Keywords:

Friction Stir Welding (FSW), Superplasticity, Zn-22wt%Al Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] O. D. Sherby and J. Wadsworth: Prog. Mater. Sci Vol. 33 (1989), p.169.

[2] T. G. Langdon: Metall. Trans Vol. 13A (1982), p.689.

[3] T. Tanaka, K. Makii, H. Ueda, A. Kushibe, M. Kohzu and K. Higashi: Int. J. Mech. Sci. Vol. 45 (2003), p.1599.

[4] T. Tanaka, M. Kohzu, Y. Takigawa, K. Higashi. Scripta Mater, Vol. 52 (2005), p.231.

[5] T. Tanaka, K. Makii, A. Kushibe and K. Higashi: Mater. Trans. Vol. 43 (2002), p.2449.

[6] T. Tanaka, K Makii, A. Kushibe, M. Kohzu and K. Higashi: Scripta. Mater Vol. 49 (2003), p.361.

DOI: 10.1016/s1359-6462(03)00328-2

[7] T. Tanaka, K. Higashi. Mater. Trans. Vol. 45 (2004), p.1261.

[8] W. M. Thomas, E. D. Nicholas, J. C. Needham, M. G. Murch, P. Temple-Smith, D. J. Dawes. Friction stir butt welding, International patent No. PCT/GB92/02203, GB Patent No. 9125978. 8 (1991), US Patent No. 5, 460, 317. (1995).

[9] R. S. Mishra, Z. Y. Ma, Mater. Sci. Eng. R, Vol. 50 (2005), p.1.

[10] G. Liu, L. E. Murr, C. -S. Nious, J. C. McClure, F. R. Vega, Scripta Mater. Vol. 37 (1997), p.355.

[11] Y. G. Kim, H. Fujii, T. Tsumura, T. Komazaki, K. Nakata, Mater. Sci. Eng. A Vol. 415 (2006), p.250.

[12] H. G. Salem, A. P. Reynolds, J. S. Lyons, Scripta Mater. Vol. 46 (2002), p.337.

[13] K. V. Jata, S. L. Semiatin, Scripta Mater. Vol. 42 (2000), p.743.

[14] Y. S. Sato, Y. Kurihara, S. H. C. Park, H. Kokawa, N. Tsuji, Scripta Mater. Vol. 50 (2004), p.57.

[15] R. S. Mishra, M. W. Mahoney, S. X. McFadden N. A. Mara, A. K. Mukherjee, Scripta Mater. Vol. 42 (2000), p.163.

[16] Z. Y. Ma, R. S. Mishra, M. W. Mahoney, Acta Mater. Vol. 50 (2002), p.4419.

[17] R. S. Mishra, M. W. Mahoney, Mater. Sci. Forum Vol. 357-359 (2001), p.507.

[18] A. Ball, M. M. Hatchison, Metal. Sci. J. Vol. 3 (1969), p.1.

[19] O. D. Sherby, J. Wadsworth, Prog. Mater. Sci. Vol. 33 (1989), p.166.

[20] T. G. Langdon, Metall. Trans. Vol. 3 (1972), p.797.

[21] A. K. Mukherjee, Mater. Sci. Eng. Vol. 8 (1971), p.83.

[22] T. G. Langdon, Mater. Sci. Eng. Vol. A174 (1994), p.225.

[23] P. Shariat , R. B. Vastava, T. G. Langdon, Acta Metal. Vol. 30 (1982), p.285.

[24] W. A. Rachinger, J. Inst. Metals Vol. 81 (1952), p.33.

[25] Y. Ishida, A. W. Mullendore, N. J. Grant, Trans. AIME Vol. 233 (1965), p.204.

[26] D. L. Holt, Trans. Metall. Soc. AIME Vol. 242 (1968), p.25.

[27] I. I. Novikov, V. K. Portnoy, T. E. Terentieva, Acta Metal. Vol. 25 (1977), p.1139.

[28] D. Lee, Acta Metal. Vol. 17 (1969), p.1057.

[29] N. Furushiro, S. Hori, Scripta Metal. Vol. 13 (1979), p.653.

[30] P. Shariat, R. B. Vastava, T. G. Langdon, Acta Metal. Vol. 30 (1982), p.285.

[31] P. Kumar, C. Xu, T. G. Langdon, Mater. Sci. Eng. Vol. A410-411 (2005), p.447.

[32] T. Chandra, J. J. Jonas, D. M. R. Taplin, J. Mater. Sci. Vol. 13 (1978), p.2380.

[33] P. S. Pao, S. J. Gill, C. R. Feng, K. K. Sankaran, Scripta Mater. Vol. 45 (2001), p.605.

[34] M. W. Mahoney, C. G. Rhodes, J. G. Flintoff, R. A. Spurling, W. H. Bingel, Metall. Mater. Trans. A Vol. 29 (1998), p. (1955).

DOI: 10.1007/s11661-998-0021-5

[35] Y. S. Sato, S. H. C. Park, H. Kokawa, Metall. Mater. Trans. A Vol. 32 (2001), p.3023.

[36] R. S. Mishra, Z. Y. Ma, Mater. Sci. Eng. R Vol. 50 (2005), p.1. Corresponding author: Tsutomu Tanaka E-mail: t_tanaka@tri. pref. osaka. jp.
